T-JET is the quality water pump system to dispense water from a purified water bottle.

This pump is very suitable for the locations where no tap water or home & office users who can't plumb or want to use portable water.

When a water bottle is connected to the pump system, purified water is available for use with espresso machines, instant coffee machines, ice machines, coffee or tea makers, movable sinks or any other application where bottled water is needed.

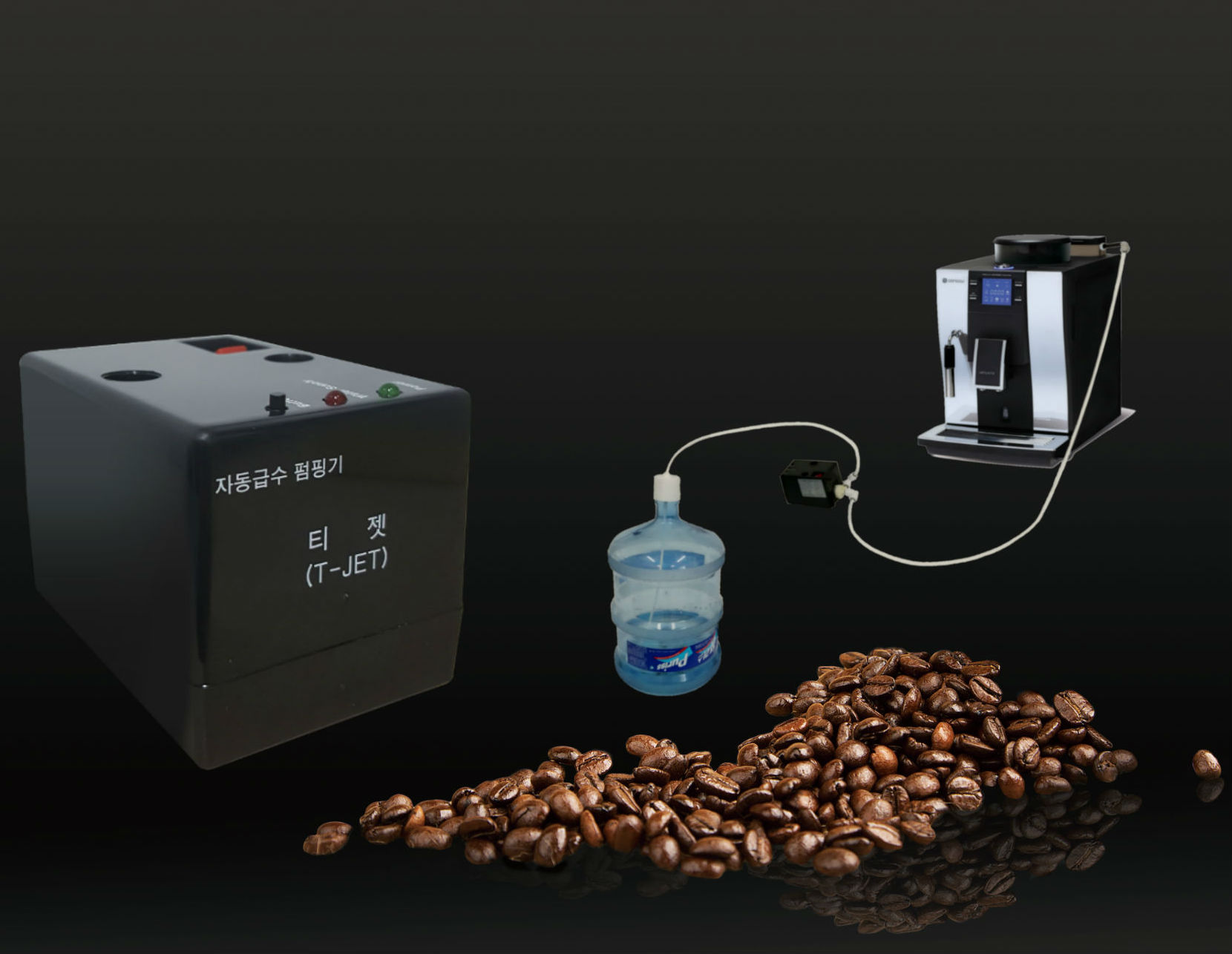

T-JET, Model TW150S is especially designed to work with fully automatic espresso machines, instant coffee machines and capsule coffee machines etc., which have removable and external water reservoir.

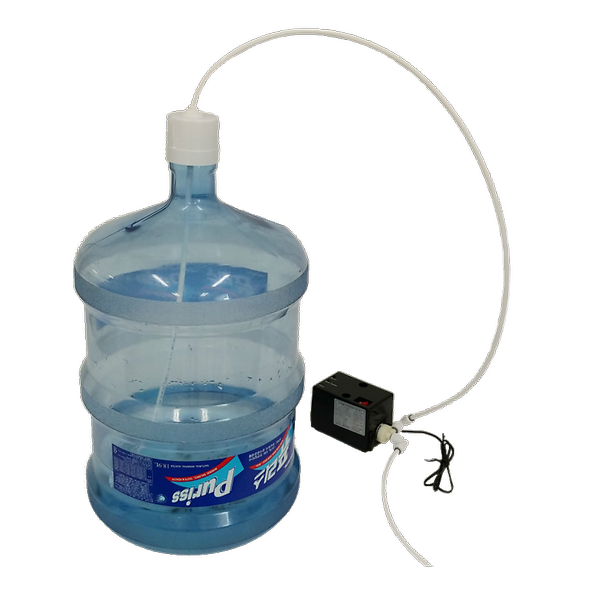

When T-JET is installed with a fully automatic espresso machine or instant coffee machine etc., and the suction wand is inserted into the water bottle, the float switch will be activated and the pump will run to deliver water to water reservoir of the machine.

Features

- Compact size for easy mounting
- Easy Installation
- Diaphragm pump

  * long life of the pump
  * built-in check valve to prevent back flow
- Quiet operation

- Easy and immediate replacement of the parts

  * seal cap / suction wand

  * float switch assembly

  * discharge tube / fitting

- Easy to make multiple inlet system with more water bottles

- Operating mechanism: pump operation by sensing water level

Product Specifications

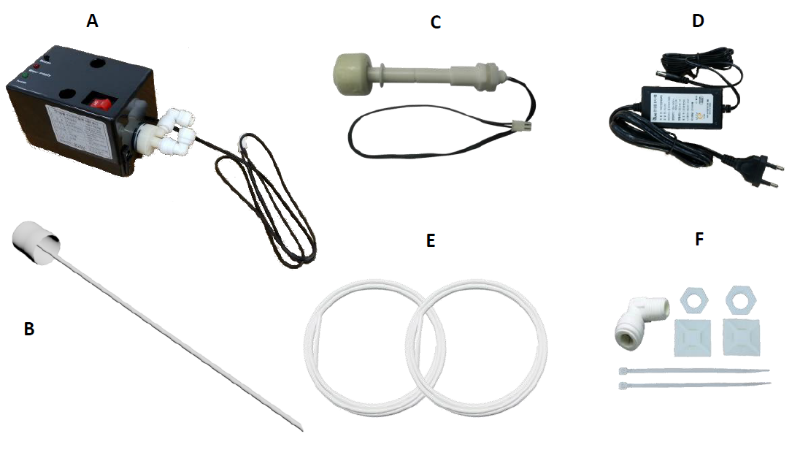

 T-jet includes the following:

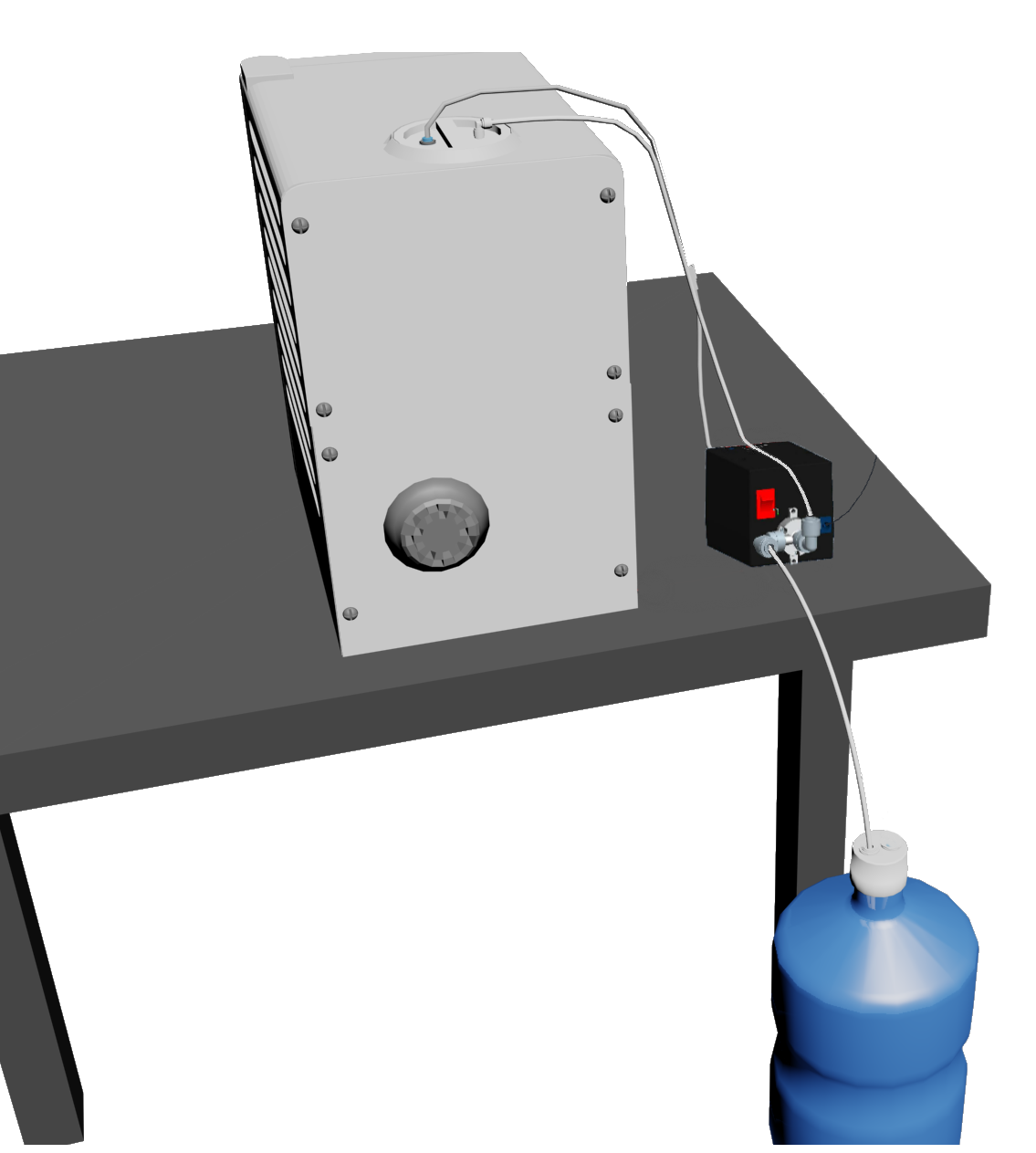

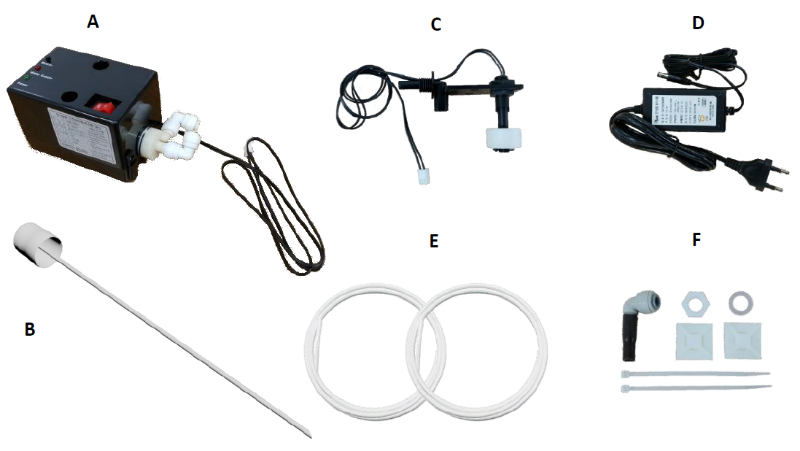

Model No.:  TW150S-100L  (float switch side mounted)

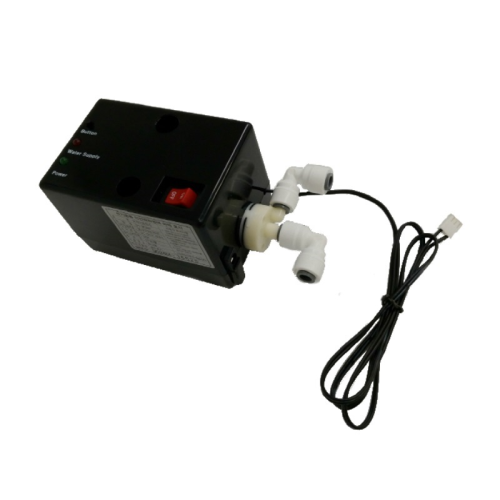

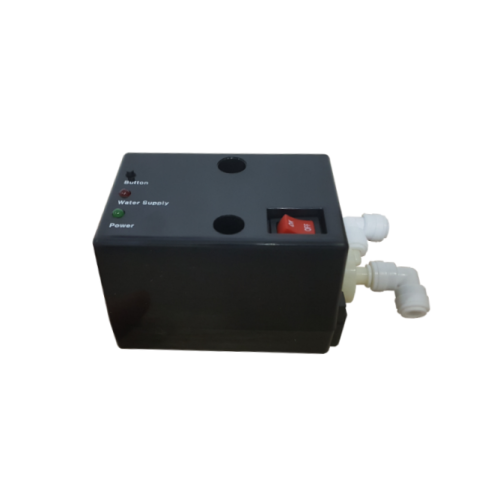

A. Control box with on/off rocker switch
B. Universal seal cap & suction wand assembly
C. Float switch assembly
D. AC/DC power adapter
E. 1M of 1/4" OD discharge tube (2 pieces)
F. Installation & fitting kit : stem elbow fitting(1/4"tube - 1/4"stem), silicon tube, nylon nut (M12), sealing washer, cable tie, cable tie mount

*Application

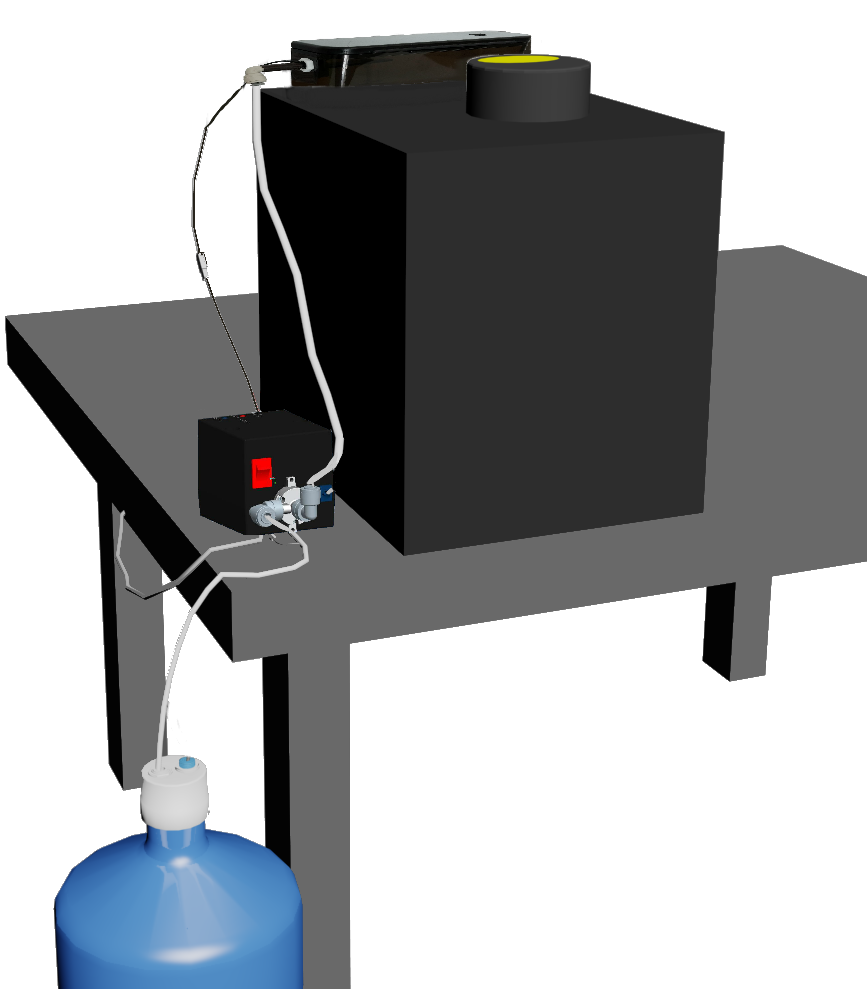

Model No.:  TW150S-200L  (float switch top mounted)

A. Control box with on/off rocker switch
B. Universal seal cap & suction wand assembly
C. Float switch
D. AC/DC power adapter
E. 1M of 1/4" OD discharge tube (2 pieces)
F. Installation & fitting kit : rigid elbow(3/8"NPTF - 1/4"tube), nylon nut(M14), nylon nut (M12), cable tie, cable tie mount

*Application

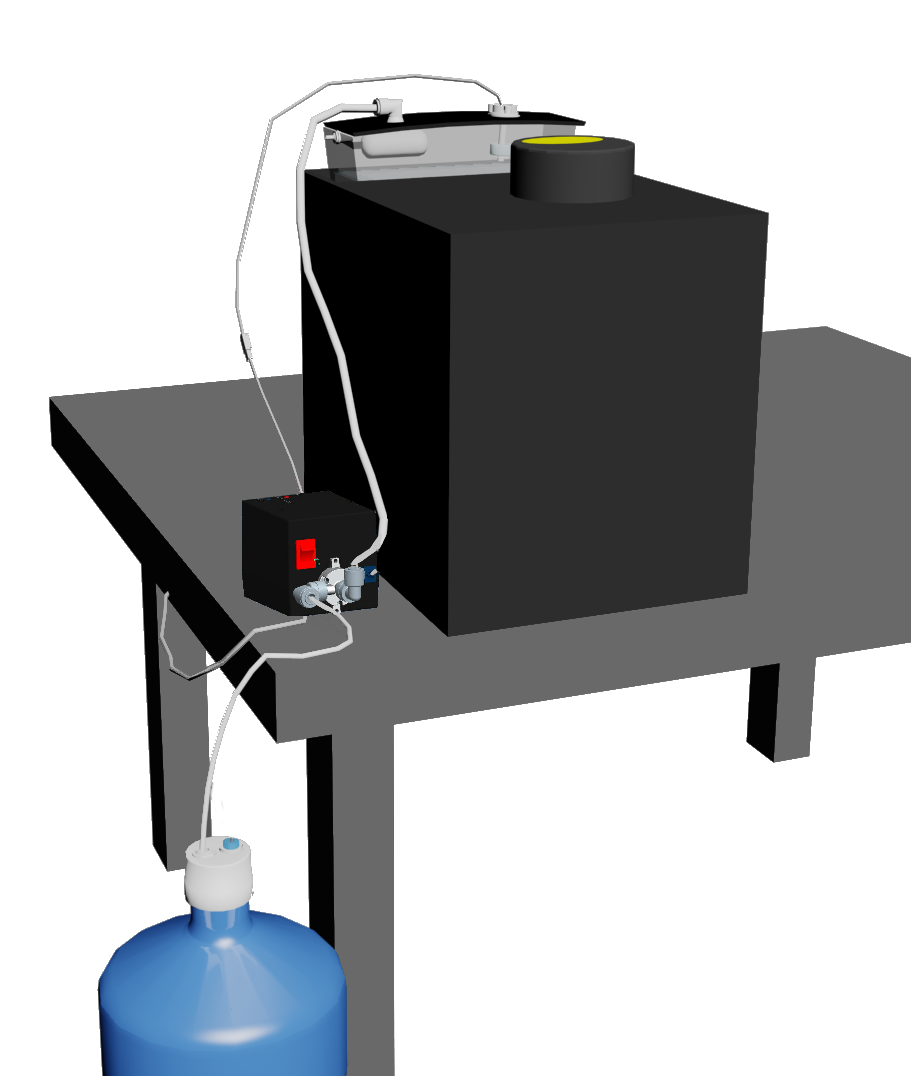

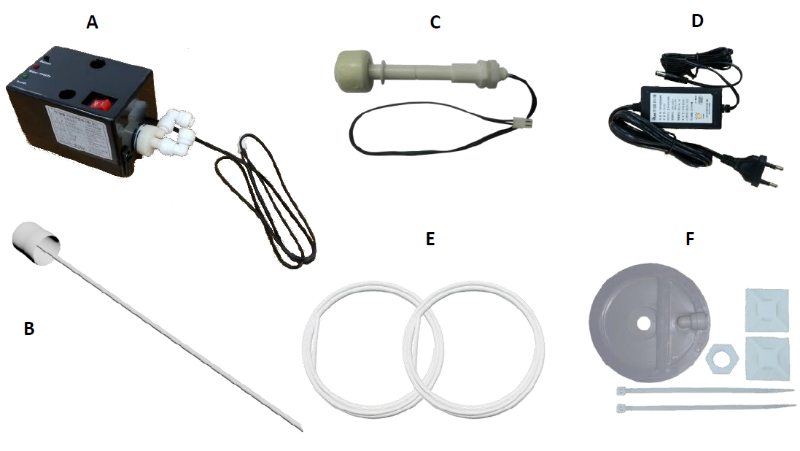

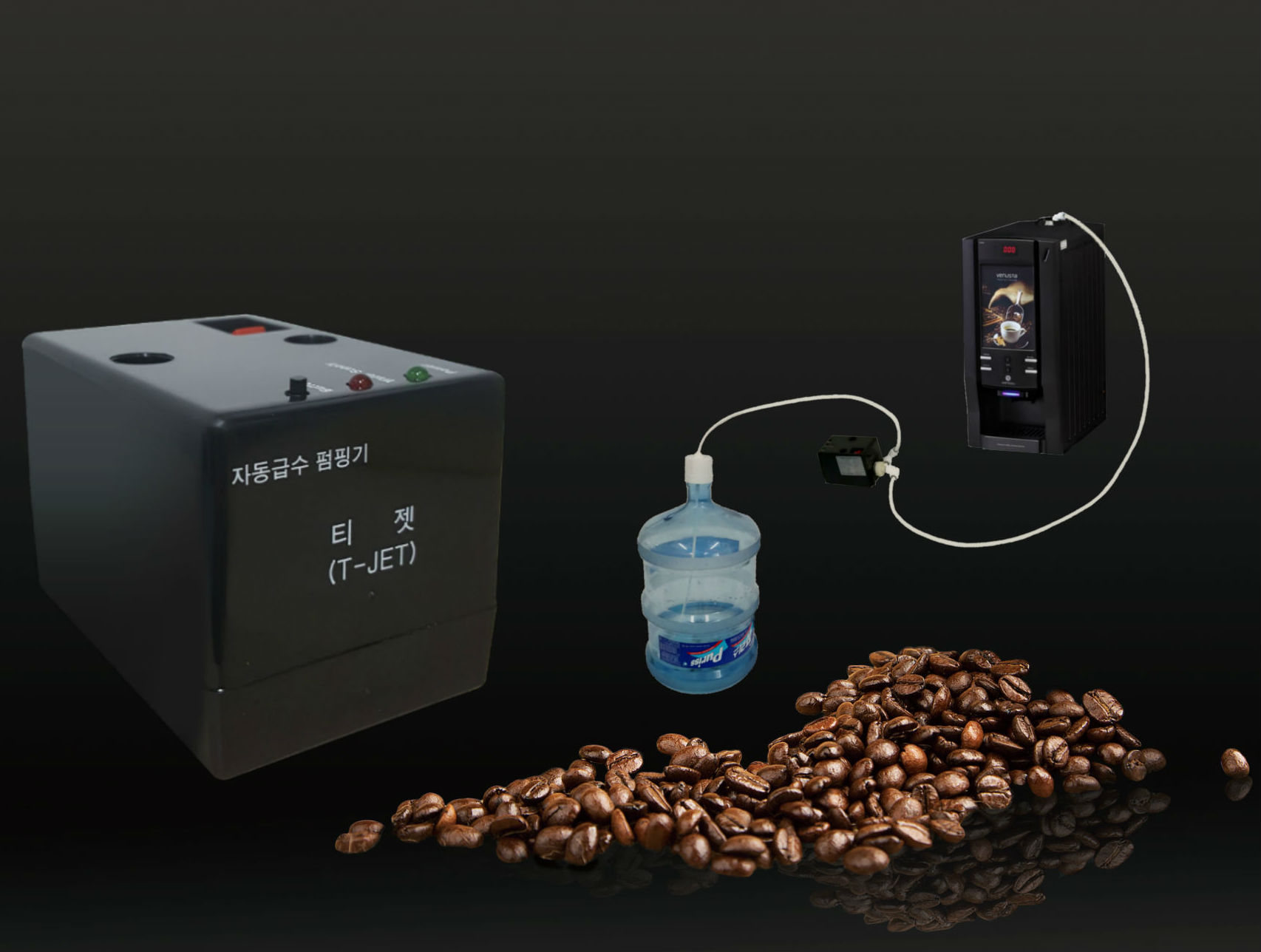

Model No.:  TW150S-300L for instant coffee machines

A. Control box with on/off rocker switch
B. Universal seal cap & suction wand assembly
C. Float switch
D. AC/DC power adapter
E. 1M of 1/4" OD discharge tube (2 pieces)
F. Installation & fitting kit : water tank cover, rigid elbow(3/8"NPTF - 1/4"tube), nylon nut(M12), cable tie, cable tie mount

*Application
