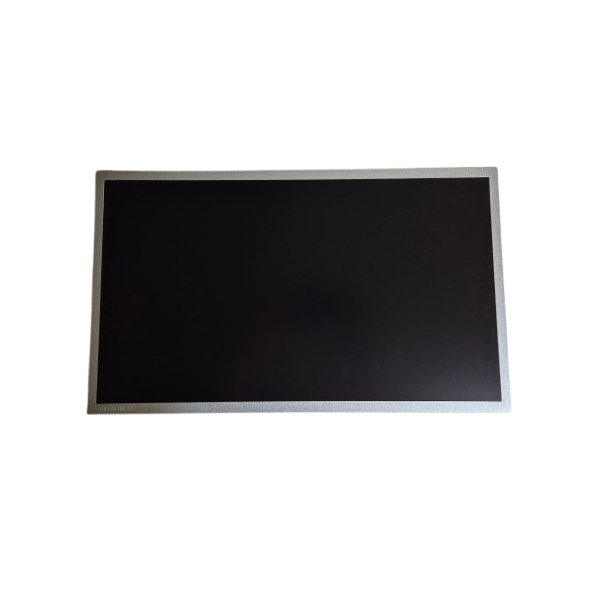

18.5 Inch High Brightness LCD Panel
This product provides a brightness of 1,000 cd/㎡.
Suitable for both indoor and outdoor use, the high-brightness LCD panel ensures optimal visibility for advertising displays and utilizes ambient light.
Maximum brightness is 1,000 cd/㎡ and uses a high-brightness LED driver.
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Units
Product Summary
• Brand name (Donggun Tech/Brand name)
• Type (High brightness LCD panel)
• Usage (For advertising)
• Material (TFT-LCD PANEL)
• Interface Type (1Channel LVDS)
• Size/Dimension (430.4*254.6*12mm)
• Weight (1.2kg)
• Color
• Operating System
• Feature
• Certification
· Shipping (KOREA FOB)
Detailed Description
&. 18.5" High-brightness LCD PANEL
> Main Features
- Ultra-high brightness achieved with enhanced eco-friendly LED BLU
- Easy to read even under sunlight, maximized clear picture quality
- Low power consumption and low heat generation structure
- Certified LED BLU extends lifespan
- Wide dimming (step-by-step adjustment of light brightness) range
> Specifications
- Active area 408.96(H)×230.04(V)
- Outline dimension 430.4(H)×254.6(V)×12.0(D)mm
- Pixel pitch 0.213mm×0.213mm
- Resolution 1920×1080
- Electrical interface 1channel LVDS
- Color depth 16.7M(8bit) colors
- Luminance, White 1,000cd/㎡
- Contrast ratio 1200:1
- Viewing angle (CR=10) 85˚/85˚
- Power consumption TTL 26.75W (TYP.)
- Weight 1.2kg(TYP.)
- Operating mode Normally white
- Surface treatment Anti-glare 25%, Hardness 3H
- Life time 30,000Hrs
- Operating temperature -30~80℃
- Storage temperature -30~80℃
