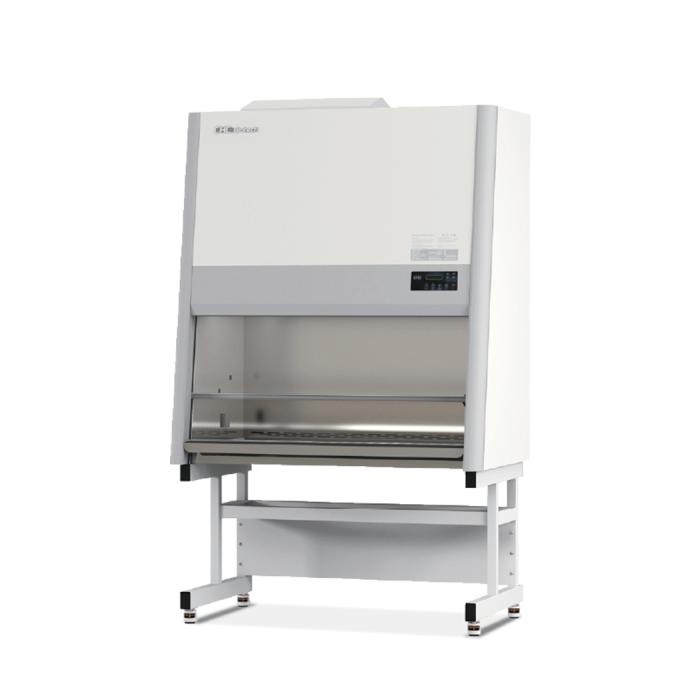

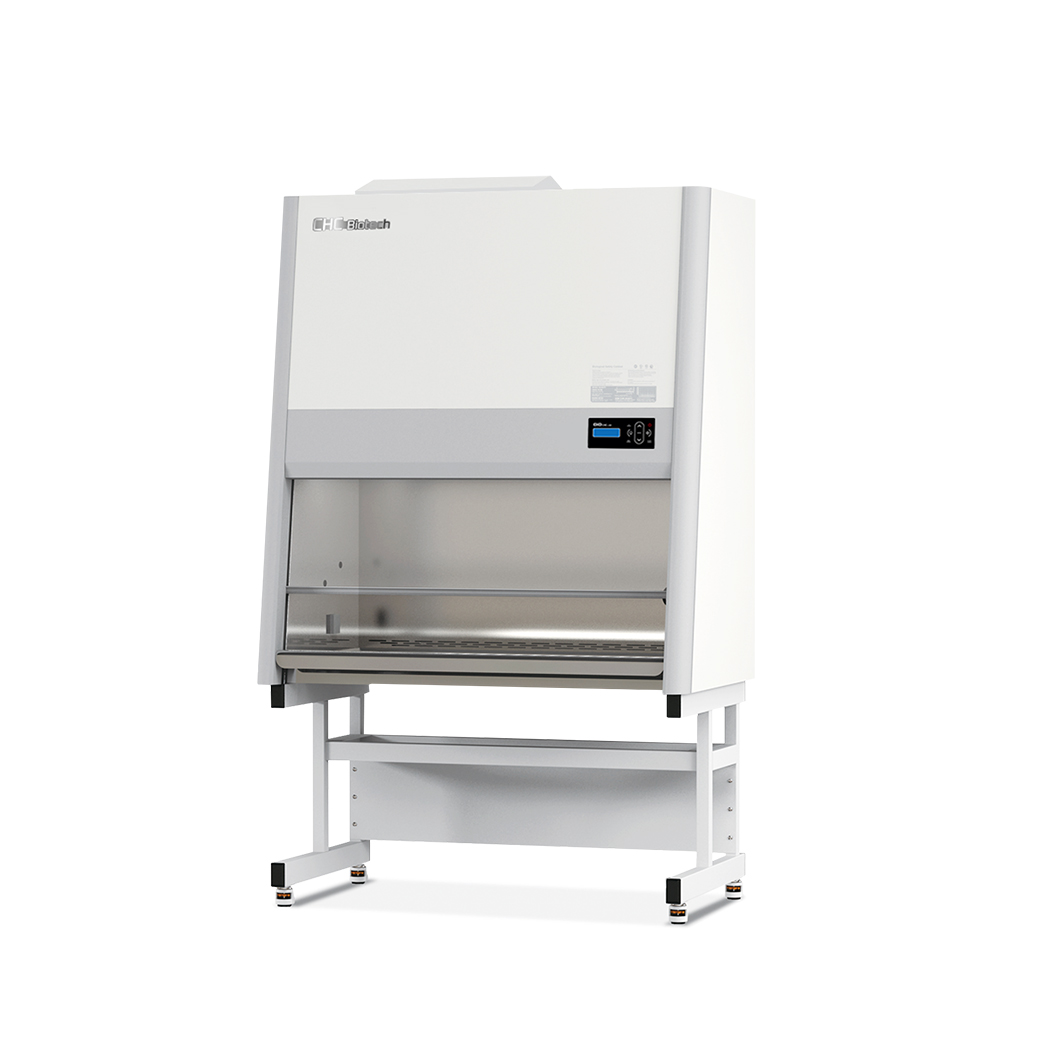

XFLO-BA 1200 Fume Hood

Request For Quotation

■ Safe and efficient airflow design – Streamlined chamber geometry and vertical sliding sash ensure uniform airflow, reduced turbulence, and consistent capture of chemical vapors for safe laboratory operations.

■ Energy-saving control system – Supports constant-volume or VAV (Variable Air Volume) operation, with optional auto-sash function to minimize unnecessary exhaust, lowering operating costs while maintaining safety.

■ Durable, chemical-resistant structure – Steel exterior with epoxy-polyester coating, tempered-glass sash, and phenolic resin panels provide long-lasting protection in corrosive environments. Epoxy resin worktop with raised edge prevents spills.

■ Fully equipped and customizable – Includes four electrical outlets, water tap, nitrogen connection with remote access, and cupsink. Multiple sizes (1200–2400 mm) and optional under-bench cabinet or blower available.

■ Global compliance and adaptability – Built to EN-14175 standards, shipped in export-grade crates with documentation. Electricals and fittings adaptable to local codes, backed by after-sales service and spare parts support.

Certification

Award

Shipping

Lead Time15 ~ 35days
Type of Freight MT
Modes of Transport EXW
Products Shipped From Busan

Payment: 140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More

Quantity: MOQ : 10 EA

Detailed Description

• Safe, stable containment by design
Streamlined airfoil and internal chamber geometry help keep airflow uniform and minimise turbulence at the face. A vertical sash with guard/stopper supports safe working height practices and consistent capture of chemical vapours during routine handling.

• Energy-savvy control options
Choose constant-volume or VAV control to maintain target face velocity with less HVAC burden. An optional auto-sash further reduces unnecessary exhaust when the hood is idle, helping lower lifecycle operating costs without compromising safety.

• Durable, chemical-resistant build
Exterior steel with powder coating, tempered-glass sash, and project-selectable linings and worktops (epoxy, phenolic, etc.) provide long service life in corrosive environments. A raised-edge worktop helps contain spills and keeps the work zone clean.

• Configurable utilities and easy maintenance
Available in multiple widths (1200 to 2400 mm) with cup-sink, valves, and outlets arranged to your protocol. Detachable service panels and clear access points simplify installation, inspection, and future upgrades. Under-bench cabinet and blower options are available.

• Project-ready and globally adaptable
Shipped in export-grade crates with documentation for smooth site acceptance. Electricals and fittings can be matched to local codes, and after-sales support and spare parts are available to keep your lab running with minimal downtime.

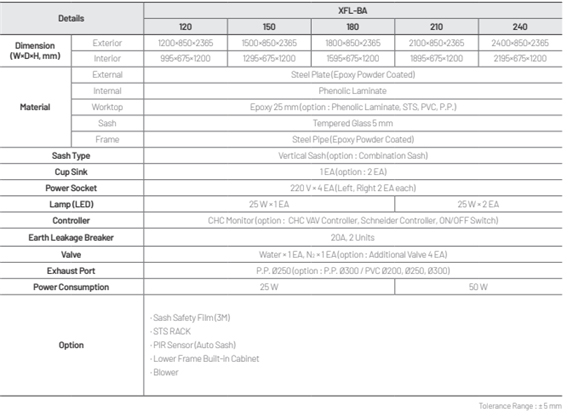

Fume Hood 1200x950x2365 mm. In compliance with EN-14175.

Includes:

Exterior with a steel epoxy-polyester painted structure and phenolic resin panels. Sliding sash.

Interior in phenolic resin with high chemical resistance.

Epoxy resin worktp with raised edge and cupsink.

Four electrical outlets, water tap and nitrogen with remote access.

Operating system: CHC Monitor
