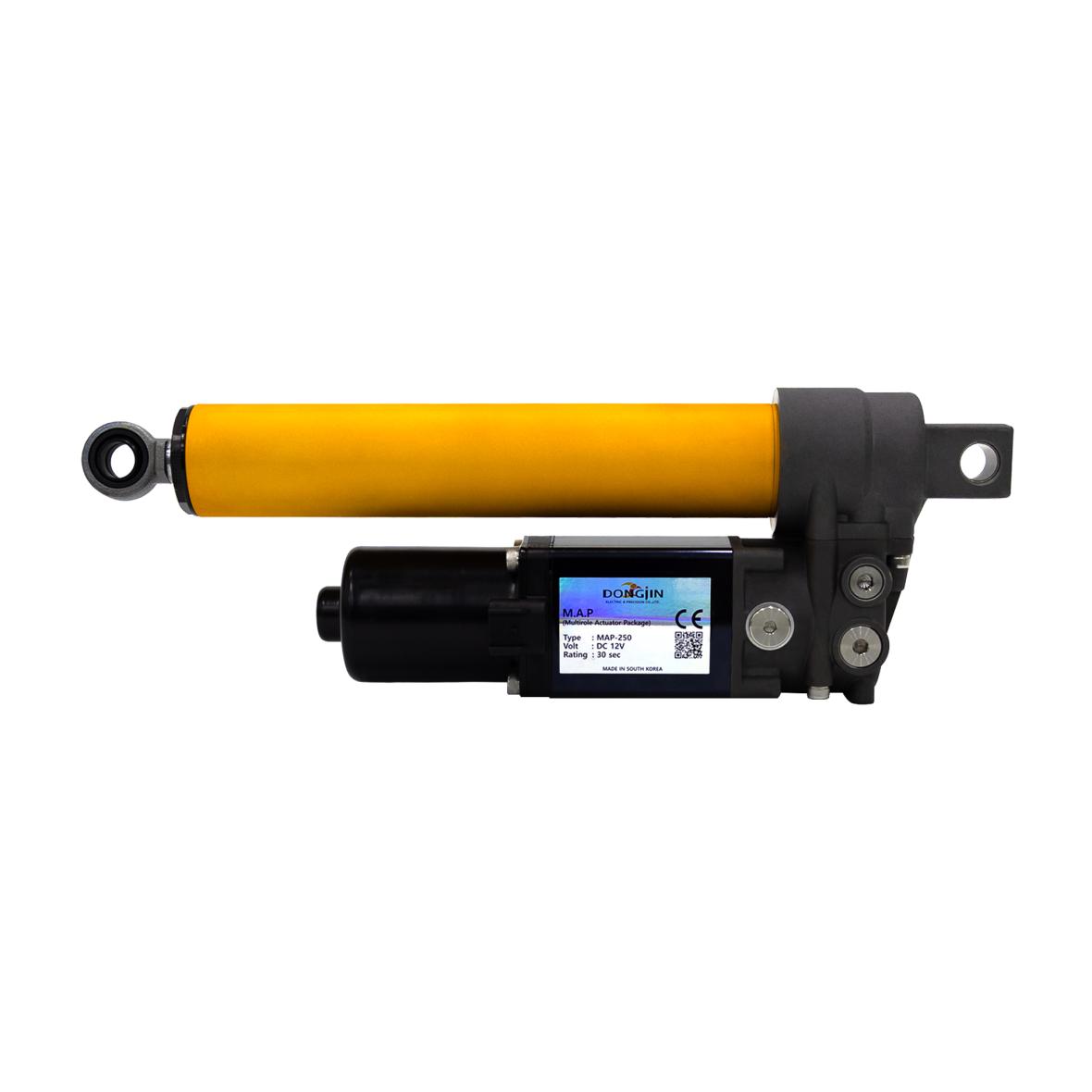

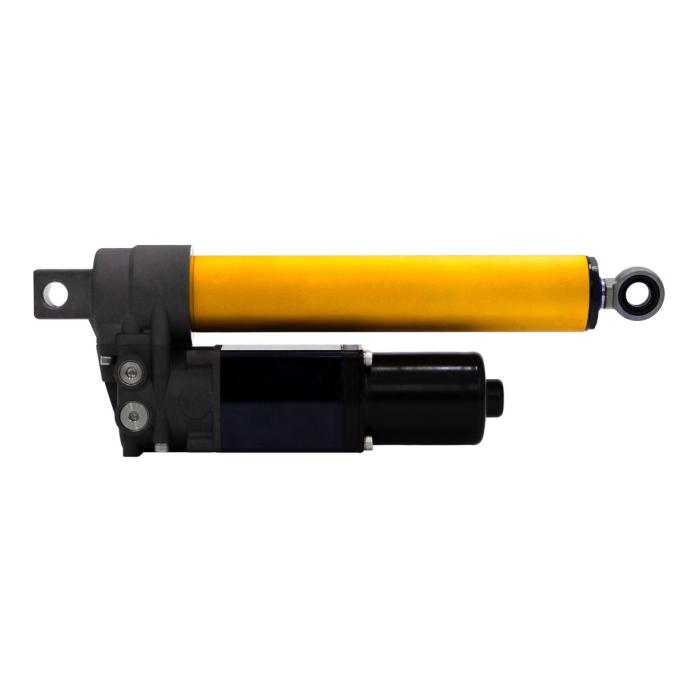

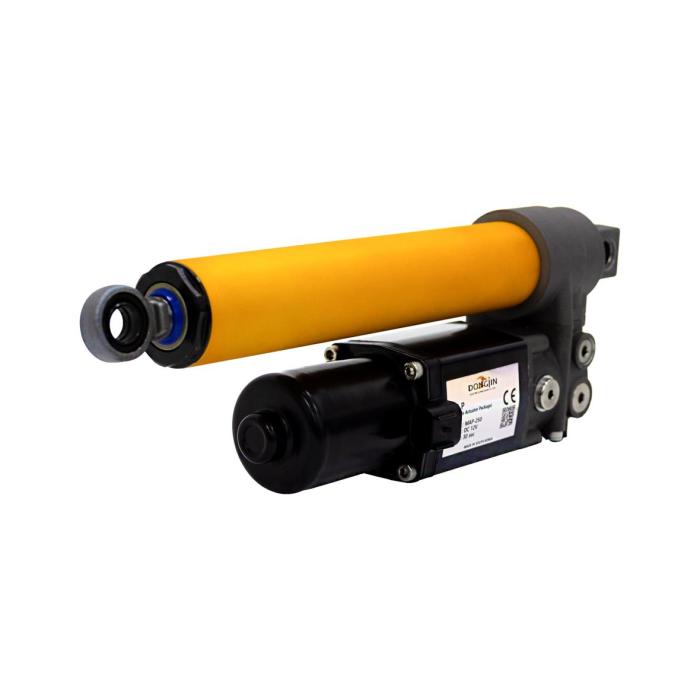

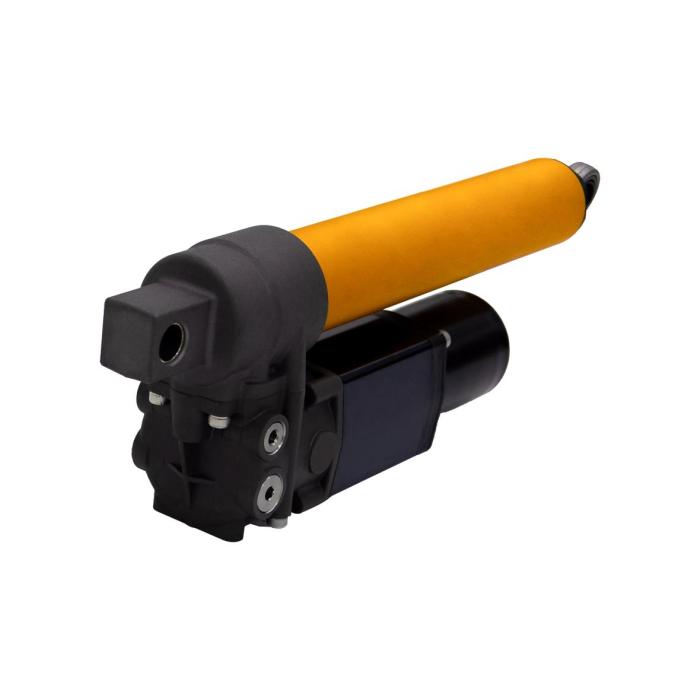

MAP(Multirole Actuator Package)
- MAP has various applications such as ATV/UTV snow plow, agriculture & Industrial equipment attachments that has not enough space to install cylinder and motor together.
- Certification
-
- Award
-
- Shipping
-
- Lead Time30 ~ 90days
- Type of Freight Proceed after consultation
- Modes of Transport Proceed after consultation
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 300 Pieces
Product Summary
MAP(Multirole Actuator Package)
• Brand name
DONGIN ELECTRIC & PRECISION CO., LTD.
• Type
Stroke(mm): 150, 200, 250 / Voltage(V): DC 12, DC 24
• Material
Aluminum Alloy + Stainless + Precision Alloy Steel
• Weight
3.5kg
• Model Numbers
1H5-603-01, 1H5-603-01A, 1H5-603-02
Detailed Description
The MAP (Multirole Actuator Package) is a compact and powerful electric actuator that converts DC motor rotation into precise linear motion through a screw mechanism (ball screw or lead screw). Designed to replace hydraulic cylinders in most applications, it delivers strong linear drive without the need for hydraulic or pneumatic systems. Ideal for ATV/UTV snow plows, agricultural machinery, and industrial equipment, the MAP offers efficient performance in space-limited installations. Stroke lengths are available from 150 mm to 300 mm to meet diverse application needs.
📦 Product Basic Information
| Item | Details |
|---|---|
| Product Composition | DC MOTOR (12V, 24V), Pump, Valve, Cylinder |
| Type | Stroke (mm): 150, 200, 250 / Voltage (V): DC 12, DC 24 |
| Material | Aluminum Alloy + Stainless Steel + Precision Alloy Steel |
| Color | Black with Yellow |
| Size/Dimension | 428 × 106 × 150 mm |
🌟 Product Features
| Feature |
|---|
| The MAP (Multirole Actuator Package) is a compact and powerful electric actuator that converts DC motor rotation into precise linear motion via a screw mechanism (ball screw or lead screw). |
| Designed to replace hydraulic cylinders in most applications, it delivers strong linear drive without hydraulic or pneumatic systems. |
| Ideal for ATV/UTV snow plows, agricultural machinery, and industrial equipment, the MAP performs efficiently even in space-constrained installations. |
| Available stroke lengths: 150 mm to 300 mm. |
📦 Packaging
| Packaging |
|---|
| Inner box in outer box on pallet |
🎯 Usage & Certification
| Age Range | 19+ |
|---|---|
| Weight | 3.5 kg |
| Warranty | Certificate Included |
💲 Price
| Unit | Price |
|---|---|
| 1 Unit |
€200 (Euro) |
⚠️ Notandum (Caution)
| Caution Details |
|---|
| 1. Use only the specified rated voltage (12V DC / 24V DC). |
| 2. Do not exceed the maximum rated load. |
| 3. Operate only within the specified stroke range (150–300 mm). |
| 4. Install and use within specified environmental conditions (temperature, IP water/dust resistance ratings). |
| 5. Ensure the actuator is mounted in straight alignment without torsion during installation. |
| 6. Follow the recommended lubrication and inspection intervals. Warranty becomes void if disassembled without authorization. |
