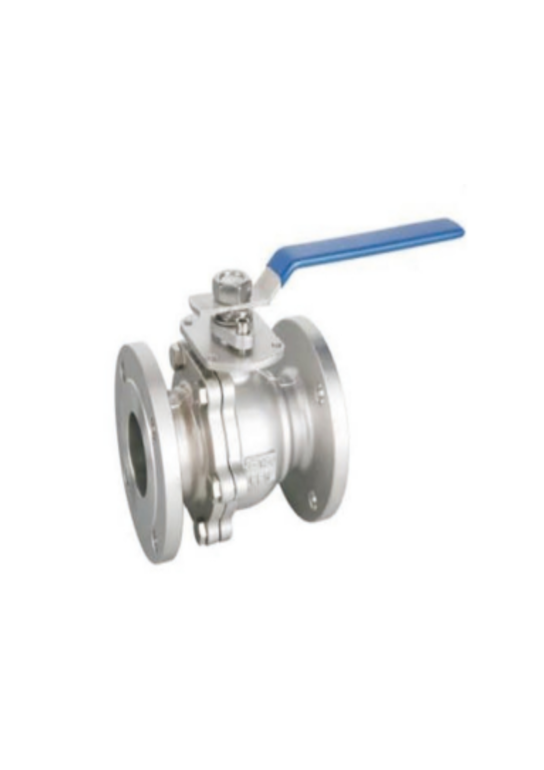

2PC API Flange Ball Valve

share

Request For Quotation
The 2PC API Flange Ball Valve is a high-pressure industrial valve designed in accordance with ASME B16.34 standards. Constructed from CF8M/CF8 or WCB material, it offers excellent resistance to corrosion and temperature. The valve is equipped with PTFE or RPTFE seats for superior sealing performance. Rated for 150LB working pressure, this valve is ideal for use in chemical, petrochemical, gas, and industrial plants.
Certification
Award
Shipping
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More
Quantity
MOQ : 10 Pieces

Product Summary

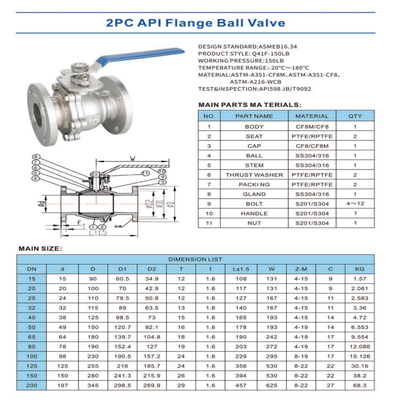

Type: 2-piece flange type Standard: ASME B16.34 / API598 Working Pressure: 150LB Material: CF8M, CF8, WCB Seat: PTFE / RPTFE Temperature Range: -20℃ to 180℃ Applications: Chemical, oil & gas, industrial pipelines

Detailed Description

The 2PC API Flange Ball Valve is a high-performance valve designed for industrial piping systems. Its 2-piece body structure allows for easy maintenance and offers durability for demanding applications. The body is made of CF8M, CF8, or WCB, ensuring excellent corrosion resistance for use with chemicals or aggressive media.

The internal ball and stem are made from SS304 or SS316 for reliable operation in high-temperature and high-pressure environments.

Seats and packing are made from PTFE or RPTFE, providing excellent sealing performance. The valve is tested to API598 standards for reliability. The ergonomic handle enables easy manual operation.

Available in sizes DN15 to DN200, this valve is suitable for use in oil refining, chemical processing, power plants, water treatment, and general plant piping systems.





** MOQ: Please inquire for minimum order quantity. **
