VG95234 Connectors: The Ultimate in Reliability and Rapid Connection!

Are you looking for a high-performance connectivity solution optimized for equipment operating in extreme environments? The VG95234 Series Circular Connectors are designed to meet the stringent requirements of military and industrial applications, boasting proven reliability and outstanding ease of use.

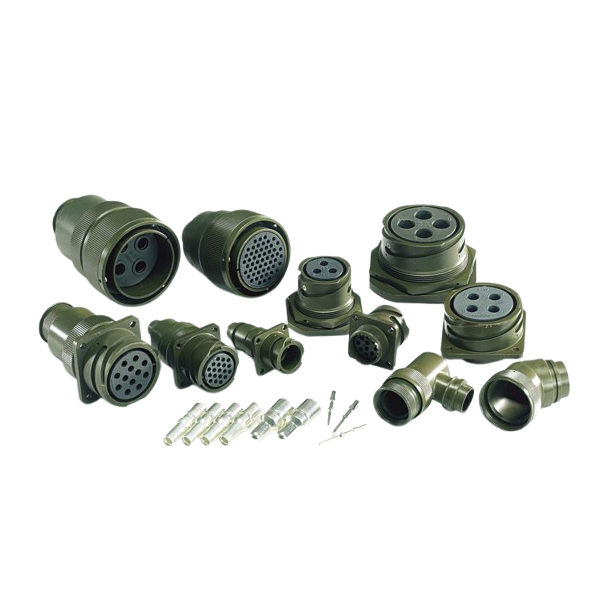

What are VG95234 Connectors?

VG95234 refers to a series of circular connectors that comply with the German military standard (VG: Verteidigungsgeräte Norm). These connectors inherit the robustness of the existing MIL-DTL-5015 (5015 series) connectors but incorporate a reverse bayonet coupling mechanism instead of a threaded one, allowing for much faster and more secure mating and unmating. They are particularly resistant to vibration and offer superior sealing, making them ideal for harsh conditions.

Key Features and Advantages that Make VG95234 Connectors Stand Out:

• Reverse Bayonet Coupling Mechanism:

  • This is the most significant feature and advantage, allowing for much faster and easier mating and unmating compared to threaded types.

  • A distinct click confirms the locked state, ensuring the operator knows a secure connection has been made.

  • It provides excellent anti-vibration performance, maintaining a stable connection even in high-vibration environments.

• Robust Environmental Resistance:

  • Constructed with aluminum alloy shells, they offer exceptional resistance to shock, vibration, and corrosion.

  • Individual wire sealing grommets and O-rings effectively prevent the ingress of dust, moisture, and liquids (e.g., hydraulic fluid, jet fuel, diesel fuel). They typically offer up to IP67 ingress protection.

  • Reliably operates across a wide temperature range from -55°C to +125°C.

• High Reliability and Durability:

  • Utilizes solder or crimp contact methods to provide robust and stable electrical connections.

  • Offers excellent durability, capable of withstanding over 500 mating/unmating cycles.

  • Some versions can withstand up to 1000 hours of salt spray testing.

• Diverse Configurations:

  • Similar to MIL-DTL-5015, they offer a variety of shell sizes (10SL to 36) and contact arrangements (from 1 to 100+ contacts), allowing for selection based on power, signal, and other requirements.

  • Mixed arrangements for both power and signal are also available.

• EMI/RFI Shielding:

  • Versions with grounding fingers and shielding features are available to protect signals from EMI (electromagnetic interference) and RFI (radio frequency interference).

• ROHS Compliant:

  • Many products comply with the latest environmental regulations (RoHS), making them environmentally friendly.
