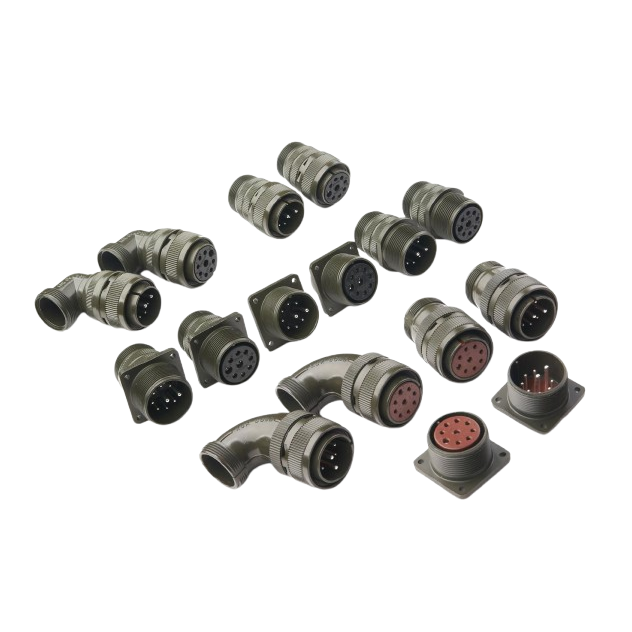

What are 5015 Connectors?

The 5015 series, officially designated as MIL-DTL-5015 (formerly MIL-C-5015), refers to a military specification standard for heavy-duty, threaded circular electrical connectors. While originally developed for military applications, their exceptional performance and robust design quickly led to widespread adoption across various commercial and industrial sectors.

Key Features and Benefits that Make 5015 Connectors Stand Out:

• Rugged Durability: Built to withstand harsh conditions, 5015 connectors feature robust aluminum alloy shells that offer excellent resistance to shock, vibration, and corrosion. They are designed for long-term reliability in challenging operational environments.

• Versatile Configurations: The 5015 series offers an extensive range of shell sizes (from 8 to 48), contact arrangements (from 1 to 100+ contacts), and insert patterns. This versatility ensures you can find the perfect connector to match your specific application's power and signal requirements.

• Ease of Mating (Threaded Coupling): The secure threaded coupling mechanism ensures a strong, reliable connection that resists accidental disengagement. The well-defined threads make mating and un-mating straightforward, even in tight spaces.

• Interchangeability and Compatibility: As a military standard, 5015 connectors from different manufacturers are designed to be intermateable. This ensures a high degree of compatibility and flexibility when sourcing or replacing components.

• Variety of Contact Types:

  • Solder Contacts: The most common type, offering a strong, permanent electrical connection. Ideal for applications where high reliability and minimal field servicing are priorities.

  • Crimp Contacts: Offer faster termination and easier field repair or modification. Available for various wire gauges.

• Multiple Mounting Styles: Available in various mounting options, including:

  • Cable Plugs and Receptacles: For inline connections.

  • Panel Mount Receptacles: For secure mounting to equipment chassis or control panels.

  • Box Mount Receptacles: For direct mounting to junction boxes or enclosures.

• Environmental Sealing Options: Many 5015 connectors feature environmental sealing (e.g., IP67 rated) to protect against ingress of dust, moisture, and other contaminants, making them suitable for outdoor or wet environments.

• High Current and Voltage Capacity: Depending on the contact size and arrangement, 5015 connectors can handle significant current loads and voltage levels, making them suitable for power distribution in addition to signal transmission.

• Wide Operating Temperature Range: Engineered to perform reliably across a broad temperature spectrum, from extreme cold to intense heat.
