Hanshin Medical Small Steam Sterilizer
Excellent characteristics of Hanshin Medical S-Class steam sterilizer
It can be used economically according to the required sterilization conditions.
The sterilized material is dried using a vacuum drying method.
In clinical pathology labs, research institutes, and test labs, liquids can be safely stored in a vertical chamber.
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 SET
Product Summary
• Brand name (Company/Brand name) Hanshin Medical Co., Ltd.
• Type (Type) Medical compact high pressure steam sterilizer
• Model Number (Model number) HS-60SL
• Usage (Use) Steam sterilizer for surgical tools and medical materials
• Material (Material) Stainless steel, plastic, etc.
• Size/Dimension (Size) Vertical IDØ340 x L719 mm, Capacity: 60 liters, Material: STS 316L
• Shelf Life (Storage period) 10 years
• Feature (Feature) A compact high pressure steam sterilizer with both a small size and a large capacity
• Warranty (Warranty period) 14 months from the date of shipment
• Certification (Certification) ISO13485
Detailed Description

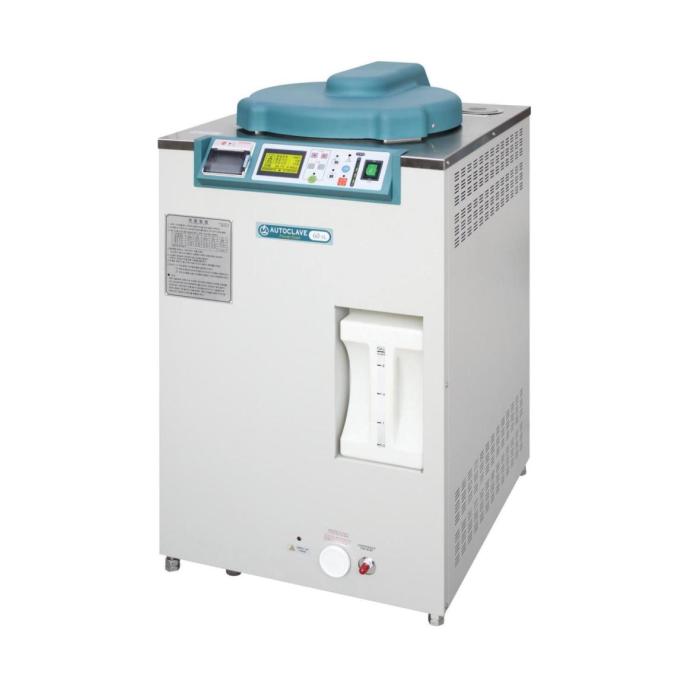

Model: HS-60SL
Chamber: Vertical IDØ340 x L719 mm, Capacity: 60 liters, Material: STS 316L
Maximum operating pressure: 2.40 bar, Minimum operating pressure: -1.00 bar, Maximum operating temperature: 138.0℃, Hydraulic test pressure: 5.13 bar
Tray: Cylindrical wire mesh basket ID 308 x L213 mm, 3ea
Water tank/recovery tank: W190 x D130 x H256 mm, Water storage capacity: 5.5 liters (based on full water level)
Operating temperature range: 121.0℃ ~ 135.0℃
Sterilization medium: Saturated steam
Air removal method: Vacuum
Air filter: Filtration capacity: 99.999% filtration of 0.3m particles
Control device: Microprocessor
Display device: Graphic LCD (LED back lighting)
Power: AC230V, 50/ 60Hz
