LUCEM Co., Ltd. is a company specializing in manufacturing medical X-Ray Tubes. Our company has been running a good business since 2012 and has a lineup of 9 products that are most compatible to the X-ray tubes widely used in most markets. We have completed CE MDR and CSA certification for all diagnostic X-Ray Tubes, including analog and DR. Our products are currently being supplied to system manufacturers and dealers in Korea, Asia, Europe, and Africa. With high quality, long warranty life, and competitive prices, we are strengthening our presence in the domestic as well as global market
Certification
Award
Shipping
  • Lead Time15 ~ 30days
  • Type of Freight Proceed after consultation
  • Modes of Transport EXW
  • Products Shipped From Gumi
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More
Quantity
MOQ : 4 Pieces

Detailed Description

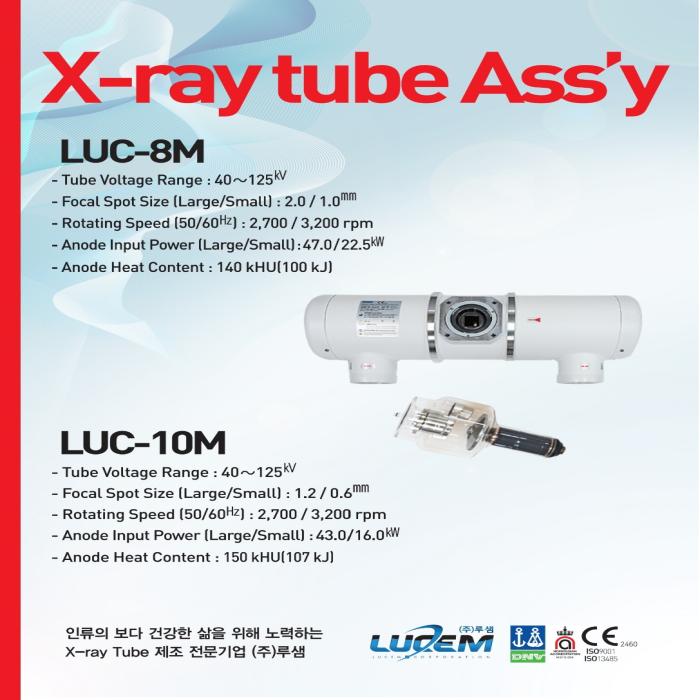

X-ray tube Ass y

LUC-8M
- Tube Voltage Range:40~125kV
- Focal Spot Size (Large/Small) : 2.0/ 1.0mm
-Rotating Speed (50/60Hz) :2,700/3,200 rpm
- Anode Input Power (Large/Small):47.0/22.5kW
Anode Heat Content:140 kHU(100 kJ)

LUC-10M
- Tube Voltage Range : 40~125kV
- Focal Spot Size (Large/Small) : 1.2 / 0.6mm
- Rotating Speed (50/60Hz) : 2,700 /3,200 rpm
- Anode Input Power (Large/Small) : 43.0/16.0W
Anode Heat Content150 kHU(107 kJ)

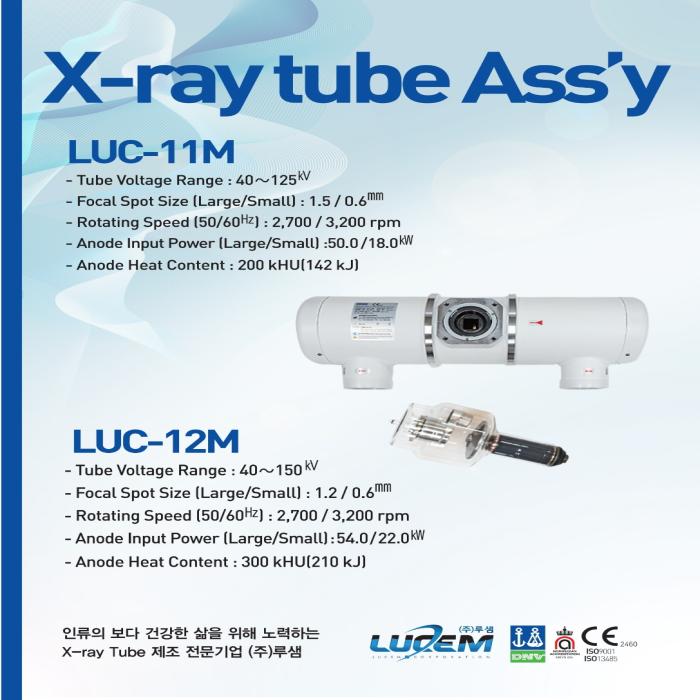

LUC-11M
- Tube Voltage Range:40~125kV
- Focal Spot Size (Large/Small) : 1.5/0.6mm
-Rotating Speed (50/60Hz)2,700/3,200rpm
- Anode Input Power (Large/Small) :50.0/18.0kW
Anode Heat Content:200 kHU(142 kJ)

LUC-12M
- Tube Voltage Range : 40~150kV
- Focal Spot Size (Large/Small) : 1.2 / 0.6mm
- Rotating Speed (50/60Hz) : 2,700 / 3,200 rpm
- Anode Input Power (Large/Small) : 54.0/22.0kW
Anode Heat Content:300 kHU(210 kJ)

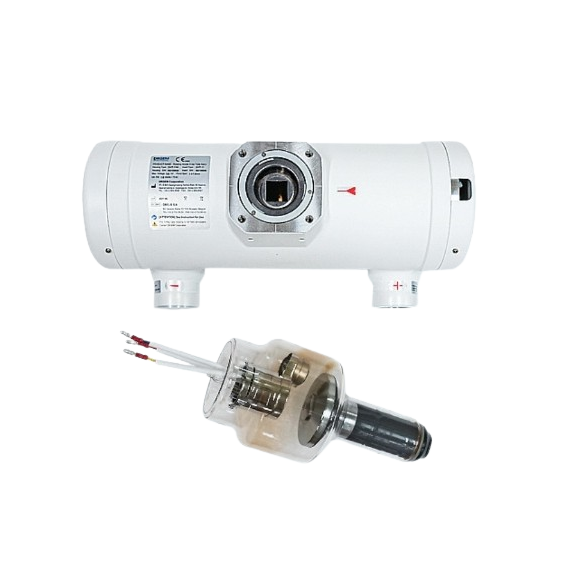

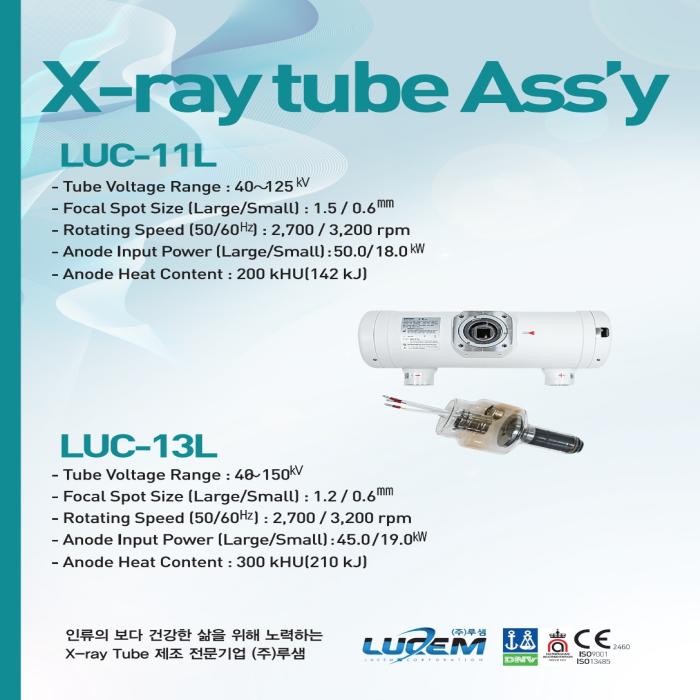

LUC-11L
- Tube Voltage Range:40~125kV
- Focal Spot Size (Large/Small) : 1.5 / 0.6mm
Rotating Speed (50/60Hz)2,700/3,200 rpm
- Anode Input Power (Large/Small) : 50.0/ 18.0 kW
-Anode Heat Content :200 kHU(142 kJ)

LUC-13L
- Tube Voltage Range : 40-150kV
- Focal Spot Size (Large/Small) : 1.2 / 0.6mm
- Rotating Speed (50/60Hz) : 2,700 / 3,200 rpm
- Anode Input Power (Large/Small) :45.0/19.0kW
-Anode Heat Content:300 kHU(210 kJ)

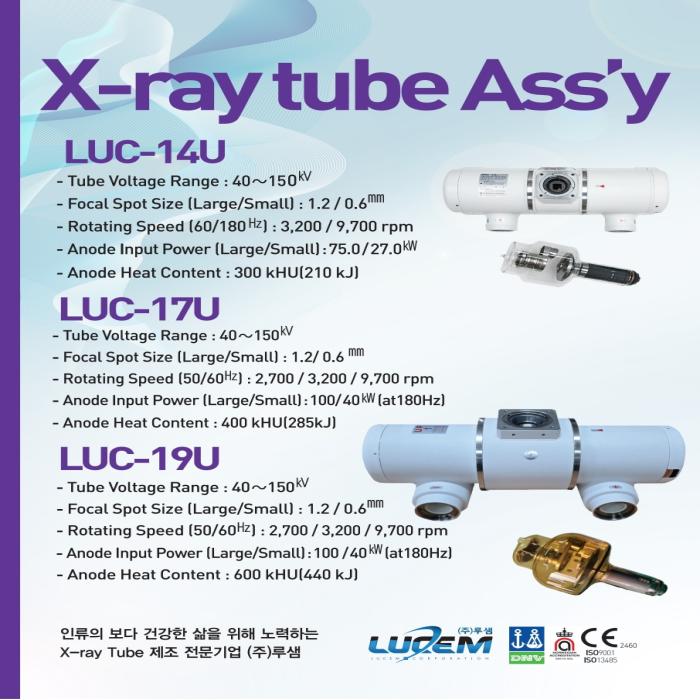

LUC-14U
- Tube Voltage Range :40~150kV
- Focal Spot Size (Large/Small) : 1.2 /0.6mm
-Rotating Speed (60/180Hz3,200/9,700 rpm
- Anode Input Power (Large/Small):75.0/27.0k
-Anode Heat Content:300 kHU(210 kJ)

LUC-17U
- Tube Voltage Range : 40~150kV
- Focal Spot Size (Large/Small) : 1.2/ 0.6 mm
-Rotating Speed (50/60Hz):2,700/3,200/9,700 rpm
- Anode Input Power (Large/Small) : 100/40kW (at180Hz)
Anode Heat Content400 kHU(285kJ

LUC-19U
- Tube Voltage Range : 40~150kV
- Focal Spot Size (Large/Small) : 1.2 / 0.6mm
- Rotating Speed (50/60Hz) : 2,700 / 3,200 / 9,700 rpm
- Anode Input Power (Large/Small): 100 /40kW(at180Hz)
- Anode Heat Content : 600 kHU(440 kJ)
