Contact and Contactless Smartcard Reader
Request For Quotation
DE-620 is a usb interface desktop reader support both contact(ISO 7816) and contactless(ISO 14443 A/B, ISO 18092, FeliCa, Mifare) card reader/writer.
- Certification
-
- Award
-
- Shipping
-
- Lead Time3 ~ 5days
- Modes of Transport EXW,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 10 Pieces
Detailed Description
PC-linked Contactless & Contact smartcad reader

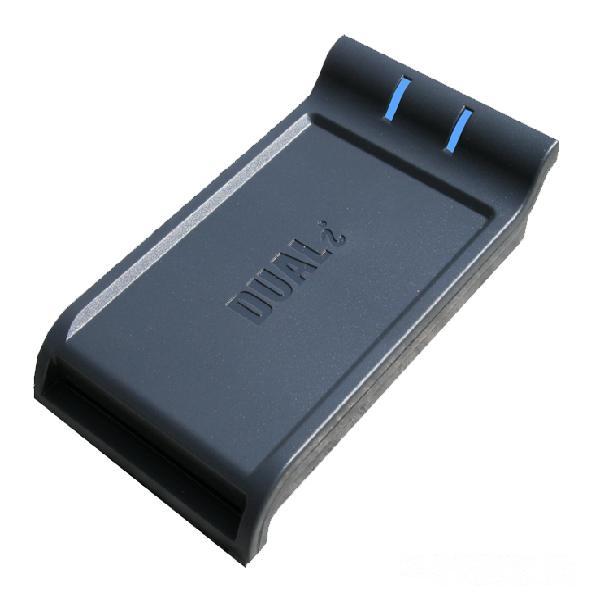

DE-620 is a NFC-enabled multiprotocol contact/contactless card interface device with modern slim design.
It shows stable and high performance, fully interoperable with other devices supporting various contactless/contact applications such as cards, tags, dongles, wristband and NFC mobiles.
Multi Protocol DUAL interface (Contactless and Contact) Reader/Writer based on 13.56MHz
Support following card interface
| Model | DE-620 | DE-620R |
| CPU | ARM 32_bit Cortex_M3(72MHz) | ARM 32_bit Cortex_M3(72MHz) |
| Host Communication | USB 2.0 | USB 2.0 |
| Card Communication | ISO 14443 A/B, Mifare, Mifare Plus, DesFire EV1 EV2, ISO 18092, NFC All tag, NFC P2P, FeliCa | ISO 14443 A/B, Mifare, Mifare Plus, DesFire, ISO 15693, my-d(Infideon), Felica |
| Input Power | DC5V, 200mA (USB POWER) | DC5V, 200mA (USB POWER) |
| SAM Interface / ISO 7816(Contact) | 1 SAM (SIM type), 1 Smart card (ID1 type) | 1 SAM (SIM type), 1 Smart card (ID1 type) |
| Program Memory | 128KBytes Flash | 128KBytes Flash |
| Data Memory | 20KBytes SRAM | 20KBytes SRAM |
| Reading Distance | Up to 4~5cm (Mifare, FeliCa, NFC, ISO 14443 A), Up to 2cm (ISO 14443 B) | Up to 10cm (ISO 15693), Up to 4~5cm (Mifare, FeliCa, ISO 14443 A), Up to 2cm (ISO 14443 B) |
| Card Speed | 106 / 212 / 424 / 848kbps | 106 / 212 / 424 / 848kbps |
| Compliance | KCC, CE, FCC, TELEC certified RoHS Compliant | KCC, CE, FCC, TELEC, certification RoHS Compliant |
