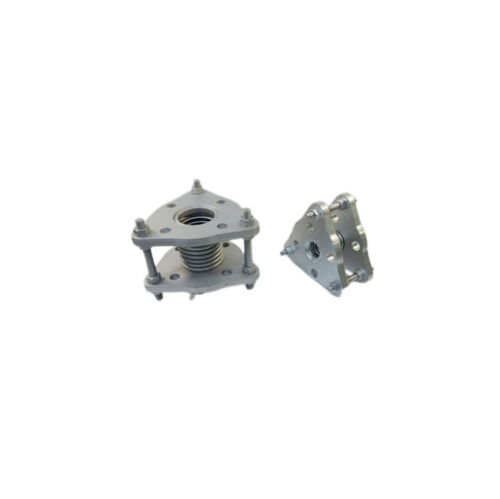

Flexible Connector - T.P.C(Tie Rod Pump Connector )

1. Preserve the stability in spite of high temperature, high pressure and negative pressure
of the inhalation part.

2. Prevent bellows from the destruction by using the tie rod without fixed point of the
discharge part.

3. Using the multi ply bellows, preserve the stability of a pipe by expansion in spite
of a little strength.

4. Using the unique washer, there is no friction noise between the tie rod and flange.

Material : Bellows - STS304 / Flange - SS400

Pressure : 10Kg/㎠, 20Kg/㎠

Temperature : 220℃

Application Fluid : Steam Water, Air, Gas, etc.
