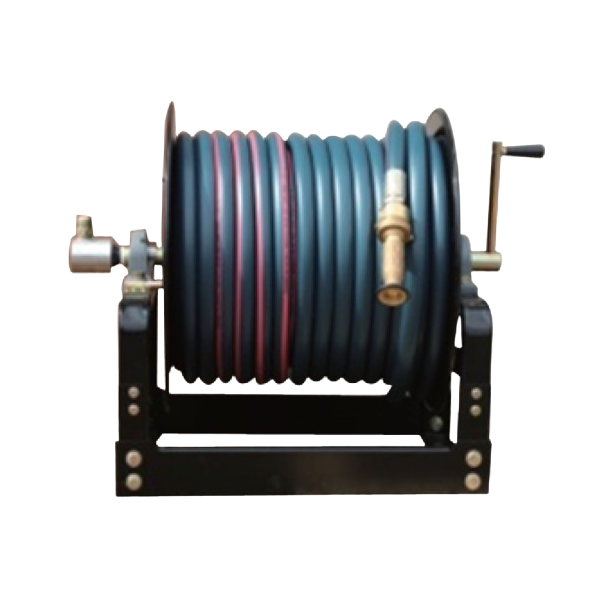

Hose Reel-'HD' Series
Request For Quotation
HOSE REEL-'HD' SERIES
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Units
Detailed Description
| For : Water,Fuel dispensing,Bulk Transfer,Fire protection,etc. | |||||||||
| • For 3/4" througf 2" I.D HOSE | |||||||||
| • Heavy duty reels designed for long lengths of hose | |||||||||
| • Reels are all steel construction and compact design for applications with crtitical space requirements. | |||||||||
| • Stainless steel reels are available when you requsted. | |||||||||
| • Permanent direct crank rewind . | |||||||||
| • Dual ball bearing support. | |||||||||
| • Roller guides is option(Specify roller position when ordering.) | |||||||||
| • Full flow shaft and ball bearing swivel. | |||||||||
| • Pressures to 600 psi (41 bar) | |||||||||
| • Temperature operating range from -20℉ (-29℃) to +175℉ (79℃) | |||||||||
| • Consult factory for other pressures & temps. | |||||||||
| • Supplied with spring actuated pin lock as standard) | |||||||||
| • Standard inlet 90° balanced pressure swivel joint | |||||||||
| • All(Outlet & inlet) connection threads is female NPT. | |||||||||
| • Other threads can be furnished and must be specified | |||||||||
| • Standard inlet, outlet riser and hub assembly are steel. | |||||||||
| • Optional bronze or aluminum swivel joint and stainless steel hub assembly | |||||||||
| and riser, are available. | |||||||||
| • Painting:powder coat. | |||||||||
| • Optional hand cart,see PAGE 7 | |||||||||
| • Type of Bevel Gear crank rewind is options(Pinion brake as standard).See below. | |||||||||
| • All 'HD' series reels are supplied without hose,hose assemblies will be quoted as you requested. | |||||||||
