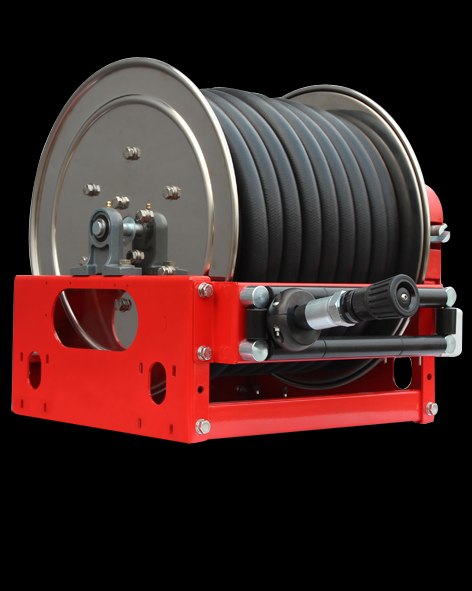

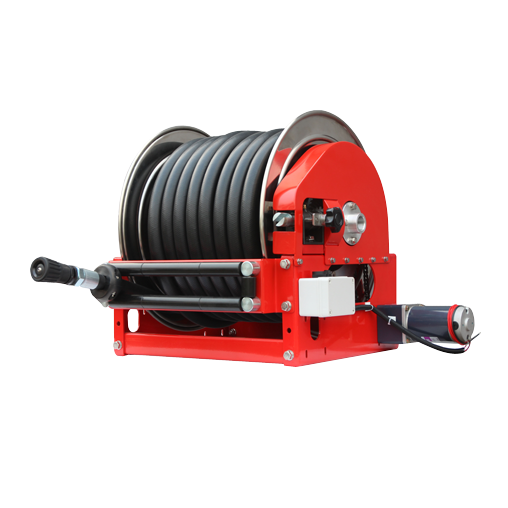

Hose Reel-'Series 2000'
Request For Quotation
HOSE REEL-'SERIES 2000'
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Units
Detailed Description
| For:Fuel dispensing,Fire protection,Water supply,Chemical transfer. | |||||||||
| • For 1/2" through 2" I.D HOSE | |||||||||
| • Heavy-duty reel for longer lengths of hose. | |||||||||
| • Reels are all steel construction and compact design for applications with crtitical space requirements. | |||||||||
| • Stainless steel reels are available when you requsted. | |||||||||
| • Full flow shaft and ball bearing swivel. | |||||||||
| • Direct crank rewind is permanently attached(Direct crank rewind is removablen when you need.) | |||||||||
| • Type of Bevel Gear crank rewind is options(Pinion brake as standard). | |||||||||
| • Chain and sprocket drive powered by electric, hydraulic, or compressed air motor. | |||||||||
| • Motor is installed outside the Reel. | |||||||||
| • Power rewind reels are not supplied with switch but can be ordered separately | |||||||||
| • Supplied with spring actuated pin lock as standard | |||||||||
| • Roller guides is option(Specify roller position when ordering.) | |||||||||
| • Pressures is available to maximum 2000 psi (138 bar) | |||||||||
| • Temperature operating range from -20℉ (-29℃) to +250℉ (121℃) | |||||||||
| • Consult factory for other pressures & temps. | |||||||||
| • Standard inlet 90° balanced pressure swivel joint | |||||||||
| • All(Outlet & inlet) connection threads is female NPT. | |||||||||
| • Other threads can be furnished and must be specified | |||||||||
| • Standard inlet, outlet riser and hub assembly are steel. | |||||||||
| • Optional bronze or aluminum swivel joint and stainless steel hub assembly and riser, are available. | |||||||||
| • Painting:powder coat. | |||||||||
| • All series 2000 reels are supplied without hose,hose assemblies will be quoted as you requested. | |||||||||
