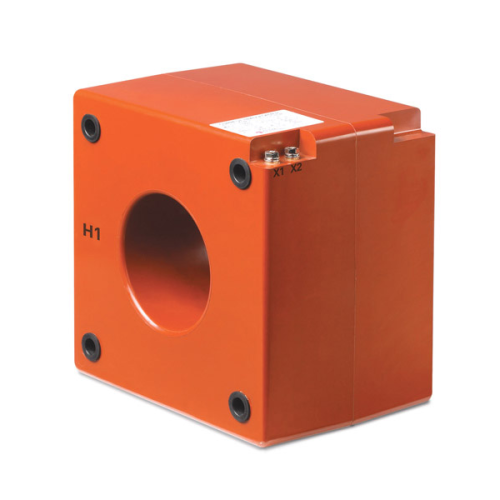

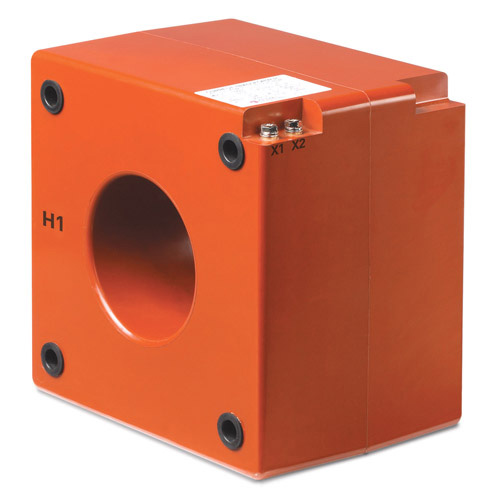

CIH-250 ANSI Standard

Relaying Application
Epoxy Molded Type
Standard : ANSI C 57.13
Frequency : 60Hz/50Hz
Insulation Class : For Cable
Rated Continuous Thermal Current : 1.33
Excitation Curve : On request


CIH-250 IEC Standard

Relaying Application
Epoxy Molded Type
Standard : IEC 60044-1
Frequency : 60Hz/50Hz
Insulation Class : For Cable
Rated Continuous Thermal Current : 1.2
Excitation Curve : On request


CIH-251304

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-251604

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Applicatio


CIH-301304


Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-301504

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-302004

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-251311

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-251611

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-301312

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-301512

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-302012

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-251118

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-251318

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-251618

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-301320

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-301520

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


CIH-302020

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.33 at 30℃ Amb. or 1.0 at 55℃ Amb
Excitation Curve : On request
Metering & Relaying Application


SCR-150 /200 /250

Epoxy Molded Type
Standard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.0, 1.33, 1.5, 2.0, 3.0 or 4.0 at 30℃ Amb
Excitation Curve : On request
Metering & Relaying Application


SCR-150W/200W/250W

Epoxy Molded Type
Stnadard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.0, 1.33, 1.5, 2.0, 3.0 or 4.0 at 30℃Amb
Excitation Curve : On request
Metering & Relaying Application
