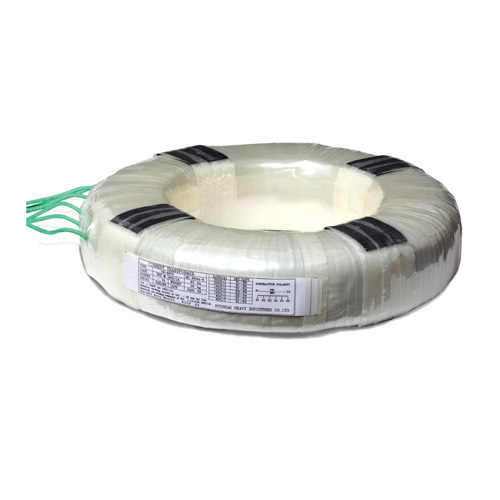

B.C.T

Bushing Type Current Transformer
By Ordering
Varnish Immersed Type
Metering & Relaying Application


B.C.T

Bushing Type Current Transformer
By Ordering
Polyester Film Insulation Type
Metering & Relaying Application

B.C.T

Bushing Type Current Transformer
Epoxy Molded Type
By Ordering
Metering & Relaying Application


SPCT-30

Split Type Current Transformer
Metering Application
Current Sensing Application
By Ordering
Case Type (Case:ABS)

SPCT-40 /80 /110

Split Type Current Transformer
Metering Application
Current Sensing Application
By Ordering
Self bonging Type
SPCT-19

Split Type Current Transformer(Sensor)
Current Sensing Application
By Ordering
Case Type (Case:ABS)
PE-25NDT

Earthed Voltage Transformer 25.8kV CGIS For KEPCO
Max. Voltage : 25.8kV
Epoxy Vacuum Molded Type
Single Phase
Over Voltage Factor : 1.2Vn Cont., 1.9Vn / 30sec., 1.9Vn / 8hr
Earthed Voltage Transformer
Tertiary Voltage

CPD-10

Current Transformer ForKEPCO
Max. Voltage : 230V
Winding Type
For Indoor
Metering Application
Double Ratio
Busbar Type
Epoxy Molded Type (Case:ABS)

CB25-600M

Current Transformer 25.8kV CGIS For Kepco
Epoxy Vacuum Molded Type
Standard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.0, 1.33, 1.5, 2.0, 3.0 or 4.0 at 30℃ Amb
Excitation Curve : On request
Metering & Relaying Application
Specification

CB25-600R

Current Transformer 25.8kV CGIS For Kepco
Epoxy Vacuum Molded Type
Standard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.0, 1.33, 1.5, 2.0, 3.0 or 4.0 at 30℃Amb
Excitation Curve : On request
Metering & Relaying Application


CBS25-2000M(R)

Current Transformer 25.8kV CGIS For KEPCO
Epoxy Vacuum Molded Type
Standard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.0, 1.33, 1.5, 2.0, 3.0 or 4.0 at 30℃ Amb
Excitation Curve : On request
Metering & Relaying Application


Current Transformer 25.8kV CGIS For KEPCO

CB25-110M

Epoxy Vacuum Molded Type
Standard : ANSI C 57.13
Frequency : 60Hz (Option: 50Hz or 400Hz)
Insulation Class : 0.6BIL 10kV full wave
Rated Continuous Thermal Current : 1.0, 1.33, 1.5, 2.0, 3.0 or 4.0 at 30℃ Amb
Excitaion Curve : On request
Metering & Relaying Application


CPT-48E1 / CNP-48

Voltage Transformer For Nuclear Plant
Max. Voltage : 0.66kV
For Indoor
Epoxy Molded Type
Single Phase
Line to Line Voltage Transformer
Standard : EMB5100


TYPE-100 / CNP-100

Current Transformer For Nuclear Plant
Max. Voltage : 0.66kV
Ring Type
For Indoor
Epoxy Molded Type
Standard : EMB5100
Frequency : 60Hz, 50kA/1s (50Hz, 50kA/2s)
Metering & Relaying Application


10Z-30E1 / CNP-10Z

Zero Phase Current Transformer For Nuclear Plant.
Max. Voltage : 0.66kV
Standard : EMB5100
Frequency : 60Hz, 50kA/1s (50Hz, 50kA/2s)
Rated Zero phase Sequence Current : Primary : 300A, Secondary : 5A
Accuracy Class : C Class
Rated Burden : 5VA
Rated Over Current Factor : n>20


CBH-850

HV Current Transformer For Nuclear Plant.
Bar or Cable Primary CT
For Indoor / 7.2-12-17.5-24 kV
For Outdoor / 7.2-12-17.5 kV
Primary current / 10000 ~ 50000A
Cast resin insulated
Ith Up to 1000 Ipn
Inner diameter / from ø850mm
