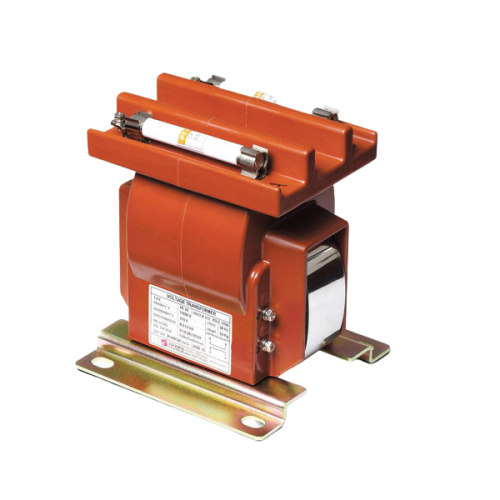

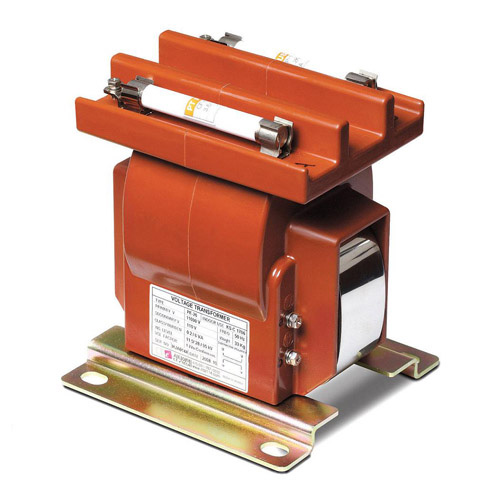

Voltage Transformer For Switchgear
- Award
-
- Shipping
-
- Modes of Transport EXW
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 10 Units
Detailed Description
Current TransFormer FOR Metering and Relaying Application
Instrument Transformer
CT for heavy electric machine
Ct for heavy electrical machine
For switchgear.
Voltage Transformer
PE-61
Max. Voltage : 7.2kV
For Indoor
Epoxy Vacuum Molded Type
Single Phase
Over Voltage Factor : 1.2Vn Cont.
Line to Line Voltage Transformer
Frequency : 60Hz (Option: 50Hz or 400Hz)
PE-61N
Max. Voltage : 7.2kV
For Indoor
Epoxy Vacuum Molded Type
Single Phase
Over Voltage Factor : 1.2Vn Cont., 1.9Vn / 30sec (Option:1.9Vn / 8hr)
Earthed Voltage Transformer
Frequency : 60Hz (Option: 50Hz or 400Hz)
PE-61NT
Max. Voltage : 7.2kV
For Indoor
Epoxy Vacuum Molded Type
Single Phase
Over Voltage Factor : 1.2Vn Cont., 1.9Vn / 30sec (Option:1.9Vn / 8hr)
Earthed Voltage Transformer
Tertiary Voltage
Frequency : 60Hz (Option: 50Hz or 400Hz)
PE-62
Max. Voltage : 7.2kV
For Indoor
Epoxy Vacuum Molded Type
Single Phase
Over Voltage Factor : 1.2Vn Cont.
Line to Line Voltage Transformer
Frequency : 60Hz (Option: 50Hz or 400Hz)
PE-62N
Max. Voltage : 7.2kV
For Indoor
Epoxy Molded Type
Single Phase
Over Voltage Factor : 1.2Vn Cont., 1.9Vn / 30sec (Option:1.9Vn / 8hr)
Earthed Voltage Transformer
Frequency : 60Hz (Option: 50Hz or 400Hz)
PE-62NT
Max. Voltage : 7.2kV
For Indoor
Epoxy Vacuum Molded Type
Single Phase
Over Voltage Factor : 1.2Vn Cont., 1.9Vn / 30sec (Option:1.9Vn / 8hr)
Earthed Voltage Transformer
Tertiary Voltage
Frequency : 60Hz (Option: 50Hz or 400Hz)
PE-63
Max. Voltage : 7.2kV
For Indoor
Epoxy Vacuum Molded Type
Single Phase
Over Voltage Factor : 1.2Vn Cont.
Line to Line Voltage Transformer
Frequency : 60Hz (Option: 50Hz or 400Hz)
PE-63N
Max. Voltage : 7.2kV
For Indoor
Epoxy Vacuum Molded Type
Single Phase
Over Voltage Factor : 1.2Vn Cont., 1.9Vn / 30sec (Option:1.9Vn / 8hr)
Earthed Voltage Transformer
Frequency : 60Hz (Option: 50Hz or 400Hz)
PE-63NT
Max. Voltage : 7.2kV
For Indoor
Epoxy Vacuum Molded Type
Single Phase
Over Voltage Factor : 1.2Vn Cont., 1.9Vn / 30sec (Option:1.9Vn / 8hr)
Earthed Voltage Transformer
Tertiary Voltage
Frequency : 60Hz (Option: 50Hz or 400Hz)
