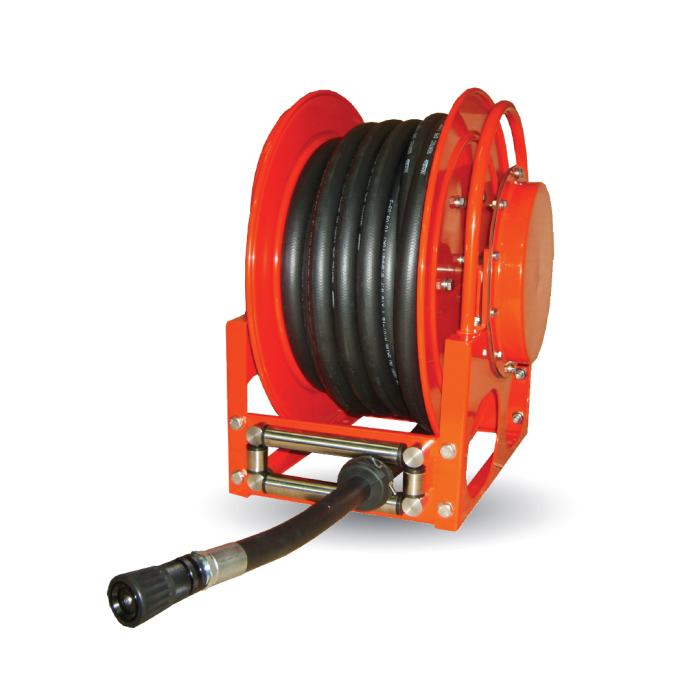

HOSE REEL SD SERIES

Certification

Award

Shipping

Payment: 140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More

Detailed Description

[ Product Diion ]

For : Air,Water,Hydraulic,Lubrication,Fuel dispensing etc.

• For 1/2" througf 1" I.D HOSE

• Hose capacity of Reel in Feet and Meters:maximum 97 feet/30meters.

• Reels are all steel construction and compact design for applications with crtitical space requirements.

• Stainless steel reels are available when you requsted.

• Rollformed channel frame for heavy-duty applications.

• Protect pipe for reel drum.

• All bolted assembly without weldings

• Dual ball bearing support.

• 4-way roller assembly.

• Non sparking ratchet assembly.

• Full flow shaft and ball bearing swivel.

• Pressures is available to maximum 10000 psi (689 bar)

• Temperature operating range from -20℉ (-29℃) to +250℉ (121℃)

• Consult factory for other pressures & temps.

• Standard inlet 90° balanced pressure swivel joint

• All(Outlet & inlet) connection threads is female NPT and matchesswibel size.

• Other threads can be furnished and must be specified

• Standard inlet, outlet riser and hub assembly are steel.

• Optional bronze or aluminum swivel joint and stainless steel hub assembly and riser, are available.

• Painting:powder coat.

• Low pressure hose reels are furnished standard with PVC.

• Medium pressure hose reels are furnished standard with S.A.E 100R1 TYPE AT one wire braid hose.

• High pressure hose reels are furnished standard with S.A.E 100R2 TYPE AT two wire braid hose.

• Constant Tension is available
