[HIFLUX] High Pressure Check Valve


Check Valve a valve to prevent the reverse flow of liquid (gas) is designed to block the flow in one direction and to promote the flow in the opposite direction.
A Ball or O-Ring is used for sealing purposes to prevent the reverse flow with 100% certainty. Both gas and liquid can be used.



* Features

- 2-pattern sealing type. (O-ring type, Ball type).
- O-ring for easy replacement and ball replacement-type check.
- Excellent corrosion resistance.
- A valve using stainless steel 316 cold material for preventing reverse flow.
- A valve that facilitates one-directional movement by blocking the reverse flow of gas or liquid.
- Cone and thread connection to prevent gas or liquid leaking.



* Pressure & Tube Size

* [HIFLUX] Check Valve Series - Ball Type

1. Check Valve Series - Ball Type Structure

As shown by the above image, when a liquid or gas flows into a flow direction (right direction), the spring is pressed by the flowing liquid and the oil passage is opened. Consequently, the fluid flows. If the fluid tries to flow in the reverse direction of the flow, the spring recovers its original shape and closes the oil passage, preventing the reverse flow of the fluid.


2. Check Valve Series - Ball Type Pressure

15000psi	20000psi
30000psi	60000psi
100000psi

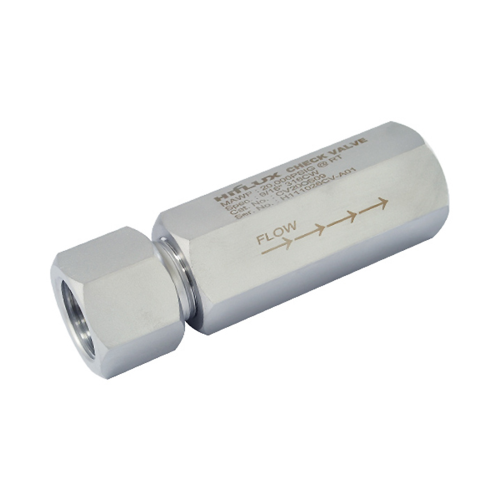

* [HIFLUX] Check Valve Series - O-Ring Type

1. Check Valve - O-Ring Type Structure

2. Check Valve - O-Ring Type  Pressure

15000psi	20000psi
30000psi	60000psi
100000psi

* Specification

* As all sizes are for reference, they can be different from actual sizes.
* Please contact us for details or send an online inquiry, We will give you a response as soon as possible.

* Other product

	High pressure needle valve			High pressure pipe needle valve
	High pressure check valve			High pressure ball valve
	High temperature valve			High pressure control valve
	Air operated valve			High pressure tube fitting
	High pressure tube			High pressure nipple
	Low pressure tube			High pressure gauge
	High pressure regulator			Back pressure regulator
	High pressure union adapter			General pressure regulator
	High pressure adapter			High pressure male adapter
	Tube support
	Safety Head			Rupture disc
	Tooling Set-Coning tool			Tooling Set-Reseating tool
	Tooling Set-Threading tool			Lok Type Fitting
	Lok Type Valve

* Ordering option

- As our products are divided into pressures of 5,500~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
