Detailed Description

hiflux fitting

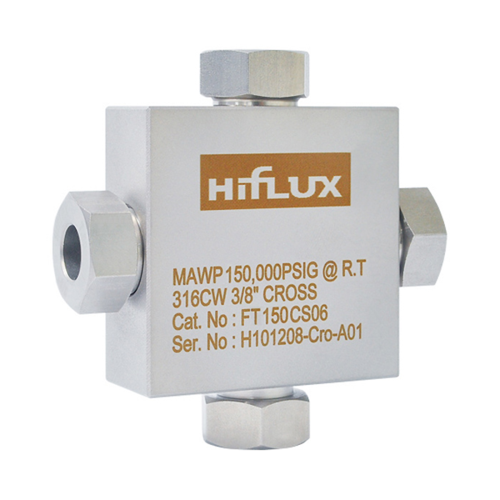

[HIFLUX] High Pressure Fitting - Cross-Type

Fitting connects tubes. Hiflux high pressure fitting with cone and thread connection ensures no leaking of gas or liquid even in high pressure. according to port directions, there are three types; elbow, tee and cross.

* Features

- 3-pattern body type. (Elbow, Tee, Cross type)
- Using stainless steel 316 cold material for excellent corrosion resistance.
- Cone and thread connection to prevent gas or liquid leaking.
- The operating temperature ranges from -423°F (-252°C) to 1200°F (649°C).
- Fitting is used for connecting tubes at high pressure and has a high-flow property and diverse sized orifices according to pressure.

* Pressure & Tube Size

Pressure(psi)	kg/f	bar	Tube Size
15000	1054	1034	1/4", 1/8", 3/8", 1/2"
20000	1406	1378	1/4", 3/8", 9/16", 3/4", 1"
30000	2109	2068	1/8", 1"
60000	4218	4136	1/4", 3/8", 9/16"
100000	7030	6894	1/4"
150000	10546	10342	3/8"

* Specification

hiflux fitting

(unit : mm)

Catalog No.	Pressure Rating (psi)	Port Type	Tube Size	Orifice Size	Dimensions						Block Thickness
Catalog No.	Pressure Rating (psi)	Port Type	Tube Size	Orifice Size	A	B	C	D (HEX)	E	F	Block Thickness
FT15CS02	15,000	H1502	1/8"	1.4	38	38	12.2	12	19	19	15.5
FT15CS04	15,000	H1504	1/4"	4	50	50	12.2	16	25	25	20
FT15CS06	15,000	H1506	3/8"	5.5	50	50	14	19	25	25	20
FT10CS08	10,000	H1008	1/2"	8.5	63	63	16.3	25.4	31.5	31.5	25
FT20CS04	20,000	H2004	1/4"	2.8	38	38	13.8	12	19	19	16
FT20CS06		H2006	3/8"	5.2	50	50	14.2	16	25	25	20
FT20CS09		H2009	9/16"	7.9	63	63	19.3	22	31.5	31.5	25
FT20CS12		H2012	3/4"	13	76	76	19.3	28	38	38	35
FT20ES16		H2016	1"	17.5	105	105	21.7	35	52.5	52.5	45
FT30CS02	30,000	H3002	1/8"	1.16	38	38	8.7	13	19	19	20
FT30CS16	30,000	H3016	1"	11.1	105	105	21.7	35	52.5	52.5	45
FT60CS04	60,000	H6004	1/4"	2.4	38	50	12.83	16	19	25	25
FT60CS06		H6006	3/8"	3.2	50	54	18.6	20	25	27	25
FT60CS09		H6009	9/16"	4.8	67	70	21.66	30	33.25	35	38
FT100CS04	100,000	H10004	1/4"	2.4	63	63	14.4	16	31.5	31.5	25
FT100CS06		H10006	3/8"	2.4	76.2	76.2	18.11	20.6	38.1	38.1	35
FT100CS09		H10009	9/16"	4.8	67	70	21.66	30	33.5	35	38

* As all sizes are for reference, they can be different from actual sizes.
* Please contact us for details or send an online inquiry, We will give you a response as soon as possible.

* [HIFLUX] Fitting Series - Cross-Type


15000psi	20000psi

30000psi	60000psi

100000psi	150000psi

* Other product

	High pressure needle valve			High pressure pipe needle valve
	High pressure check valve			High pressure ball valve
	High temperature valve			High pressure control valve
	Air operated valve			High pressure tube fitting
	High pressure tube			High pressure nipple
	Low pressure tube			High pressure gauge
	High pressure regulator			Back pressure regulator
	High pressure union adapter			General pressure regulator
	High pressure adapter			High pressure male adapter
	Tube support
	Safety Head			Rupture disc
	Tooling Set-Coning tool			Tooling Set-Reseating tool
	Tooling Set-Threading tool			Lok Type Fitting
	Lok Type Valve

* Ordering option

- As our products are divided into pressures of 5,500~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
