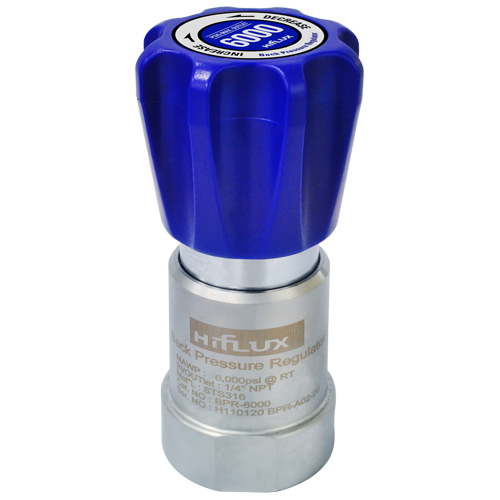

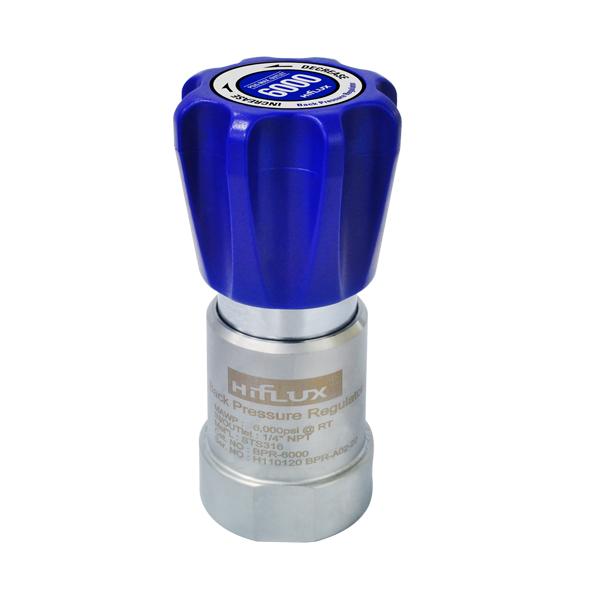

[HIFLUX] Back Pressure Regulator (Pressure Reducers Regulator)



Back pressure regulator (BPR) it is based on a contrary concept to the regulator that is generally used. Unlike the pressure regulator which is widely used to control the pressure of the outlet, the BPR steadily maintains the inlet pressure which you need. The hiflux BPR can be used for pressure of up to 15000psi (inlet pressure) and prevents water leaks by applying the type of ceiling which is suitable for the features of the gas or liquid that is being used.





I will talk about our product by giving an example. By installing the BPR, a fluid (or gas) flows from inlet to outlet.
Next, I will talk about a case where the inlet pressure is maintained at 90bar (1300psi / 91kg in other unit).

Step 1. First of all, turn the BPR handle, completely open it and then operate the pressure device.
Step 2. As the BPR is completely open, the pressure is released through the outlet and the pressure isn’t filled.
Step 3. At this time, you can see that pressure within the vessel has increased if you slowly turn the BPR handle and check the gauge.
Step 4. If you turn the handle until the pressure is 90bar and stop, the pressure within the vessel is maintained at 90bar.
Step 5. Even if the pressure device continuously works, pressure surpassing 90bar is discharged through the outlet and the pressure within the vessel is maintained continuously at 90bar.



* Features

- BPR Pressure : 15000psi
- Accuract : 1% of relief pressure range
- NACE Compatibility optional
- Six different relief pressure ranges
- Bubble-tight shut-off at all reseat pressures
- High flow Cv=0.6 model optional
- Operating & Fluid Media Temperature :-55℃ ~ 100℃

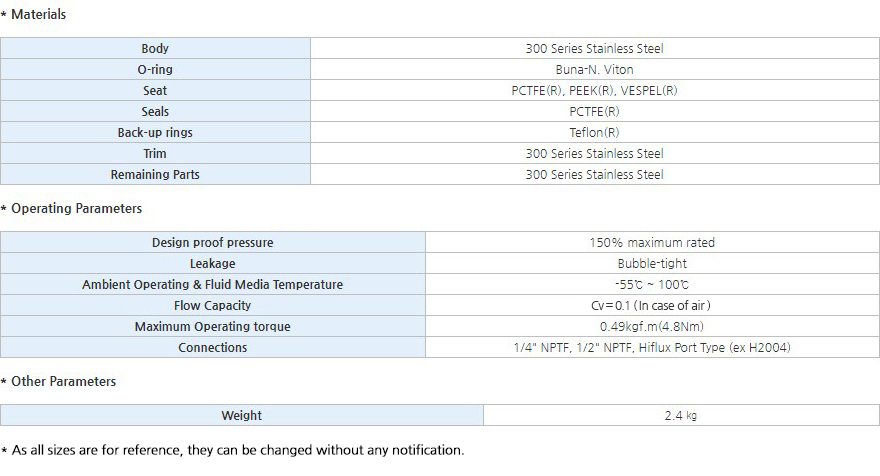

* Technical Features

* Specification

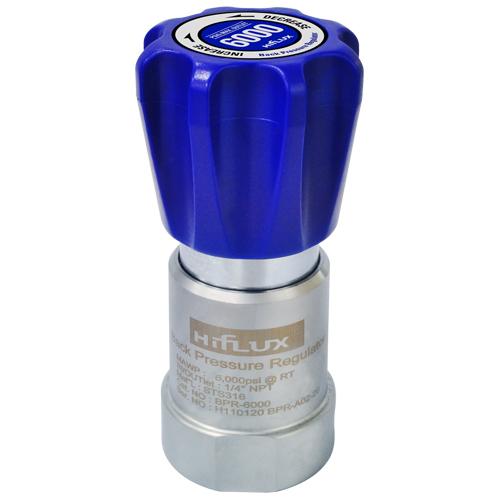

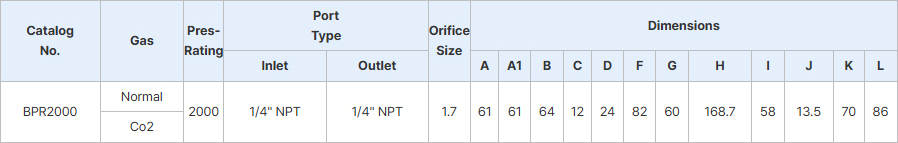

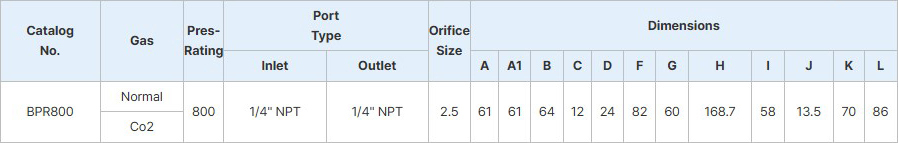

[HIFLUX] Back Pressure Regulator - 800 ~ 15000

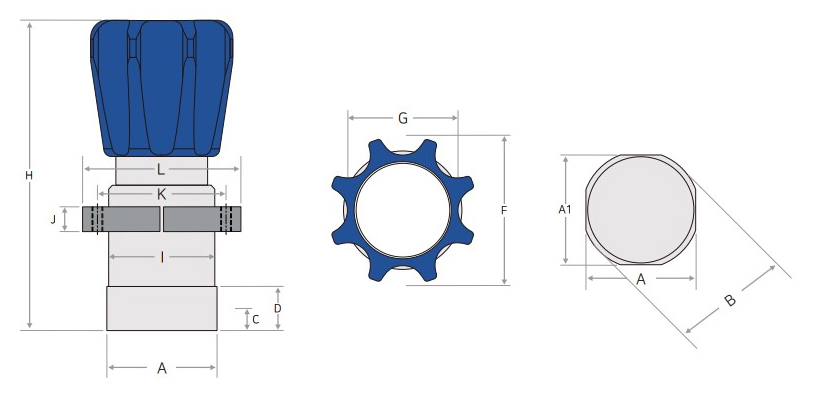

(unit:mm)

* As all sizes are for reference, they can be different from actual sizes.
* Please contact us for details or send to online inquiry, We will give you response as soon as possible.

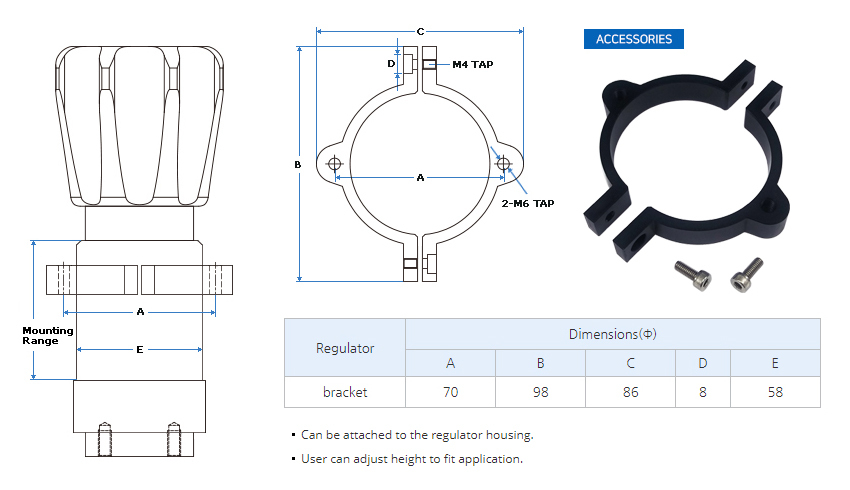

* Product bracket

* Other product


	High pressure needle valve		High pressure pipe needle valve
	High pressure check valve		High pressure ball valve
	High temperature valve		High pressure control valve
	Air operated valve		High pressure tube fitting
	High pressure tube		High pressure nipple
	Low pressure tube		High pressure gauge
	High pressure regulator		Back pressure regulator
	High pressure union adapter		General pressure regulator
	High pressure adapter		High pressure male adapter
	Tube support
	Safety Head		Rupture disc
	Tooling Set-Coning tool		Tooling Set-Reseating tool
	Tooling Set-Threading tool		Lok Type Fitting
	Lok Type Valve

* Ordering option


- As our products are divided into pressures of 15,000~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
