- Minimum air pressure required : 5kgf/cm2.
- Non-spinning stem prevents galling.
- Package designed for maximum sealing.
- Metal to metal seating type to lengthen the life of the seat.
- Regulating stem for flow control.
- Welding type.
- Max working pressure : 3000, 7500psi.
- Pipe size : 15A, 25A.
- Cold-formed stainless steel.

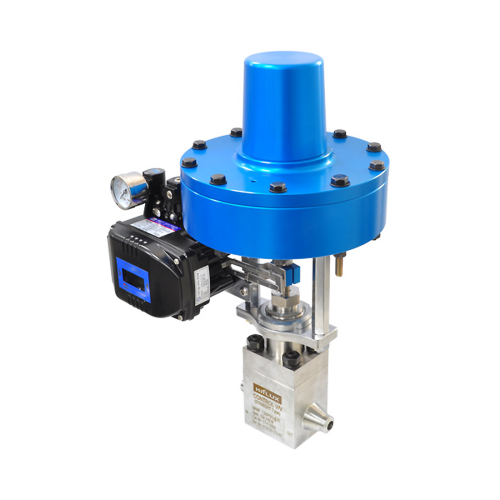

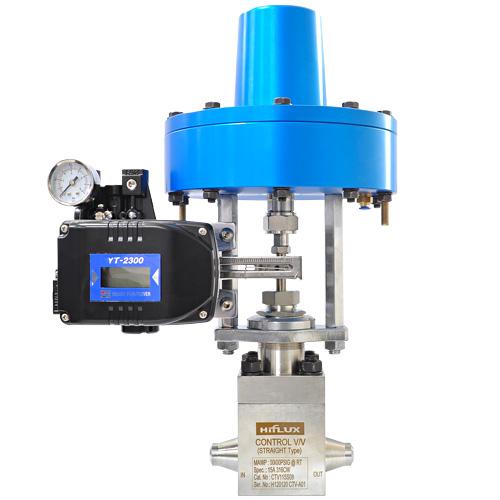

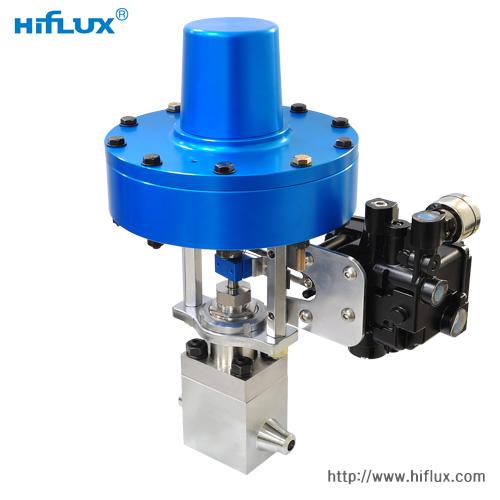

[HIFLUX] High Pressure Control Valve Series


When electricity is transferred to the positioner of the control valve, the positioner controls the flow by changing the position of the stem, which regulates the flow by opening and closing the orifice.
The hiflux control valve is designed with the properties of both gas and fluid as well as the operating pressure and temperature in mind for stability and safety in operation and resistance to corrosion.
Furthermore, because it operates at 5kgf/cm2, it can be used anywhere with air supply, while its regulating stem allows for easy flow regulation.

* Features

- Minimum air pressure required : 5kgf/cm2.
- Non-spinning stem prevents galling.
- Package designed for maximum sealing.
- Metal to metal seating type to lengthen the life of the seat.
- Regulating stem for flow control.
- Welding type.
- Max working pressure : 3000, 7500psi.
- Pipe size : 15A, 25A.
- Cold-formed stainless steel.

* Structure




* Specification



High Pressure Control Valve - 3000 ~ 7500psi

(unit:mm)




- As all sizes are for reference, they can be changed without any notification.
- Please contact us for details or send an online inquiry, we will give you a response as soon as possible.

* Other product


	High pressure needle valve		High pressure pipe needle valve
	High pressure check valve		High pressure ball valve
	High temperature valve		High pressure control valve
	Air operated valve		High pressure tube fitting
	High pressure tube		High pressure nipple
	Low pressure tube		High pressure gauge
	High pressure regulator		Back pressure regulator
	High pressure union adapter		General pressure regulator
	High pressure adapter		High pressure male adapter
	Tube support
	Safety Head		Rupture disc
	Tooling Set-Coning tool		Tooling Set-Reseating tool
	Tooling Set-Threading tool		Lok Type Fitting
	Lok Type Valve



* Ordering option


- As our products are divided into pressures of 15,000~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
