[HIFLUX] High Pressure Needle Valve


The needle valve is a hand-operated valve to control the flux of oil or gas according to the degree by which the stem is blocking the passage of oil or gas, or it can be used to open or close the flow of oil or gas.

The needle valve is remarkably safe and is highly resistant to corrosion because it was designed and manufactured by taking into account the features of oil and gas and used pressure and at different temperatures.

The life of this product has been lengthened by preventing the stem’s galling as much as possible.

This product has four body types : straight, angle, 3way/1on pressure, and 3way/2on pressure.

You can use this product according to desired options by means of pressure and port size.



* Features

- Prevents galling due to the no-rotation stem.
- Packing designed for reliable sealing.
- Metal to metal seating type to lengthen the life of the seat.
- A valve using stainless steel 316 cold material for excellent corrosion resistance.
- 'Vee' or 'Regulating' stem for flow control and shut-off.
- 4-pattern body type. (Straight, Angle, 3Way/1on, 3Way/2on pressure type).



* Pressure & Tube Size


* As all sizes are for reference, they can be different from actual sizes.
* Please contact us for details or send an online inquiry, We will give you a response as soon as possible.



* Body Types

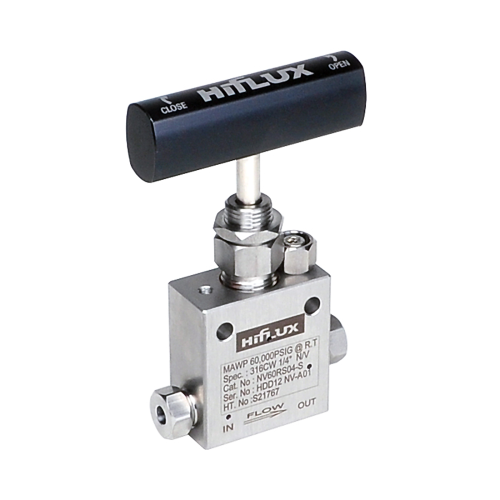

[HIFLUX] Needle Valve Series - Straight Type

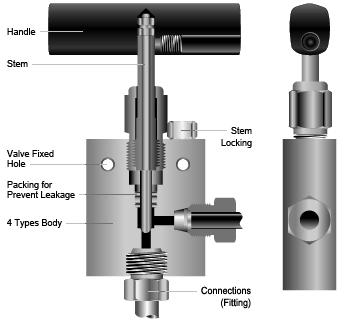

1. Needle Valve Series - Straight Type Structure


2. Needle Valve Series - Straight Type pressure


15000psi	20000psi	30000psi
60000psi	100000psi	150000psi

* [HIFLUX] Needle Valve Series - Angle Type

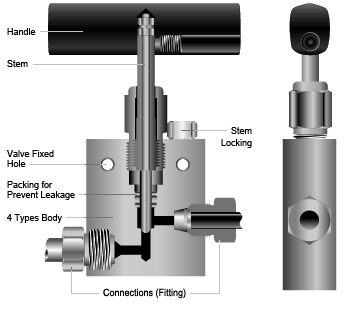

1. Needle Valve Series - Angle Type Structure



2. Needle Valve Series - Angle Type pressure


15000psi	20000psi	30000psi
60000psi	100000psi	150000psi

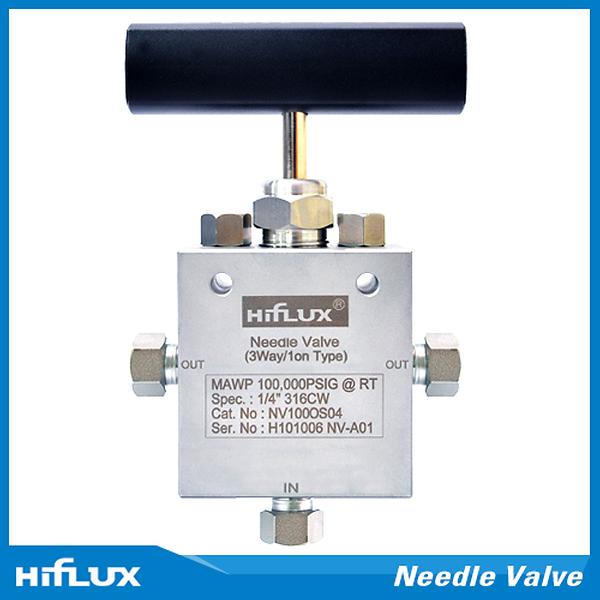

* [HIFLUX] Needle Valve Series - 3Way/1on Pressure Type

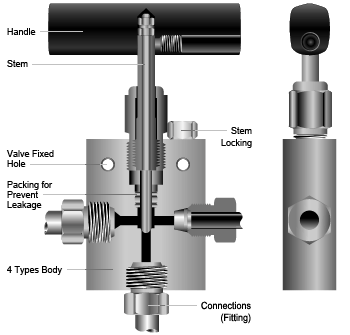

1. Needle Valve Series - 3Way/1on Pressure Type Structure




2. Needle Valve Series - 3Way/1on Pressure Type pressure


15000psi	20000psi	30000psi
60000psi	100000psi	150000psi

* [HIFLUX] Needle Valve Series - 3Way/2on Pressure Type

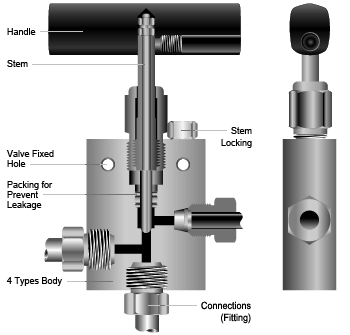

1. Needle Valve Series - 3Way/2on Pressure Type Structure



2. Needle Valve Series - 3Way/2on Pressure Type pressure


15000psi	20000psi	30000psi
60000psi	100000psi	150000psi

* Other product

	High pressure needle valve			High pressure pipe needle valve
	High pressure check valve			High pressure ball valve
	High temperature valve			High pressure control valve
	Air operated valve			High pressure tube fitting
	High pressure tube			High pressure nipple
	Low pressure tube			High pressure gauge
	High pressure regulator			Back pressure regulator
	High pressure union adapter			General pressure regulator
	High pressure adapter			High pressure male adapter
	Tube support
	Safety Head			Rupture disc
	Tooling Set-Coning tool			Tooling Set-Reseating tool
	Tooling Set-Threading tool			Lok Type Fitting
	Lok Type Valve

* Ordering option

- As our products are divided into pressures of 5,500~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
