Flexible Sprinkler Hose with Fittings

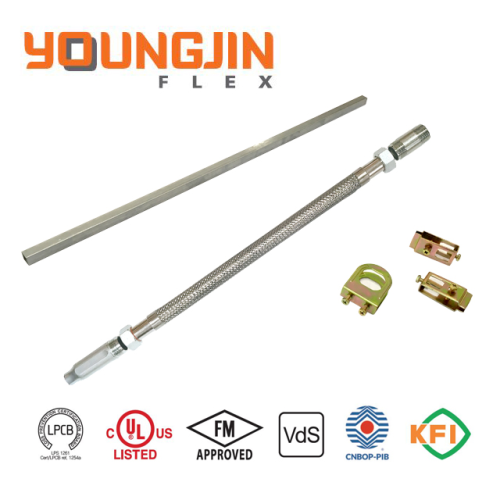

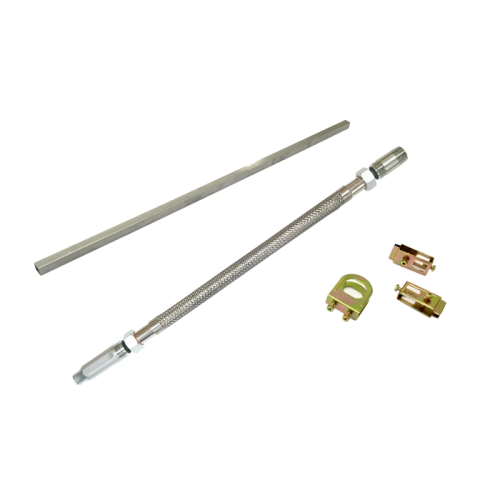

Youngjin Flex Flexible Sprinkler Hose with Fittings is an easy-to-install sprinkler drop assembly comprised with branch line adapter nipple, no corrosive stainless steel flexible hose with nuts on each end, sprinkler reducer that connected to sprinkler head and ceiling bracket assembly that securely holds the sprinkler drop system to the ceiling grid.

The features and benefits of using Youngjin Flex Flexible Drop are easy-to-intall, saving installation time and labor cost without any pipe threading, measuring and cutting, preventing any installation mistakes when following the proper installation instruction enclosed with flexible drops, and easier to test and charge the system with water before the ceiling grid is installed.

Increase installation efficiency by reducing labor cost and installation time: The speed of installation is two to three times faster than traditional fitting methods of installing sprinkler drops.

Increase efficiency in work flow by eliminating the traditional methods of installing sprinkler drops with no measuring and cutting. It is not necessary to use the traditional methods of installing sprinkler system, if an installer needs to adjust the level and alignment of sprinkler system and location. It is simply bent and maneuvered around ducts and trays in congested spaces.

No need of heavy of special equipment to install the flexible sprinkler drops and save the cost associated with installation by elimnating pipe wastage - which comes from measuring, threading and cutting of pipes.

Easy-To-Install: Since flexible sprinkler drops come with fully assembled system of flexible sprinkler drops that connect from branch line to sprinkler head.

Corrosion-resistant materials by applying stainless steel 304 grade onto flexible drops

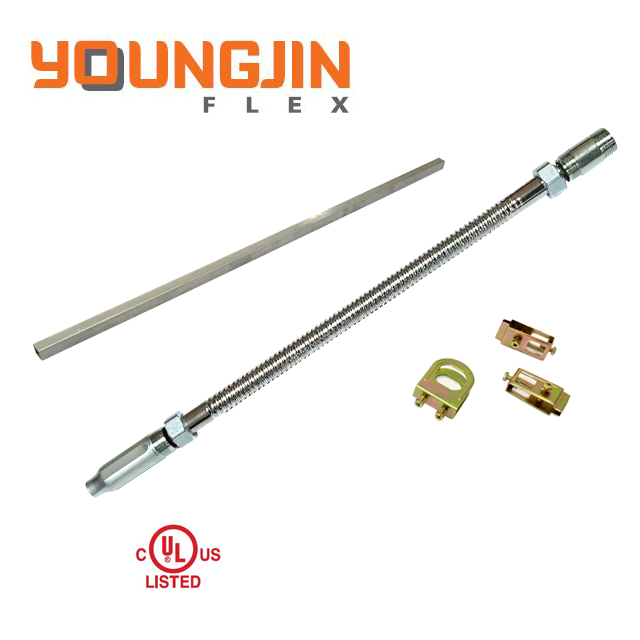

TYPE :  Braided, Unbraided

SIZE :  700mm, 1000mm, 1200mm, 1500mm, 1800mm

PRESSURE : 200PSI

INLET : 1" (BSPT or NPT)

OUTLET : 1/2", 3/4" (BSTP or NPT)

APPROVAL : UL, FM, LPCB, VdS, CNBOP, KFI
