A Method of Construction for Injection

1. Crack and leakage condition inspection

• Check the process procedure after finding the thickness, width and depth of crack and leakage condition of the structure

2. Drilling Operation

• Drill directly into crack section if the thickness of concrete is thinner than 10cm. For the thickness of 10cm~50cm, drill it with 45 degree angle by keeping a distance of 1/5 of concrete thickness. Make sure it penetrates the crack section. If the thickness is over than 50cm, keep the distance of 20cm~30cm and drill it with 45 degree angle until it penetrates crack section. And keep drilling by maintaining the fixed interval. (5 holes per 1 meter. Drill it in zigzags)

3. Packer Installation

• Clean the inside of drilled holes with compressor. Make sure that rubber sleeve of packer and cutting line of tightening nut should be put into the inside of concrete surface when installing. Tighten the packer completely by using the T-box. (Packer might be damaged if you tighten it too strongly)

4. Injection Operation

• Inject the urethane water stopping material by using the high pressure device or grease gun. Maintain the initial injection pressure as around 40kg/cm and increase the pressure by each 10kg/cm gradually until the water stopping material flows out from crack section. Water will come out from the crack section first and then water stopping foaming agent and then water stopping liquid at last. If the water stopping material that is not foamed comes from the crack section, then move to next packer for injection.

5. Packer Removing Operation

• Remove and break the packer by using vise pliers or hammer as a tool. If there is still a wet section, then inject the water stopping material again.

6. Finishing Operation

• Remove the water stopping material that is remained on the crack section. Spreading with the elastic sealing material.

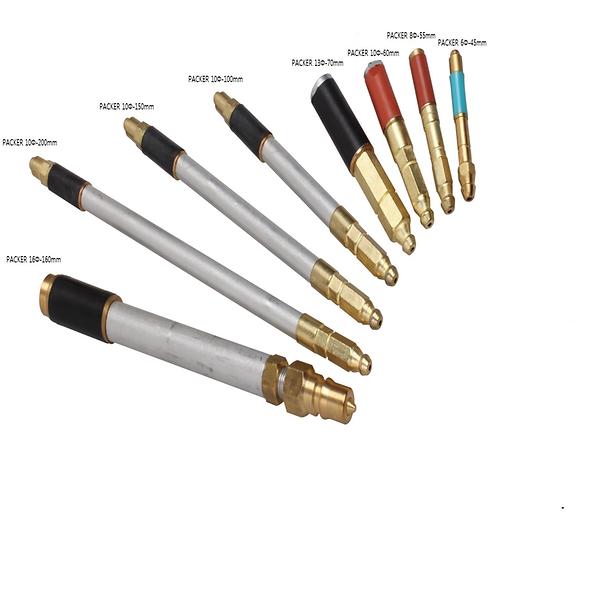

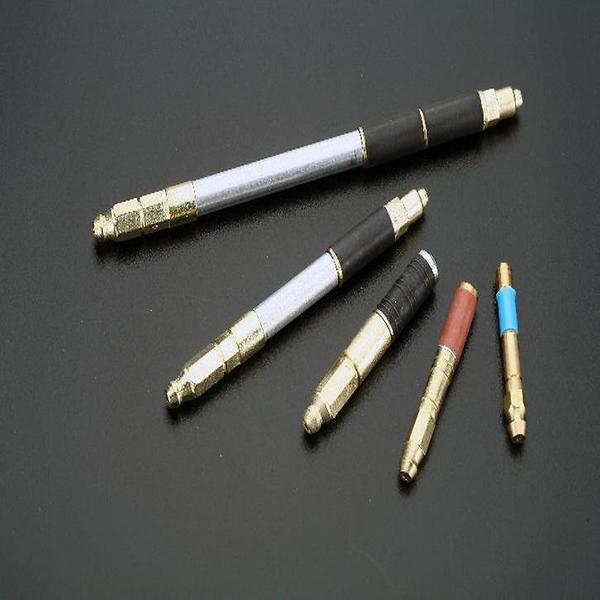

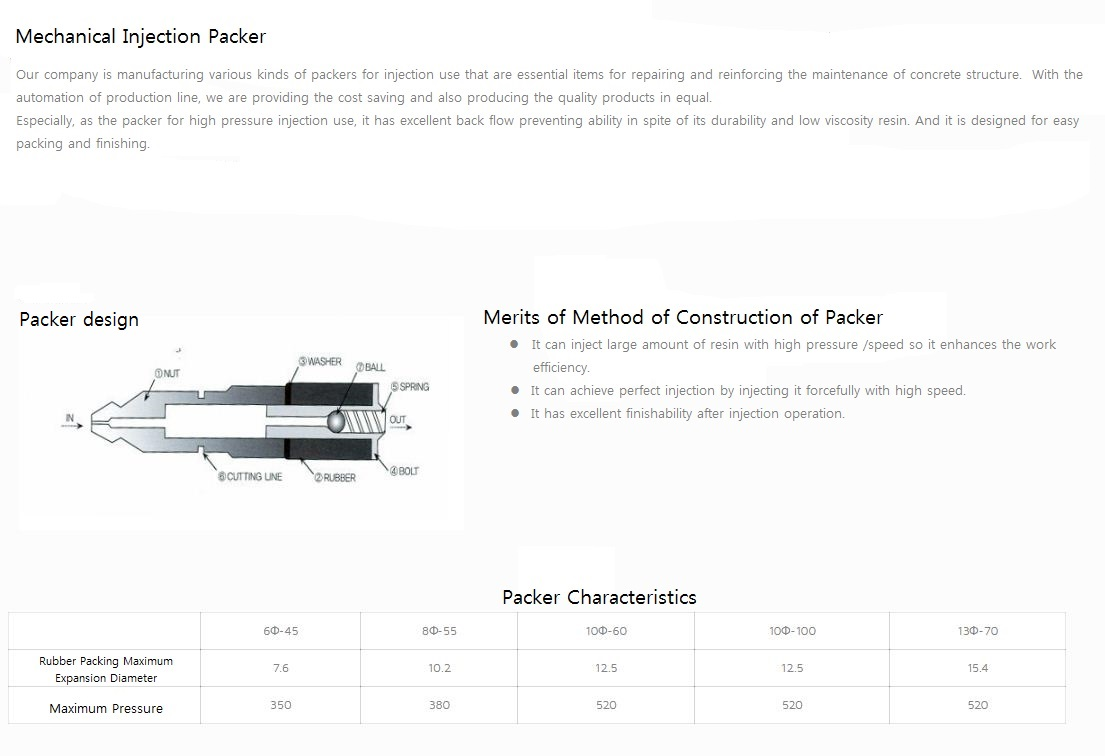

-Mechanical Injection Packer

Our company is manufacturing various kinds of packers for injection use that are essential items for repairing and reinforcing the maintenance of concrete structure. With the automation of production line, we are providing the cost saving and also producing the quality products in equal.

Especially, as the packer for high pressure injection use, it has excellent back flow preventing ability in spite of its durability and low viscosity resin. And it is designed for easy packing and finishing.

Merits of Method of Construction of Packer

• It can inject large amount of resin with high pressure /speed so it enhances the work efficiency.

• It can achieve perfect injection by injecting it forcefully with high speed.

• It has excellent finishability after injection operation.

Packer Characteristics

Rubber Packing Maximum Expansion Diameter

Maximum Pressure

Usage of Packer for each Specification

Specification

Usage

Concrete thickness under 15cm
