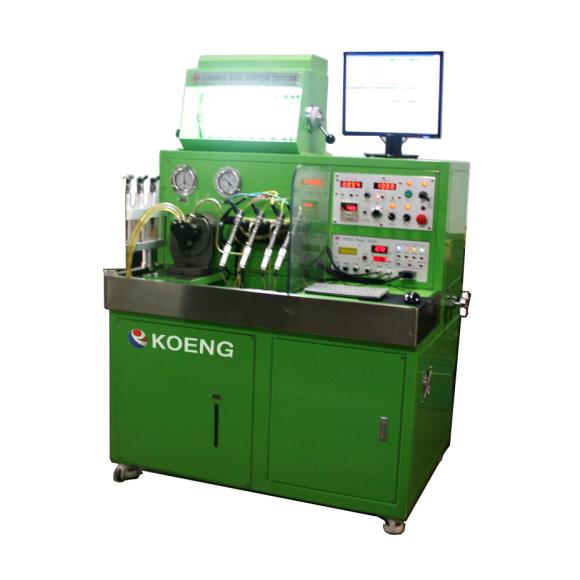

Common Rail Inject Test System Common Rail Test Bench
- Award
-
- Shipping
-
- Lead Time28 ~ 35days
- Modes of Transport EXW,FCA,FOB
- Products Shipped From Incheon,Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
|
High Pressure pump drive motor |
AC 220V/380V/3PH/50 or 60HZ (control by inverter) |
|
4 cylinders / 7.5KW (10 HP) |
|
|
Low pressure pump drive motor |
AC 220V/380V/3PH/50 or 60HZ 200W (1/3HP) |
|
Low pressure pump |
Output pressure 0~7 kg/cm² |
|
Fuel tank |
20ℓ(working capacity 15 liters) |
|
Temperature control |
0 ~ 100 ℃ |
|
Measuring glass |
150 cc (6 ea), 32cc (12 ea) - both sides |
|
Stroke counter |
0 ~ 1050 turns |
|
Engine RPM |
600 ~ 4,100 (600,650m,700 …4,100) Digit |
|
High pressure pump RPM |
0 ~ 3,000 (4 digit 0 ~9999 rpm indication) |
|
Low pressure analog gauge |
100 Ø 6 kg/cm² (Industrial precision stainless steel) |
|
Low pressure regulator |
0 ~ 6kg/cm² supply pressure control |
|
High pressure digital type |
0 ~ 2000 bar |
|
High pressure regulator |
0 ~ 2000 kg/cm²(2000 bar) pressure control |
|
High pressure pump output |
measuring valve |
|
Fuel cooling device |
400 x 400 (mm) |
|
Fan for cooling (motor with 40W) |
300 x 300 (mm) |
|
Fuel filter for line |
30 Mierons |
|
Test zig attach bed |
220 x 35 x 600 (WxDxH) -T groove type |
- Testing for injector injection quantity - Testing for injection figures - Testing for injector injection returns - Testing for various high pressure outputs (Bosch, Delphi, Denso) - Testing for various common rail high pressure input - All kinds of common rail simulation testing - Injector automatic cleaning during testing (Option) - Injector cleaning during vehicle engine starting (Option) * Standard accessories & tools - High pressure pipe for high pressure pump and rail supply : 1 EA (3 Ø x 8Ø x 600) - High pressure pipe for injector spray : 4EA (2 Ø x 6Ø x 600) - Zig for injector for Bosch, Delphi, Denso : 4 EA per each - Injector power connector : 2 sets - Pressure sensor connector : 1 EA - Ring bracket for Bosch H.P pump : 1 EA & connecting bracket for Bosch H.P pump : 1EA - Ring bracket for Delphi H.P pump : 1 EA & connecting bracket for Delphi H.P pump : 1EA - Ring bracket for Denso H.P pump : 1 EA & connecting bracket for Denso H.P pump : 1EA - H.P pump mounting bracket : 1EA - Rotation safety cover : 1EA - Measuring glass : 150 cc (6EA), 32 cc (12EA) - T bolt (2EA) and others
