Koeng Portable Emission Automotive Gas Analyzer Keg 500 High Quality
- Certification
-
- Award
-
- Shipping
-
- Type of Freight MT
- Modes of Transport FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 ea
Detailed Description
Product Deion

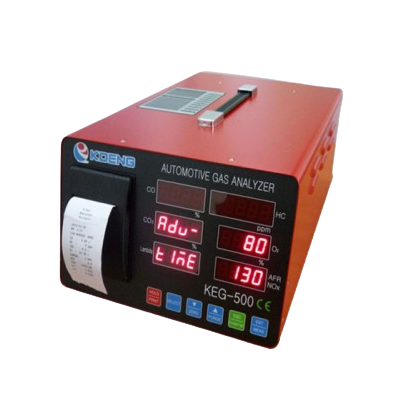

Portable automotive emission gas analyzer. KEG-500(4gas/5gas)
This analyzer is an equipment to measure the gas emission density of an automobile enabling to diagnose the automobile status and its preventive maintenance so that can provide a function to prevent the air pollution in advance.
Use and usage
Measuring item : CO(Carbon monoxide), HC(Hexane), CO2(Carbon dioxide), O2(Oxygen), Lambda(Air surplus rate), AFT, NOX (Optional)
|
Model |
KEG-200(2gas) / KEG-500(4gas/5gas) |
|||
|
Measuring gas |
CO, HC, CO2, O2, Lamda(Air surplus rate), AFR, NOX (5gas) |
|||
|
Sensor Theory |
CO, HC, CO2, Non-Dispersive Infrared Analysis(NDIR) |
|||
|
CO |
HC |
CO2 |
||
|
Measuring range |
0.00 ~ 10.0% |
0 ~ 9999 ppm |
0.0 ~ 20.0% |
|
|
Resolution |
0.01% |
1 ppm |
0.1% |
|
|
O2 |
λ |
AFR |
NOX |
|
|
Measuring range |
0.00 ~ 25.00 % |
0 ~ 2.000 |
0.0~99.0 |
0 ~ 5,000 ppm |
|
Resolution |
0.01 % |
0.001 |
0.1 |
1ppm |
|
Display |
4 digit 7segment LED |
|||
|
Repetition Rate |
Less than 2% FS |
|||
|
Response time |
Within 10 seconds |
|||
|
Preheat Time |
Approx. 2~8 minutes |
|||
|
Flow rate |
4 ~ 6 L/min |
|||
|
Power |
110V/ 220V±10%, 50/60Hz |
|||
|
Power consumption |
Approx. 50W |
|||
|
Operation Temp |
0 ~ 40ºC |
|||
|
Dimensions |
420 (W) x 298 (D) x 180 (H) mm |
|||
|
Packing Size |
530 (W) x 400 (D) x 350 (H) mm |
|||
|
Weight(Net/Gross) |
6.9 kg / 12.5kg |
|||
|

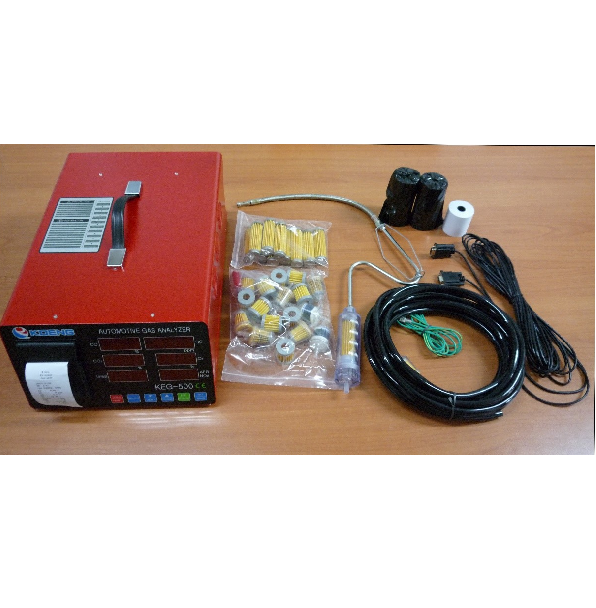

Standard Accessories (KEG-500) |
Probe, Probe hose, Fuse, Leak test cap, Spare filter, Power cord, RS232, Built-in Printer, Printer paper, Communication cable |
|||
|
Options |
RPM & OIL temp. meter Built-in printer for KEG-200 |
|||
Features
•Outstanding accuracy, stability and durability
•Noxmeasurement (optional)
•Temporary pause to measurement(Hold function)
•Portable(compact size, light weight)
•Extra filters and printer paper
•Compatible with chassis dynamo and engine tune-up
•Durable Performance that has passed a severe cold test at -10 ℃
•Automatic Temperature Adjustment (2~8 min)
•6 LED Display Windows
•(CO, HC, CO2, O2, λ, NOX),
•Built-In Printer (KEG-500)
•Time and Date Display Option when using printer

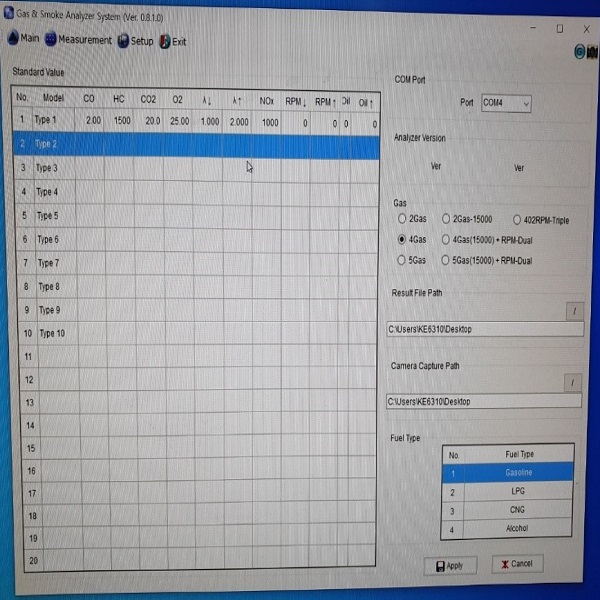

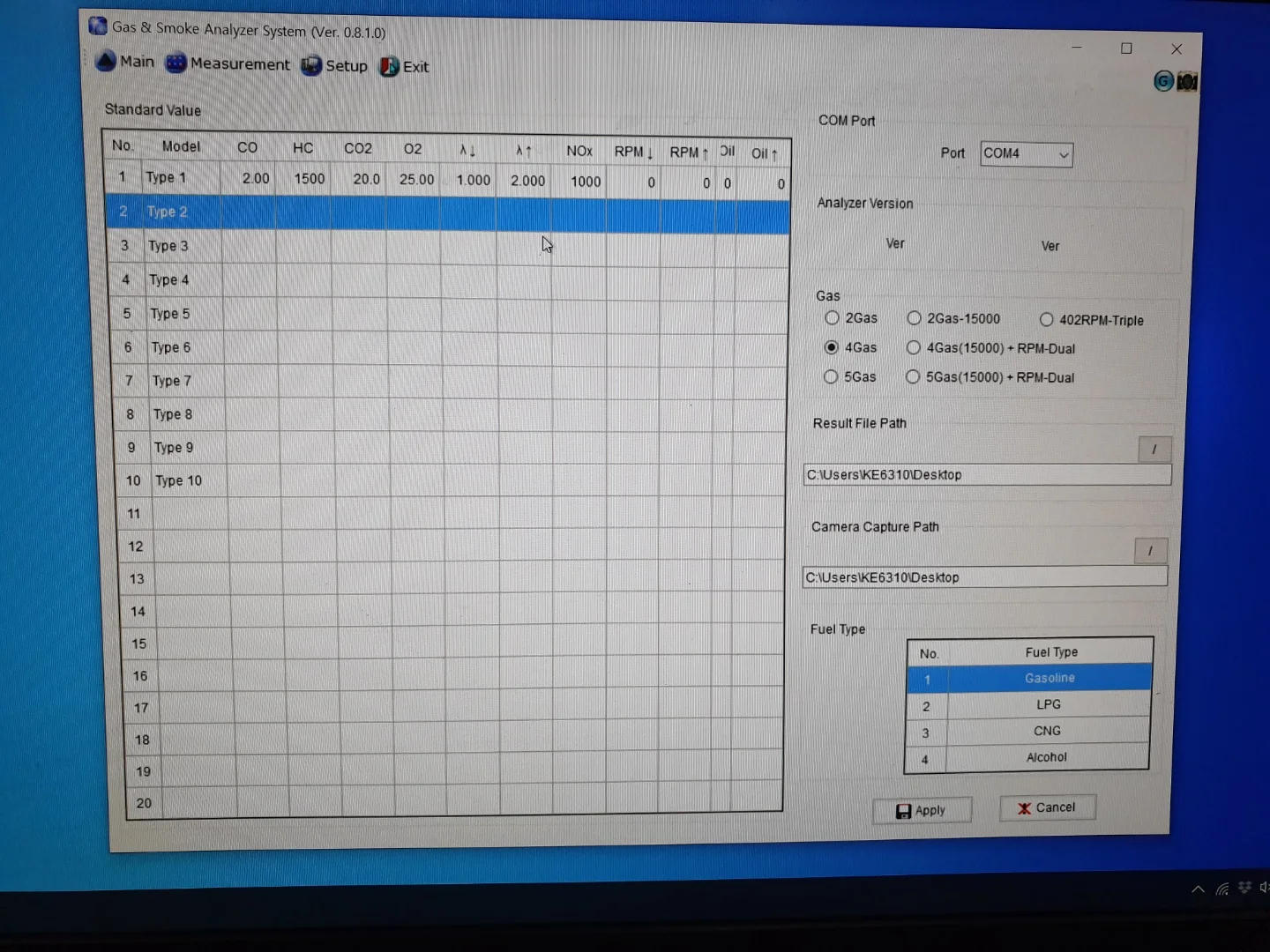

•RS232 PC Program (KEG-500)
•Suitable for professional engine tune-ups
•Suitable for professional vehicle emission gas testing shops
Company Information
KOENG - Experts in the automotive service equipment industry!
KOENG Co., Ltd. established in 1999 based on “Korea Engineering” company founded in 1994. It has developed Industrial balancing machine technology, Automotive service equipment, Industrial balancing machine, Urea solutions, Lubrication equipment, Car washing machine and Education &Training Equipment. We are a leading manufacturer and exporter for these ranges of machines in Korea and we will strive continuously to earn recognition as the global top equipment manufacturer.
We have obtained certificates of “ISO 9001”, “ISO 14001”, CE etc. We are also designated as “Next generation export enterprise”, “Export promising small & medium company”, “Technical Inno-biz company”, “Management innovation business company(Main-biz)”, and “Hi-Seoul Brand company” with reliability.
KOENG CO., LTD. is the Korean exporter and the market leader for supply, delivery, installation, training, calibration and maintenance of Automotive Service Equipment. We are providing top quality garage equipment products and services to car and commercial vehicle workshops to more than 40 countries from North America, South America, Asia, Oceania, Europe, Africa. For more inquiries, feel free to contact us by e-mail, phone or Skype, Whatsapp.
Business partners
Wide range of customers all over the worlds since 1994.
( including vehicle inspection centers, private repair workshops, military, police, vocational schools and vehicle makers.)
Our Services
- We have CS team to quickly provide the technical requirements requested by our customers. (On/Off line services)
- Supported by our technical team with high skilled & various experiences.
Packaging & Shipping
Packing : Export standard carton box or Export wooden box
Shipping port : Busan port, Korea
Delivery lead time : 1-2 weeks
High quality machines made by KOENG in Korea
Qualified : CE, ISO 3930/OIML R-99: Class 1, ISO 9001
