Cold Heading Quality Wires

share

$700.00 tonnes

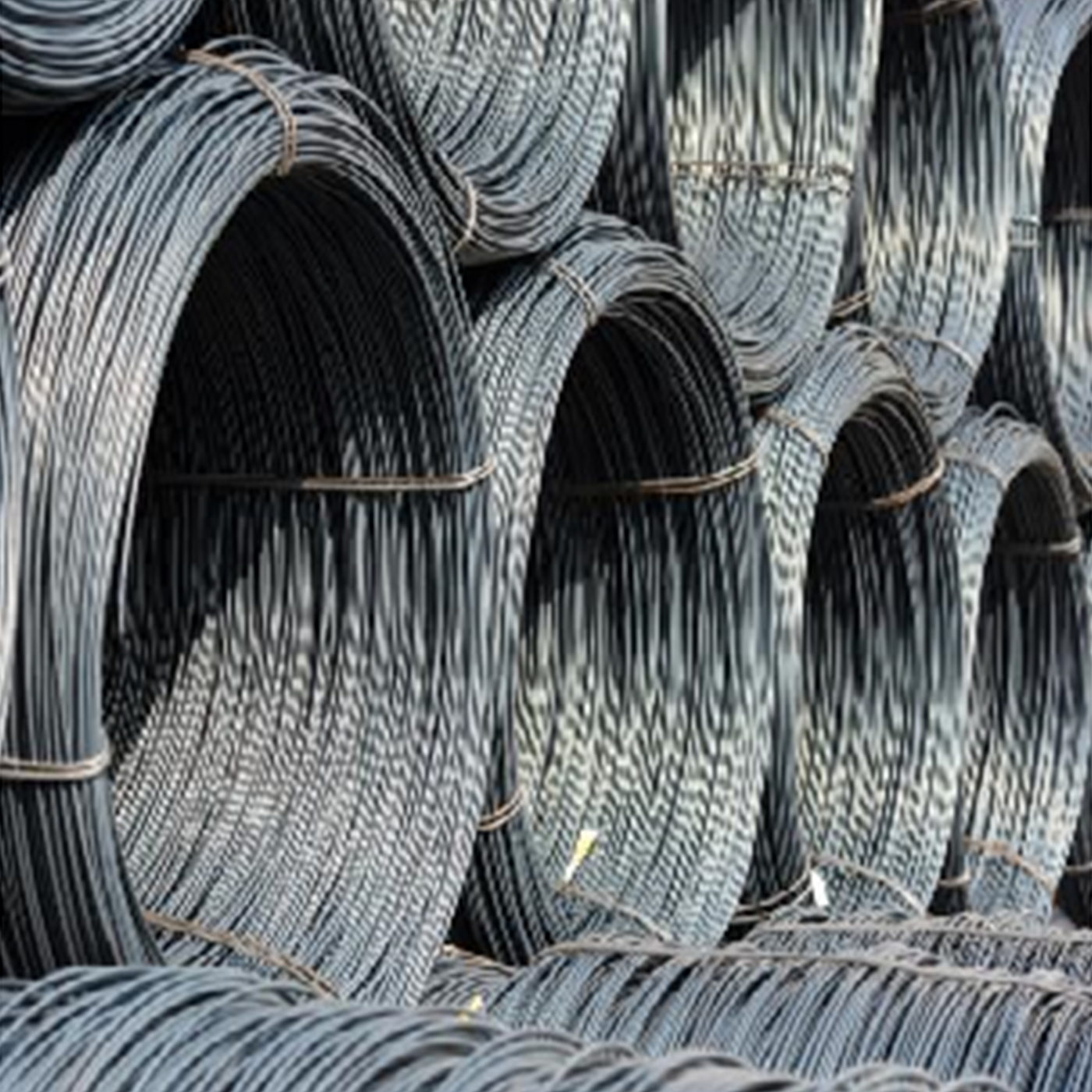

Steel Wire RodsGreen Surface Annealed Cold Drawn Spheroidised in Process (SAIP)Annealed In Process (AIP)
Certification
Award
Shipping
  • Lead Time15 ~ 90days
  • Modes of Transport CFR,CIF,FOB
  • Products Shipped From Busan
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More
Quantity
MOQ : 20 Tonnes

Detailed Description

* Characteristics
  HRPP : W/Rods + Phosphate Coated
  HD     : W/Rods + Phosphate Coated + Cold Drawn
  SAPP : W/Rods + Coated +Spheroidized Annealed + Phosphate Coated
  SAF   : W/Rods + Coated + Drawn + Spheroidized Annealed + Phosphate Coated
  SAIP  : W/Rods + Coated + Drawn + Spheroidized Annealed + Phosphate Coated
             + Cold Drawn



* Regular Steel Grade
  SAE 1006/1010/1018/1022/1025/1035/1038/1045(L)/1050
  SAE 1541/4037/4135/4140/5140
  SAE 10B21/10B35/10B38/15B41/51B20/51B37/51B40
  SAE 1213/12L14(Free Cutting Steel SUM22/24L)
  SAE 9254 (Spring Steel SUP7/9/10)
  SAE 52100 (Bearing Steel SUJ-2 )
  SUS 303/304/316(L)/410/416/430 (Stainless Steel)
  SUH 3 (Heat Resting Steel for Engine Valves)
    ▶for more

  * Available Size & Dimension

  HD, SAFS, SAIP HRPP, SAPP
Diameter (mm) 2.0 - 32.0 5.5 - 42.0
Dia. Tolerance (mm)  +0, -0.002 (min)  +/- 0.5 (max)
Coil Dimension (I.D.) 610 - 1,100 mm 850 -1,100 mm
                      (O.D) 650 - 1,600 mm 1,250-1,500 mm


  * Decarburization Depth

Process Dia.(mm) Carbon Steel Alloy Steel
DM-F DM-T DM-F DM-T
SAPP ~10 0.040 0.150 0.040 0.150
  10~ 0.050 0.200 0.050 0.200
SAF ~8 0.040 0.150 0.030 0.120
PASAF 8 ~ 14 0.050 0.200 0.040 0.150
  14 ~ 20 0.060 0.200 0.050 0.200
  20~ 0.070 0.250 0.060 0.250
SAIP ~8 0.030 0.120 0.020 0.100
PASAIP 8 ~ 14 0.040 0.150 0.030 0.120
  14 ~ 20 0.050 0.200 0.040 0.150
  20~ 0.060 0.200 0.050 0.200
DM-F : Decarburization Microscope Ferrite
DM-T : Decarburization Microscope Total

  * Application of CHQ Wires
Application Steel Grade Process
Flange Bolt & Nut SAE1025-1045  SWRCH25F~45F SAIP/PSASAIP
SAE4035  SCM435 PASAIP
SAE1010  SWRCH10A HD
Ball Housing SAE1045  SWRCH45F PSASAIP
Boxer Wrench SAE1045FCR  SWRCH45FCr SAIP
SAE415H  SCM415H PASAIP
Drill Piece SAE1018~1045  SWRCH18A~22A SAIP
Armature Shaft SAE1045  SWRCH45F R)AIP
SAE1045FCR  SWRCH45FCr SAIP
Chain Pin SAE4115~4135  SCM415H~435 AIP
Cylinder Head Bolt SAE4135H  SCM435H AIP/PASAIP
Hex. Bolt SAE4135  SCM435 AIP/PASAIP
SAE1045  SWRCH45F SAF/SAIP
Hub Bolt & Nut SAE4135  SCM435 AIP/PASAIP
Lead Wire SAE1006~1008  SWRCH6A~8A HD
Nipple SAE12L14  SUM24L SAIP
Piston Pin SAE4115~4135H  SCM415H~435H PASAIP
Screw SAE1006~1010A  SWRCH6A~10A HD/HRPP
Start Motor Parts SAE10B21  SWRCH22B SAIP
SAE1045  SWRCH45F SAIP
Tire Rod Pin SAE1045  SWRCH45F AIP/SAIP
Tire Spoke SAE4135  SCM 435 PASAIP
Wheel Nut Wrench SAE1045  SWRCH45F SAIP
Wrench Bolt SAE1045  SWRCH45F SAIP
SAE4135  SCM435 AIP
Ball Stud SAE4115~4140  SCM415H~440 PASAIP
Ball & Roller Bearing SAE52100  SUJ2 PASAIP



  * Surface Condition
    BCA  --- Phosphate(Bonderite with Ca) + Lime
    CAL   --- Phosphate(Bonderite with Zn & Ca) + Bonderlube
    BRL   --- Phosphate(Bonderite with Zn) + Bonderlube
  * Packing Method for Export
    about 150 (1,000) kgs single-coil, strapped by steel banding
    about  200 kgs single-coil, strapped by steel banding, wrapped by pp cloth,
    pp cloth after unitization into one bundle
    about 1,000 kgs single coils wrapped by pp cloth.
  * Delivery & Shipment
    within 30-90 days from the final agreement of the contract
    via conventional or container vessel
