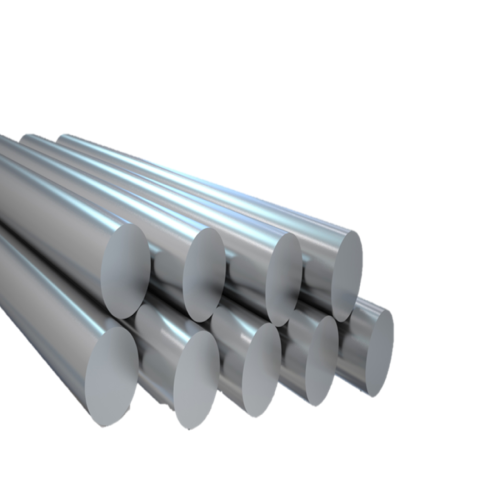

Cold Finished Steel Bars Round Bars

$700.00 tonnes

Bright bars, Round bars, Black Bars, H R Bars, Forged Bars

Certification

Award

Shipping

Lead Time15 ~ 90days
Modes of Transport CFR,CIF,FOB
Products Shipped From Busan

Payment: 140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More

Quantity: MOQ : 20 Tonnes

Detailed Description

* Specifications

Carbon and Alloy Steel

AISI 1006/1010/1017/1018/1020/1025/1038/1045(L)/1050/1060

AISI 1541/4037/4135/4140/5140

AISI 10B21/10B35/15B41/51B20/51B37/51B40

AISI 52100 (Bearing Steel SUJ-2 )

SUH 3 (Heat Resting Steel for Engine Valves)

Free Cutting Carbon Steel

AISI 1212, 1213, 1215, 12L14, 1137, 1141

JIS G 4804 SUM21, 22, 23, 24L, 41, 42

BS 230M07, 210M15, 210A15, DIN 9SMn28, 9SMnPb28

Stainless Steel

SUS 303/304/316(L)/410/416/430

* Characteristics

Cold Drawn, Polished, Peeled, Cold Forged, Smooth Turned.

Centerless Ground, Chamfered

Annealed, Hardened & Tempered(ASTM A-193)

* Dimensions

Dia.(mm)	Length(M)	Dia Tolerance	Straightness	Shape
2.0-110.0	2.0-7.0	h7, h8, h9 (*)	0.5/1,000	Round, Hexagon,
				Square & Flat

* Dimensional Tolerances of Cold Finished Steel Bars

Diameter	h6	h7(*)	h8	h9(**)	h10	h11	h12
∼3.000	0 -0.006	0 -0.010	0 -0.014	0 -0.025	0 -0.040	0 -0.060	0 -0.10
3.001 ∼6.000	0 -0.008	0 -0.012	0 -0.018	0 -0.030	0 -0.048	0 -0.075	0 -0.12
6.001 ∼10.000	-	0 -0.015	0 -0.022	0 -0.036	0 -0.058	0 -0.090	0 -0.15
10.001 ∼18.000	-	0 -0.018	0 -0.027	0 -0.043	0 -0.070	0 -0.11	0 -0.18
18.001 ∼30.000	-	0 -0.021	0 -0.033	0 -0.052	0 -0.084	0 -0.13	0 -0.21
30.001 ∼50.000	-	0 -0.025	0 -0.039	0 -0.062	0 -0.100	0 -0.16	0 -0.25
50.001 ∼80.000	-	0 -0.030	0 -0.046	0 -0.074	0 -0.12	0 -0.19	0 -0.30
80.001 ∼120.000	-	0 -0.035	0 -0.054	0 -0.087	0 -0.14	0 -0.22	0 -0.35

Remarks

(1) Deviations in diameter or deviations shall be within 30% of the tolerance.

(2) Values given in parentheses are based on JIS B 0401.

* h7 - Cold Drawn + Grinding, Smooth Turning + Grinding

** h9 - Cold Drawn, Polishing, Peeling

Centerless Ground Bars

Guarantee h7 tolerance in diameter, Fine surface with uniform roughness,

To be used for the precision components of electrical appliances, automotives, O.A.

and optical instruments.

Usually applied for SAE 1018, 1045, 12L14, 1213, 1215
