Radiography Fluoroscopic X-ray System WSRF-50

share

Request For Quotation
R/F System possible to General Radiographing and Fluoroscopic X-ray with H.F. inverter method With Control, mounted on R/F Table, enabling to regulate conditions.
Certification
Award
Shipping
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More

Detailed Description





[Company Introduction]


Founded in 1990, Won Solution(former Won Medical) has been developing and manufacturing X-ray equipment for around 24 years and providing the best products for customers in a timely manner. Giving the top priority to customer satisfaction, Won Solution shall keep developing X-ray equipment to provide the top quality service for higher satisfaction. Also, focusing on technology development and service provision for your health, Won Solution shall spare no effort to be the leader in the medical industry.


-Development software & hardware: diagnostic radioactive ray control device, automatic film developer, unmanned alarm, vision system and software, optical communication

-Manufacturing & sales: diagnostic x-ray, control device, normal type and high frequency type

-Sales of finished products: diagnostic x-ray equipment, automatic film developer, and other medical equipment



[Product Description]

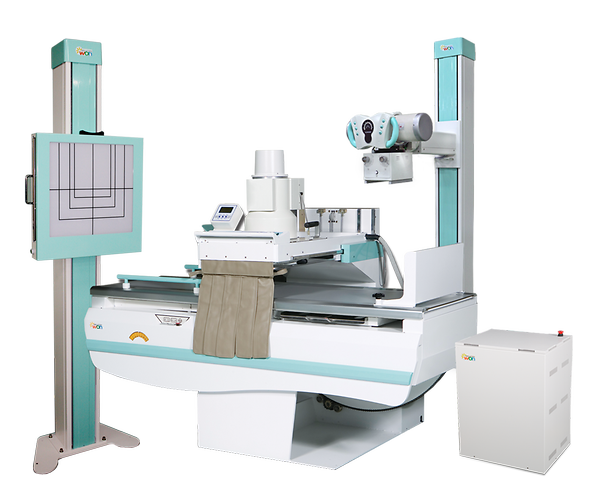

WSRF-50 system human body general Radiographic and Fluoroscopic are possible R/F system by high frequency inverter mode and when Fluoroscopic is very convenient that user operates because console that can control condition is attached on R/F table.
When Fluoroscopic, can use more conveniently if use ABS and AEC function that is option function.



[Product Specificaion]




Tube unit
H.T Cable
 Tube Voltage  150kVp  kVp Range  150kVp
 Focal Spot  0.6 - 1.2㎜
Image Intensifier
 Anode Heat  300KHU  Size  6inch / 9inch
Collimator (CM-W1)
Camera & Monitor
 Lightning  26 - 30sec, 100 - 160lux  Component Size  CCD Camera, 12”-17”
Tube Stand (TS-W1)
 * Option
 U/D mov. dls.  1300㎜  Ceiling Tube Suspended (TC-W1)
 L/R mov. dls.  2000㎜  Bucky Stand (BS-W1)
 Reve, angle  ±180˚  Bucky Table (BT-W1)
R/F Table (RFBT-W1)
 Touch Screen Type
 Tilting  +90˚ ~ -15˚
 Dimension  2000L × 700W × 850H㎜
