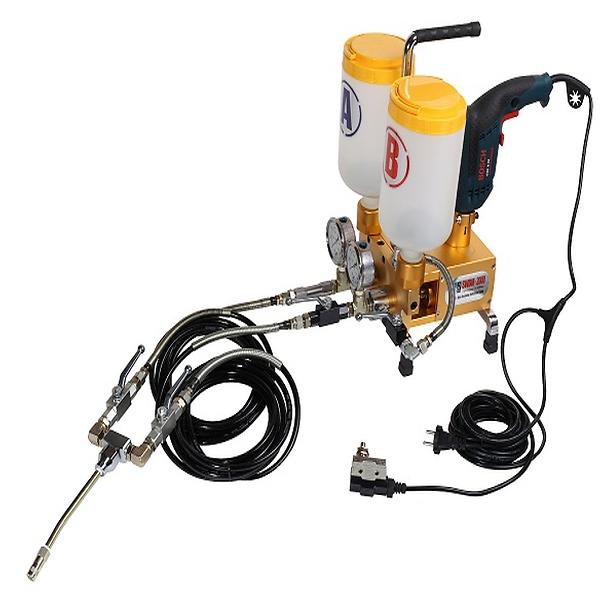

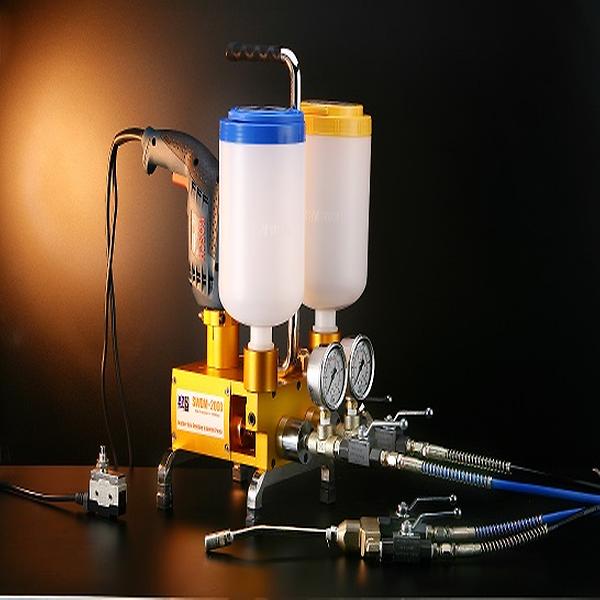

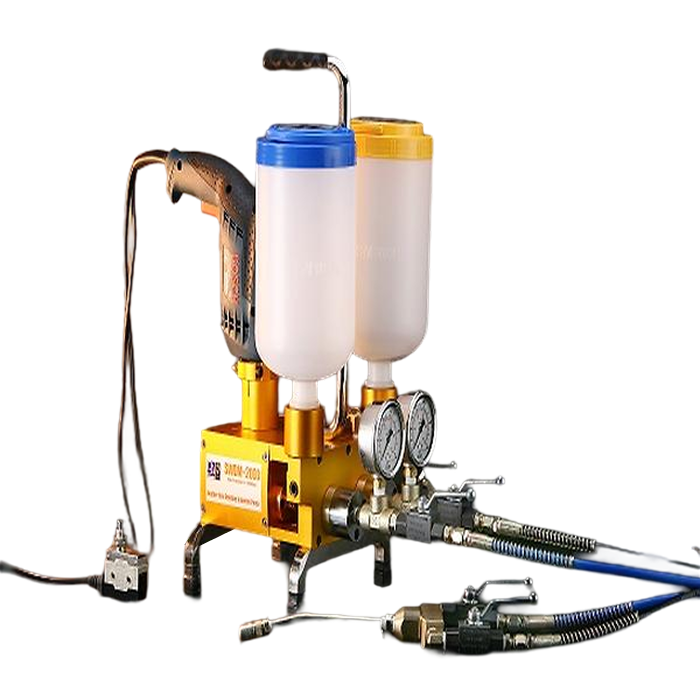

SWDM-2000 (Double line injection pump)

Two pressure gauge units with 0~700bar (0~10,000psi),

2*4m Material hose (No.03)Φ4.8mm

2*2 liter Material container transparent

Double line liquid  type high strength polyurethane injection taking a short time to harden

Advantages

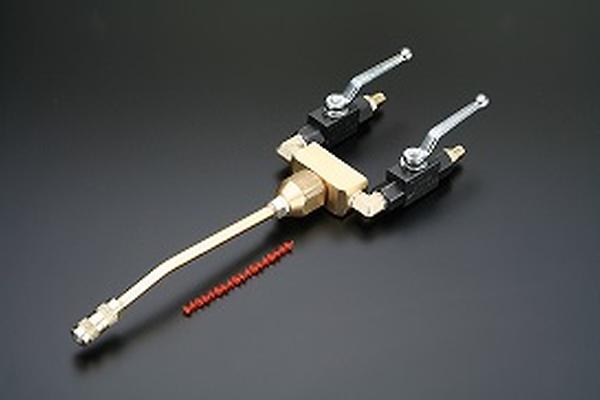

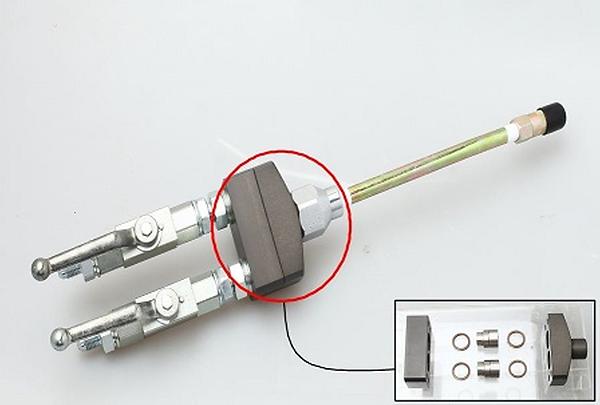

*Two components mixing head

*The pump is small and light

*Easy operation and cleaning

Technical data

Working pressure 0~250bar

Delivery (stroke)    2*0.35liter/min (0.7 liter/min)

Mixing ratio           1:1

Weight                   17kg

Wkdth/Length/Height        32/45/47cm

Description

*cylinder standard : 2*Φ0.8mm (0.35 liter/min*2) 1.1 liter/min

Speed controller is an option

The oil protectiohn gauge unit is an option

Material to be used

*PUR resin    *SPUR foam
