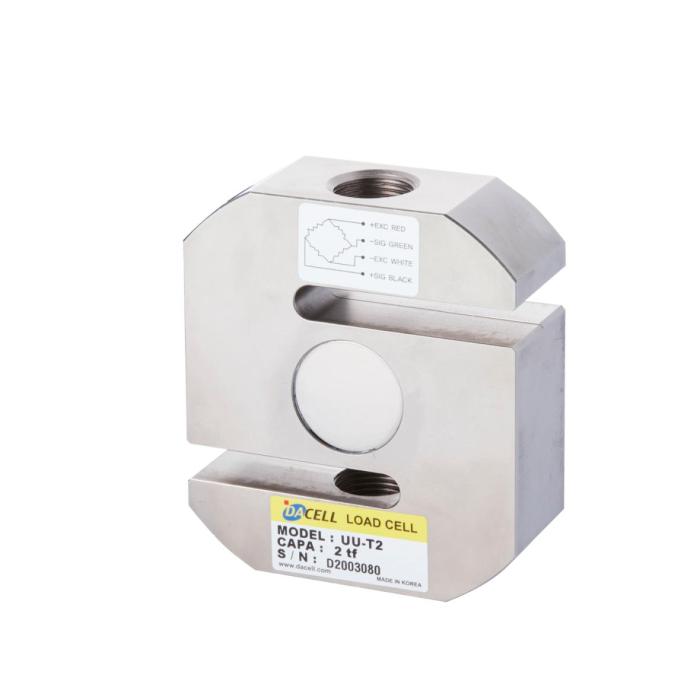

Universal Load Cell

share

$140.00 pcs
Compact size
These are extremely accurate and compact Tension/Compression load cell.
Certification
Award
Shipping
  • Lead Time3 ~ 25days
  • Modes of Transport CFR,CIF,EXW,FOB
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More
Quantity
MOQ : 1 Pieces

Detailed Description

  • Model UU load cells measure both tension & compression load force.
  • Applications include performance testers for automotive industry.

Specifications

Specifications Accuracy
Rated capacity (R.C.) 2kg, 5kg, 10kgf, 20kgf,25kgf, 50kgf, 100kgf, 200kgf, 500kgf, 1tf, 2tf, 3tf, 5tf, 10tf
Rated output (R.O.) 2.0mV/V±1% (2kgf, 5kgf : 1.5mV/V±1%)
Nonlinearity 0.03% of R.O.
Hysteresis 0.03% of R.O.
Repeatability 0.03% of R.O.
Zero balance ±2% of R.O.
Temperature effect, on rated output 0.05% of LOAD/10℃
Temperature effect, on zero balance 0.1% of R.O./10℃
Temperature range, compensated -10~60℃
Temperature range, safe -20~80℃
Terminal resistance input 350 ±50Ω
Terminal resistance output 350 ±2Ω
Insulation resistance bridge/case 2000MΩ
Excitation recommended 10V
Safe overload 150% R.C
Cable length Φ5mm 4core,3m

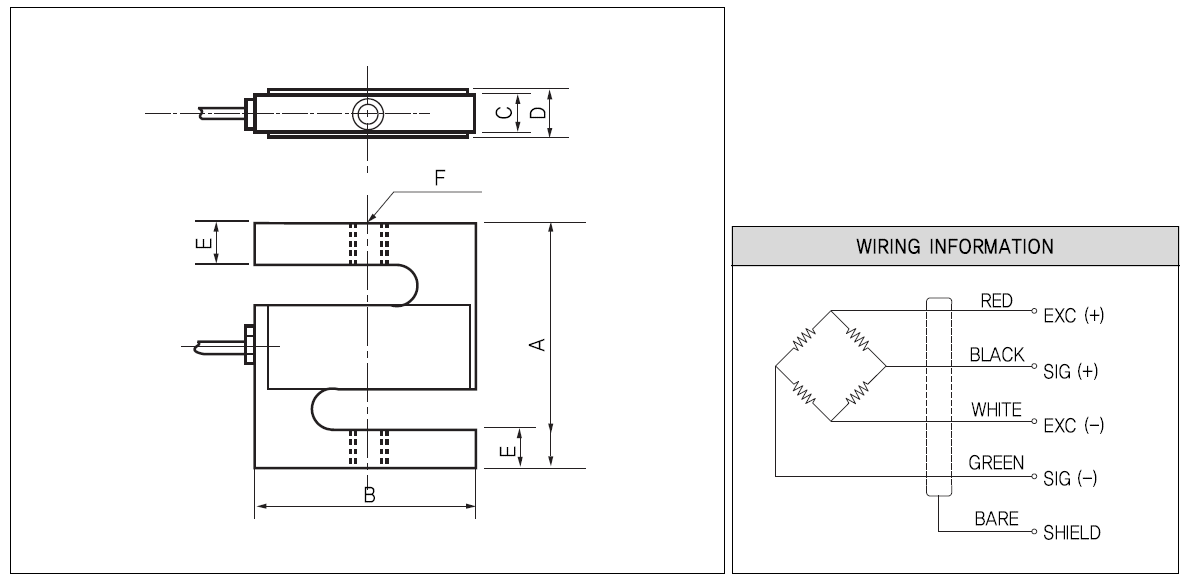

Capacity A B C D E G Weight(kg)
2kgf (19.61N) 60 50 13 16 10 M6×1 0.4
5kgf (49.03N) 60 50 13 16 10 M6×1
10kgf (98.07N) 70 52 13 18 13 M6×1
20kgf (196.1N),25kgf (245N) 70 52 13 18 13 M6×1
50kgf (490.3N) 70 52 18 24 13 M12×1.75
100kgf (980.7N) 70 52 18 24 13 M12×1.75
200kgf (1.961KN) 70 52 18 24 13 M12×1.75
500kgf (4.903KN) 70 62 22 25 15 M12×1.75 0.8
1tf (9.807KN) 70 62 22 25 15 M12×1.75
2tf (19.61KN) 96 84 30 35 21 M20×1.5 2
3tf (29.42KN) 120 96 35 41 30 M24×2 3
5tf (49.03KN) 120 96 40 44 30 M24×2
10tf (98.07KN) 165 140 60 66 46 M39×2 8.5

★Specifications are subiect to change without notice.
