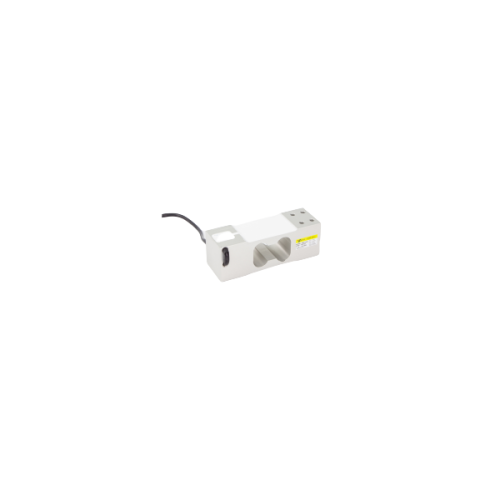

Load Cell
$150.00 pcs
This strain gage load cell was newly developed as an electronic 'Scale' for commercial purposes, providing high accuracy at low prices.
- Certification
-
- Award
-
- Shipping
-
- Lead Time3 ~ 20days
- Modes of Transport CFR,CIF,EXW,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Detailed Description
This strain gage load cell was newly developed as an electronic "Scale" for commercial purposes, with high accuracy and a low price. Compared with other mechnical methods, this load cell provides small displacement. Due to electronic output, it is easy to treat various treatments.
Specifications
| Specifications | Accuracy | ||
|---|---|---|---|
| Rated capacity(R.C) | 150gf, 300gf, 600gf (1.470N, 2.942N, 5.884N) | 1, 2, 3kgf (9.807N, 19.61N, 29.42N) | 5, 10, 15, 30, 50kgf (49.03N, 98.07N, 147.1N, 294.2N, 490.3N) |
| Rated output(R.O) | 1.2mV/V±20% | 1mV/V±20% | 1.5mV/V±10% |
| Nonlinearity | 0.02% R.O. | ||
| Hysteresis | 0.02% R.O. | ||
| Repeatability | 0.02% R.O. | ||
| Creep | 0.03% R.O/20MIN | 0.03% R.O./20MIN | 0.02% R.O./20MIN |
| Zero balance | ±5% R.O. | ||
| Terminal resistance, input | 420±30Ω | ||
| Terminal resistance, output | 350±2Ω | ||
| Insulation resistance | 2000㏁ | ||
| Temperature range compensated | 0~+40℃ | -10~+50℃ | -10~+50℃ |
| Temperature range, safe | -10~+50℃ | ||
| Temperature effect, on zero balance | 0.03% R.O./10℃ | ||
| Temperature effect, on rated output | 0.02% LOAD/10℃ | ||
| Excitation recommended | 10V DC | ||
| Safe overload | 150% R.C. | ||
| Cable length | Φ3, 4CORE SHIELD CABLE, 1.5m | Φ5, 4CORE SHIELD CABLE, 1.5m | |
| Allowable maximum Platform size | Φ80 | 200 X 200mm | 300 X 300mm |
| Weight | 200g | 300g | 400g |
| Wiring Information | EXC+ : RED, EXC- : WHITE, SIG+ : BLACK, SIG- : GREEN | ||
★Specifications are subiect to change without notice.
