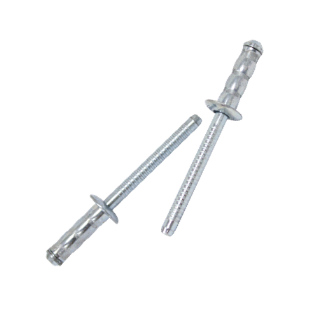

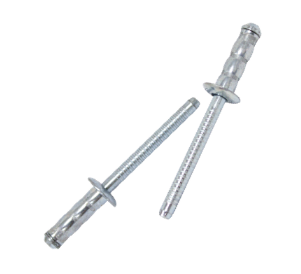

Multi Blind Rivet
Material
All Steel, All Stainless Steel
Surface
Zinc plated, Natural polished
Multi Blind Rivet Product Features
- Wide range of fastening, enabling fastening of base materials of various thicknesses.
- Excellent hole filling function and superior shear and tensile strength.
Quality System ==> ZERO customer complaints, 100PPM defective rate from supplier
Jay Fastener Co., Ltd. has established a quality management system based on the ISO/TS 16949 operating system
, and all executives and employees are making efforts to achieve strict quality control and the best quality.
- Certification
-
- Award
-
- Shipping
-
- Lead Time31 ~ 60days
- Type of Freight Proceed after consultation
- Modes of Transport Proceed after consultation
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Boxes
Product Summary
Dimension in millimeter
Fastener Size: Φ3.2
Head Type: Domed Head
Part No.:
- Stainless Steel: JSVXD-0409, JSVXD-0411
- Carbon Steel: JSVSD-0409, JSVSD-0411
Grip Range (mm):
- 1.0~3.0 (0409), 1.0~4.0 (0411)
Hole Size (mm):
- Min: 3.3, Max: 3.4
M (Max): 11.4 (0409), 14.0 (0411)
A (Min~Max): 3.1~3.3
B (Max): 6.7
D (Max): 1.3
E (Max): 2.3
Fastener Size: Φ4.0
Part No.:
- Stainless Steel: JSVXD-0510, JSVXD-0512, JSVXD-0514
- Carbon Steel: JSVSD-0510, JSVSD-0512, JSVSD-0514
Grip Range (mm):
- 1.0~4.0 (0510), 1.0~6.0 (0512), 2.0~8.0 (0514)
Hole Size (mm): 4.1~4.3
M (Max): 13.1 (0510), 15.1 (0512), 17.1 (0514)
A (Min~Max): 3.9~4.1
B (Max): 8.4
D (Max): 1.7
E (Max): 2.9
Fastener Size: Φ4.8
Part No.:
- Stainless Steel: JSVXD-0610, JSVXD-0611, JSVXD-0615, JSVXD-0618, JSVXD-0625
- Carbon Steel: JSVSD-0610, JSVSD-0611, JSVSD-0615, JSVSD-0618, JSVSD-0625
Grip Range (mm):
- 1.5~5.1 (0610), 1.5~6.6 (0611), 1.5~9.3 (0615), 6.4~12.7 (0618), 10.5~19.7 (0625)
Hole Size (mm): 4.9~5.2
M (Max): 13.5 (0610), 15.0 (0611), 18.3 (0615), 21.5 (0618), 28.5 (0625)
A (Min~Max): 4.7~5.2
B (Max): 10.1
D (Max): 2.0
E (Max): 3.4
────────────────────────────
Material & Finish
| Material | Body | Mandrel | Body Finish | Mandrel Finish |
|----------------|------------------|------------------|------------------|------------------|
| Stainless Steel| Stainless Steel | Stainless Steel | Polished | Natural |
| Carbon Steel | Carbon Steel | Carbon Steel | Zinc plated | Zinc Plated |
────────────────────────────
Performance Data
| Material | Size (mm) | Shear Strength (N) | Tensile Strength (N) |
|------------------|-----------|---------------------|------------------------|
| Stainless Steel | Φ3.2 | 1700 | 2000 |
| | Φ4.0 | 2700 | 3400 |
| | Φ4.8 | 4000 | 4500 |
| Carbon Steel | Φ3.2 | 650 | 850 |
| | Φ4.0 | 950 | 1500 |
| | Φ4.8 | 1320 | 2000
Detailed Description
Material & Surface
Material
All Steel, All Stainless Steel
Surface
Zinc plated, Natural polished
Multi Blind Rivet Product Features
- Wide range of fastening, enabling fastening of base materials of various thicknesses.
- Excellent hole filling function and superior shear and tensile strength.
Quality System ==> ZERO customer complaints, 100PPM defective rate from supplier
Jay Fastener Co., Ltd. has established a quality management system based on the ISO/TS 16949 operating system
, and all executives and employees are making efforts to achieve strict quality control and the best quality.

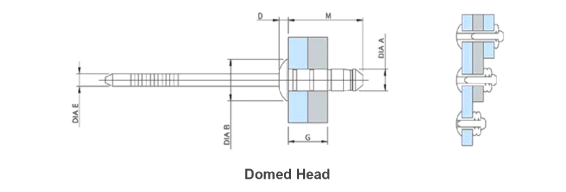

Domed Head
Dimension in millimeter
Fastener Size: Φ3.2
Head Type: Domed Head
Part No.:
- Stainless Steel: JSVXD-0409, JSVXD-0411
- Carbon Steel: JSVSD-0409, JSVSD-0411
Grip Range (mm):
- 1.0~3.0 (0409), 1.0~4.0 (0411)
Hole Size (mm):
- Min: 3.3, Max: 3.4
M (Max): 11.4 (0409), 14.0 (0411)
A (Min~Max): 3.1~3.3
B (Max): 6.7
D (Max): 1.3
E (Max): 2.3
Fastener Size: Φ4.0
Part No.:
- Stainless Steel: JSVXD-0510, JSVXD-0512, JSVXD-0514
- Carbon Steel: JSVSD-0510, JSVSD-0512, JSVSD-0514
Grip Range (mm):
- 1.0~4.0 (0510), 1.0~6.0 (0512), 2.0~8.0 (0514)
Hole Size (mm): 4.1~4.3
M (Max): 13.1 (0510), 15.1 (0512), 17.1 (0514)
A (Min~Max): 3.9~4.1
B (Max): 8.4
D (Max): 1.7
E (Max): 2.9
Fastener Size: Φ4.8
Part No.:
- Stainless Steel: JSVXD-0610, JSVXD-0611, JSVXD-0615, JSVXD-0618, JSVXD-0625
- Carbon Steel: JSVSD-0610, JSVSD-0611, JSVSD-0615, JSVSD-0618, JSVSD-0625
Grip Range (mm):
- 1.5~5.1 (0610), 1.5~6.6 (0611), 1.5~9.3 (0615), 6.4~12.7 (0618), 10.5~19.7 (0625)
Hole Size (mm): 4.9~5.2
M (Max): 13.5 (0610), 15.0 (0611), 18.3 (0615), 21.5 (0618), 28.5 (0625)
A (Min~Max): 4.7~5.2
B (Max): 10.1
D (Max): 2.0
E (Max): 3.4
────────────────────────────
Material & Finish
| Material | Body | Mandrel | Body Finish | Mandrel Finish |
|----------------|------------------|------------------|------------------|------------------|
| Stainless Steel| Stainless Steel | Stainless Steel | Polished | Natural |
| Carbon Steel | Carbon Steel | Carbon Steel | Zinc plated | Zinc Plated |
────────────────────────────
Performance Data
| Material | Size (mm) | Shear Strength (N) | Tensile Strength (N) |
|------------------|-----------|---------------------|------------------------|
| Stainless Steel | Φ3.2 | 1700 | 2000 |
| | Φ4.0 | 2700 | 3400 |
| | Φ4.8 | 4000 | 4500 |
| Carbon Steel | Φ3.2 | 650 | 850 |
| | Φ4.0 | 950 | 1500 |
| | Φ4.8 | 1320 | 2000 |
Final trading terms are subject to negotiation. Price, quantity, and delivery methods may vary depending on agreement with the buyer.
