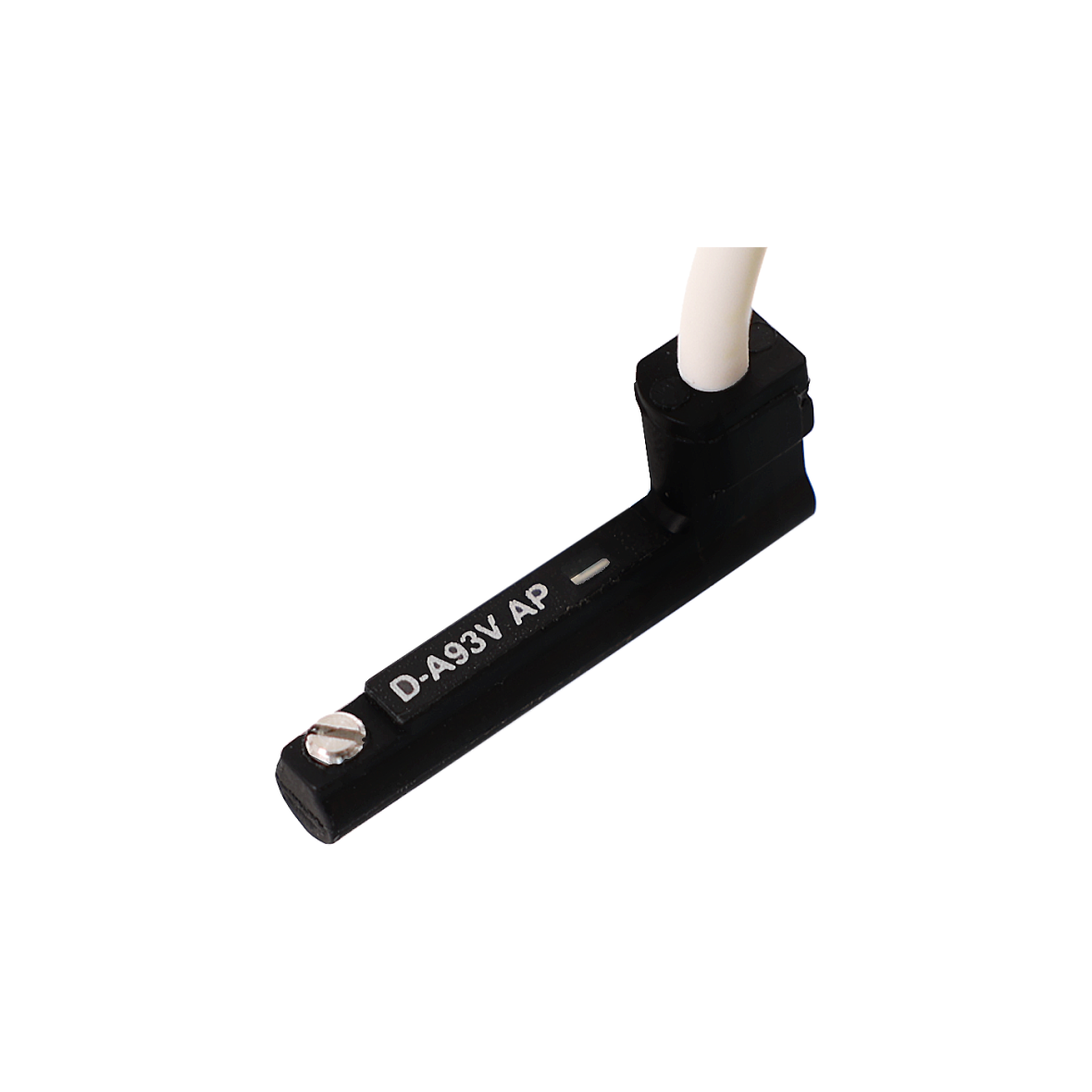

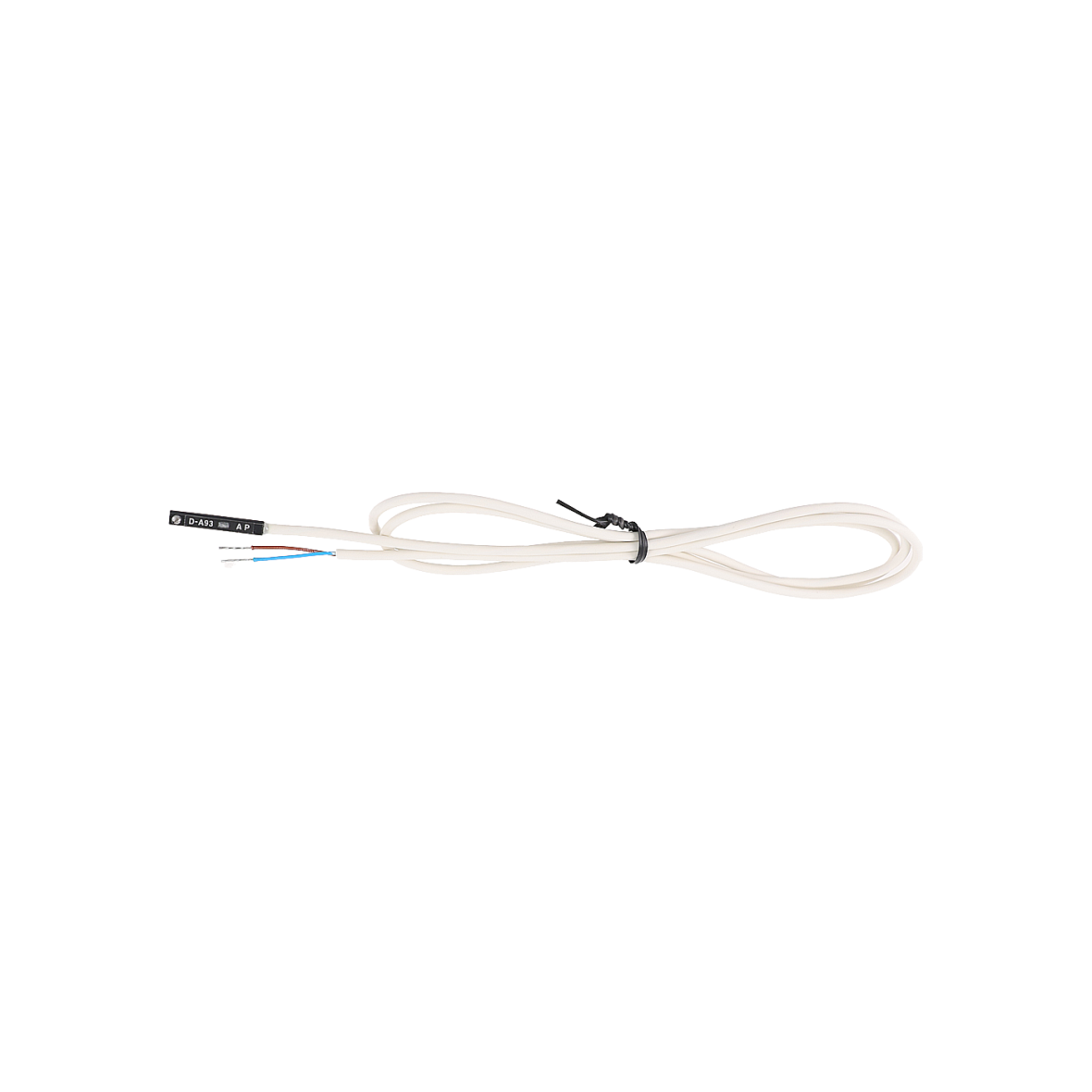

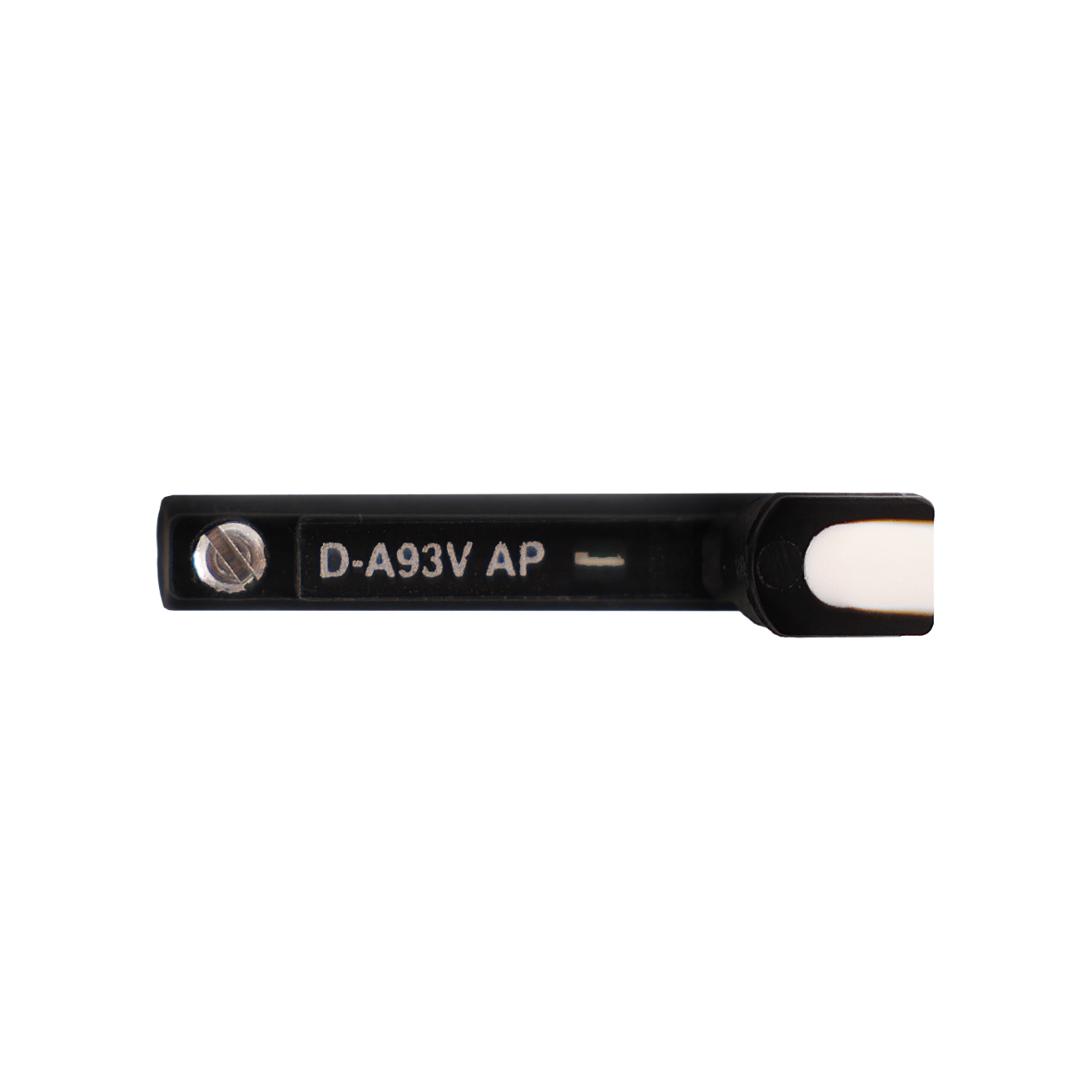

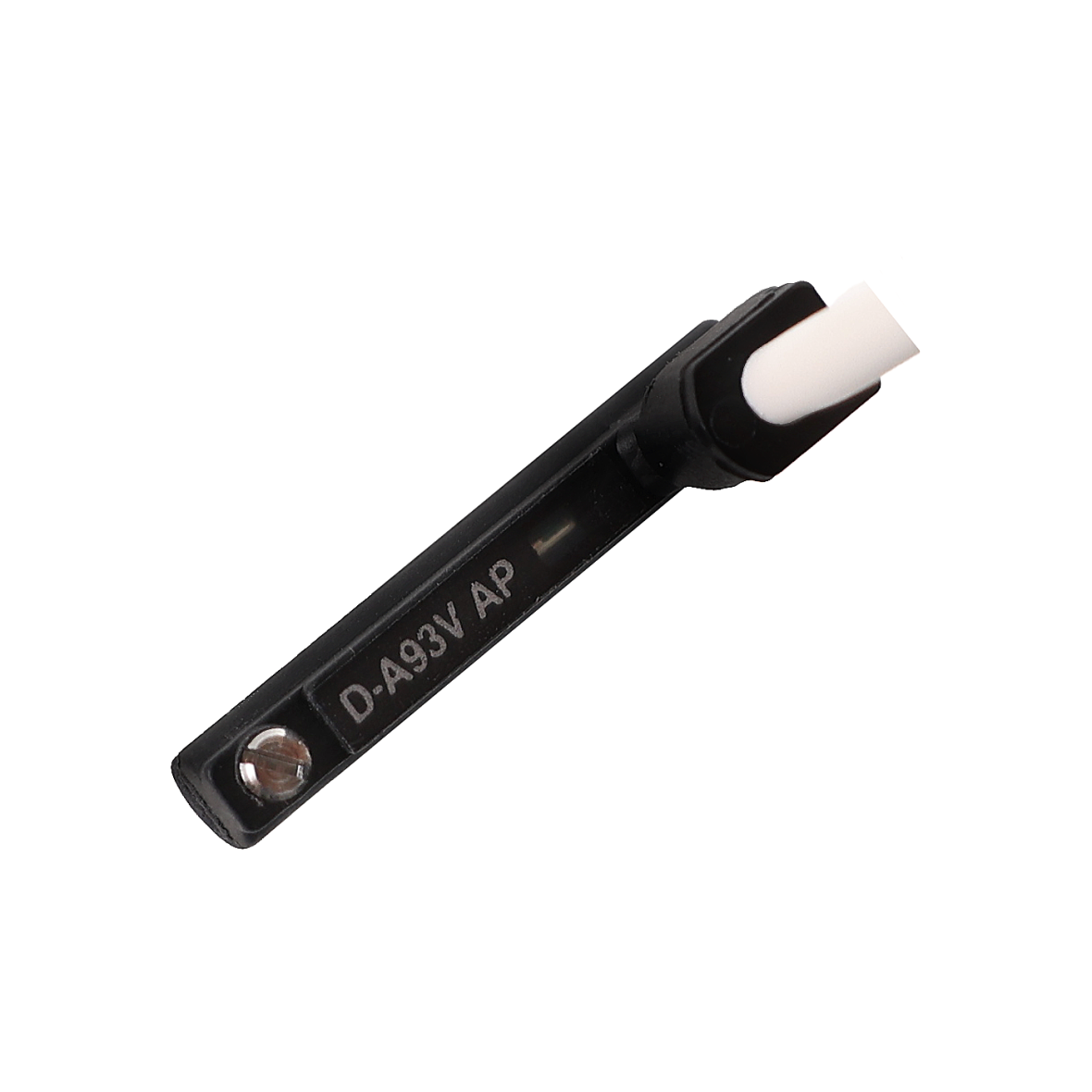

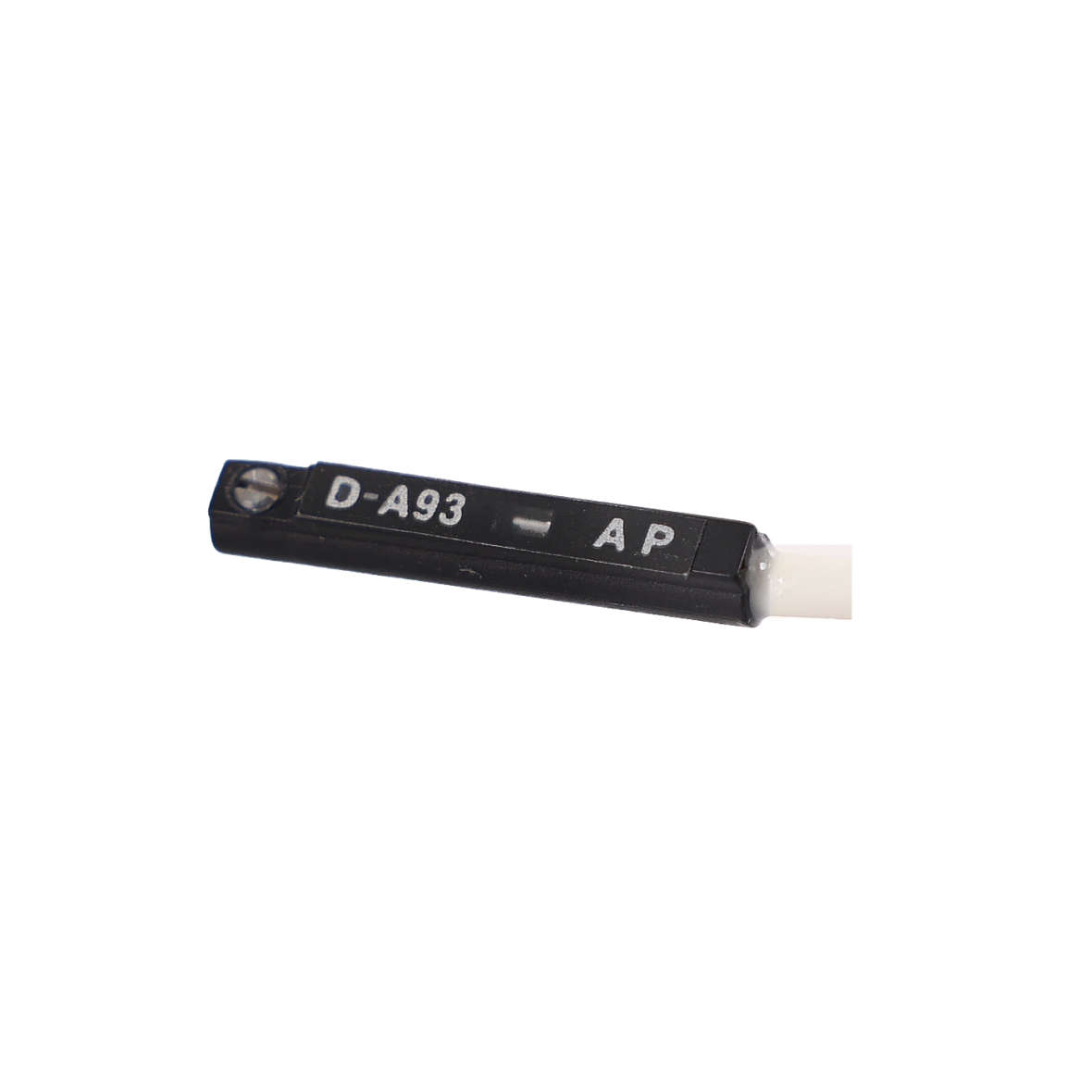

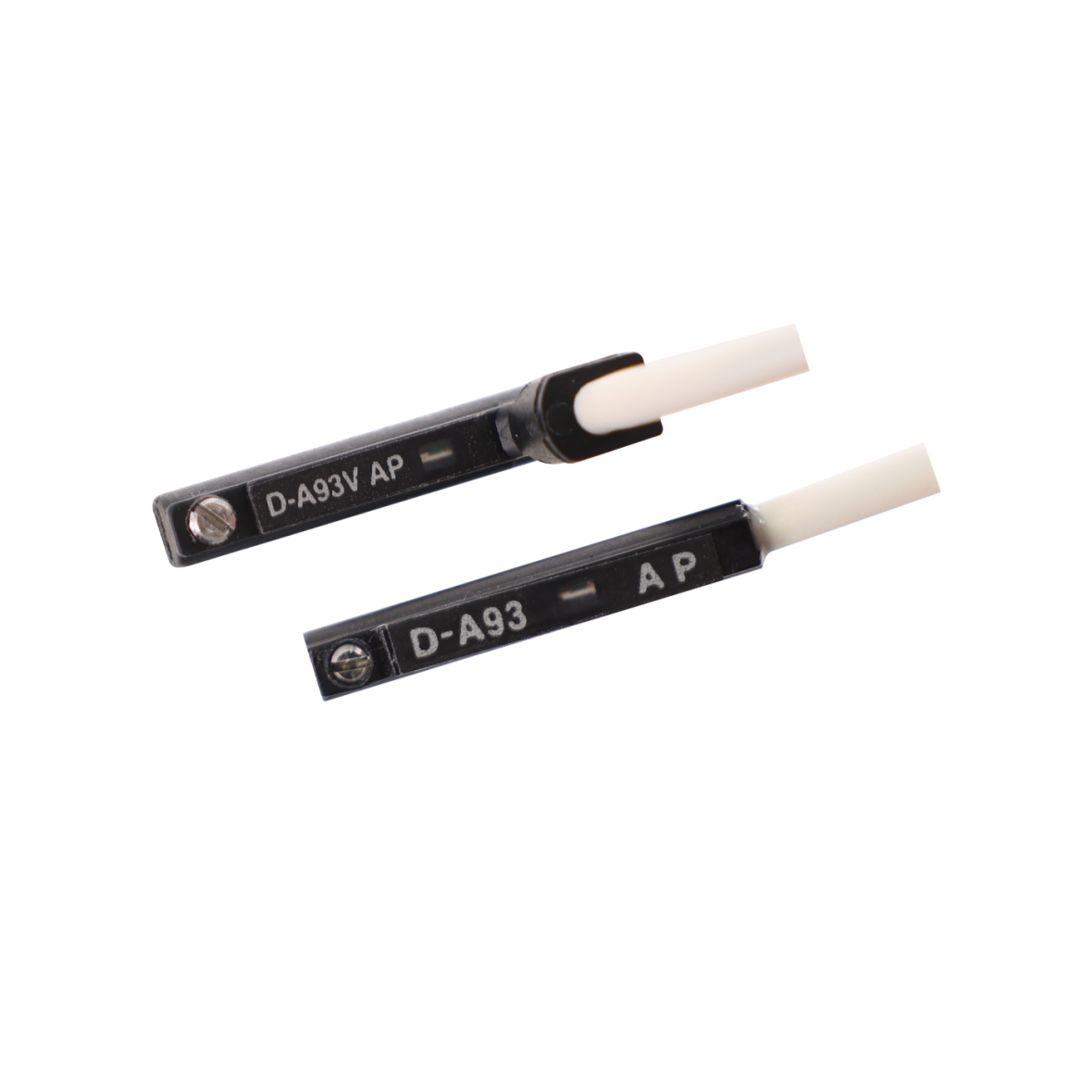

[AP] D-A93 , D-A93V (Reed SW Type)

share

Request For Quotation
1. High Durability & Reliability Withstands up to 30G shock/vibration and 1500V insulation voltage for stable operation in harsh environments. 2. IP67 Waterproof & Dustproof Fully sealed against dust and moisture, perfect for use in demanding industrial settings. 3. Fast Response Time <1ms Ensures accurate magnetic detection for high-speed automation systems. 4. Built-in Red LED Indicator Easily check switch status at a glance with a bright red LED when ON. 5. Compact & Easy Installation Available in BAR and ANGLE types with M2.5 mounting holes for simple and secure attachment.
Certification
Award
Shipping
  • Lead Time3 ~ 7days
  • Type of Freight Proceed after consultation
  • Modes of Transport Proceed after consultation
  • Products Shipped From Busan
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More
Quantity
MOQ : 30 Units

Product Summary

• Product name: [AP] D-A93, D-A93V (REED SW TYPE) • Brand name: SAEWON ELECTRONICS.CO.,LTD • Material: Machinery and Equipment>Sensor • Ingredient/raw material/material: Plastic, Vinyl cable • Color: Black • Capacity: 11g • Certification: ISO 14001, ISO 9001, CE, IP67, UKCA ,RoHS Certificate of Certified Exporter by Item for Country of Origin Certificate of Designation as a Specialized Root Technology Company Certificate of Excellent Technology Evaluation Company Certificate of In-house Research and Development Department Certificate of Registration as a Specialized Company for Materials, Parts, and Equipment Certificate of Patent Clamping Band for Auto Switches on Pneumatic Cylinders

Detailed Description

The [AP] D-A93 is a high-performance magnetic reed switch designed for pneumatic cylinders.
Built for industrial automation, it features a fast response time (<1ms),
IP67-rated waterproof and dustproof protection, and a built-in LED indicator for easy operation monitoring.
It is compatible with PLC and relay systems and is available in DC24V or AC110V models with various wire lengths and mounting styles. Compared to leading Japanese brands, it offers over 50% cost savings and a compact design that allows easy installation even in tight spaces.


Leakage Current: None
Lead Wire: Oil resistant vinyl jacket VW-1
Jacket: 2.6Ø mm(Grey)
Conductor: 0.08 × 30(coil)
Shock/Vibration: 30G
Insulation: Up to 50 at DC500V Between case & Lead wire
Endurance Voltage: For 1 Min under AC1500V Between case & Lead wire
Temperature Range: -10~60℃
Enclosure: IP67
Response Time: Less than 1msec
