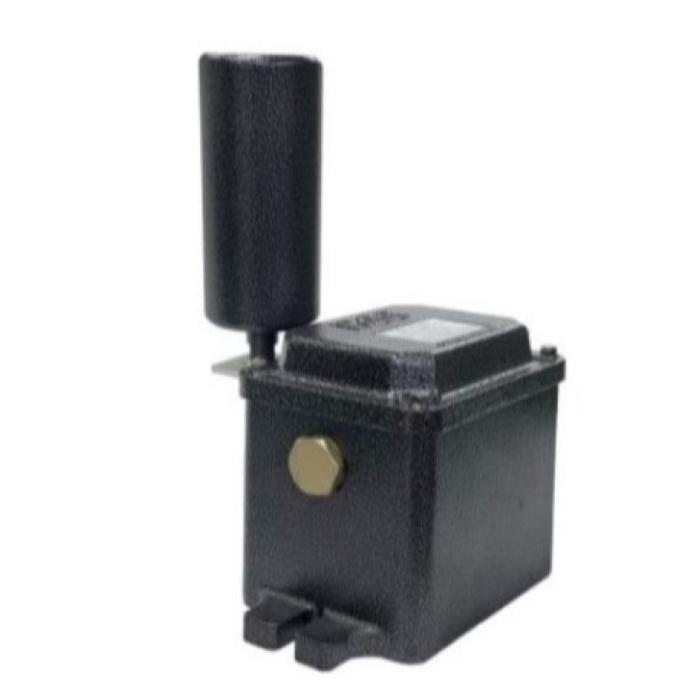

Explosion Proof Belt Sway(alignment)Switch for Conveyor (Upper cover Type)
$275.00 pcs
This is conveyor belt safety switch,
When the conveyor belt deviates from the normal position, the switch roller meanders together and the conveyor belt is stopped in an emergency.
The detection contact is composed of two stages, so it can be connected by distinguishing between alarm and stop.
It is excellent for maintenance and waterproofing by using the cover top opening and closing method, and it is also convenient to use with the auto reset.
This product has received explosion-proof safety certification from the KOSHA.
Protection Grade: Ex tD A21 T85 IP67(Explosion Proof)
When the conveyor belt deviates from the normal position, the switch roller meanders together and the conveyor belt is stopped in an emergency.
The detection contact is composed of two stages, so it can be connected by distinguishing between alarm and stop.
It is excellent for maintenance and waterproofing by using the cover top opening and closing method, and it is also convenient to use with the auto reset.
This product has received explosion-proof safety certification from the KOSHA.
Protection Grade: Ex tD A21 T85 IP67(Explosion Proof)
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Product Summary
• Product name: Belt sway switch
• Brand name: DSS Co., Ltd.
• Model Number: DBSS-20
• Type: Auto Reset
• Application: Conveyor Belt
• Size/Dimension: 134 x 274 x 170 (mm)
• Feature: Easy to wire with 2-step contact points. Convenient to use with Auto Reset.
• Warranty: 36 months after shipment
• Certification: EX tD A21 T85 IP67(Explosion Proof)
• Brand name: DSS Co., Ltd.
• Model Number: DBSS-20
• Type: Auto Reset
• Application: Conveyor Belt
• Size/Dimension: 134 x 274 x 170 (mm)
• Feature: Easy to wire with 2-step contact points. Convenient to use with Auto Reset.
• Warranty: 36 months after shipment
• Certification: EX tD A21 T85 IP67(Explosion Proof)
Detailed Description
This is conveyor belt safety switch,
When the conveyor belt deviates from the normal position, the switch roller meanders together and the switch stops the conveyor belt in an emergency.
The detection contact is composed of two stages, so it can be connected by distinguishing between alarm and stop.
It is excellent for maintenance and waterproofing by using the cover top opening and closing method, and it is also convenient to use with the auto reset.
This product has received explosion-proof safety certification from the Korea Occupational Safety and Health Agency.
Protection Grade: Ex tD A21 T85 IP67(Explosion Proof)
