PLC-Based Smart Farm Control System

Product Overview

The MaaS UI 1.0-PLC is an integrated smart farm control panel designed to connect hydroponic greenhouses with the MaaS UI AIaaS-API Cloud Platform. Built on an industrial PLC architecture, the system seamlessly integrates sensors, nutrient systems, environmental control equipment, and cloud-based AI services into a single intelligent control solution.

By continuously collecting real-time environmental and irrigation data, the system enables automated cultivation management, AI-driven yield prediction, and precision environmental control for maximum productivity.

Intelligent Environmental Monitoring

The system collects real-time data through three sensor node boxes, monitoring six critical environmental and nutrient parameters:

• Temperature
• Humidity
• CO₂ Concentration
• Solar Radiation (Insolation)
• EC (Electrical Conductivity)
• pH

In addition, the PLC records daily cumulative irrigation volume and irrigation frequency through the integrated nutrient solution and flow meter system.

Smart Irrigation & Equipment Control

The PLC panel automatically controls various greenhouse devices using Modbus RS485 communication and industrial I/O modules.

The system supports:

• Nutrient solution system integration
• Flow meter monitoring
• Automatic irrigation control
• Irrigation frequency management
• 8 Window Openers
• 10 Air Circulation Fans
• 2 Exhaust Ventilation Fans
• DC Relay Switch Control
• Modbus Inverter Communication

This enables precise environmental management while minimizing labor and operating costs.

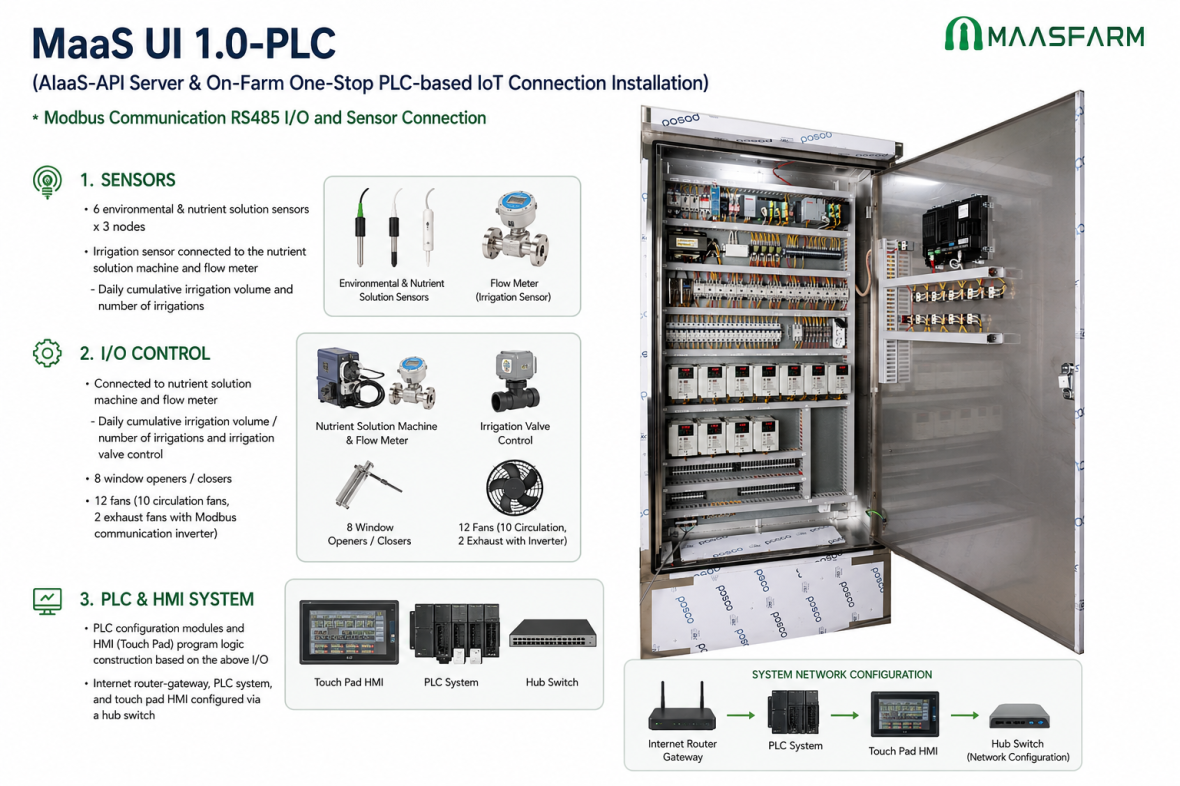

PLC & HMI Integrated Architecture

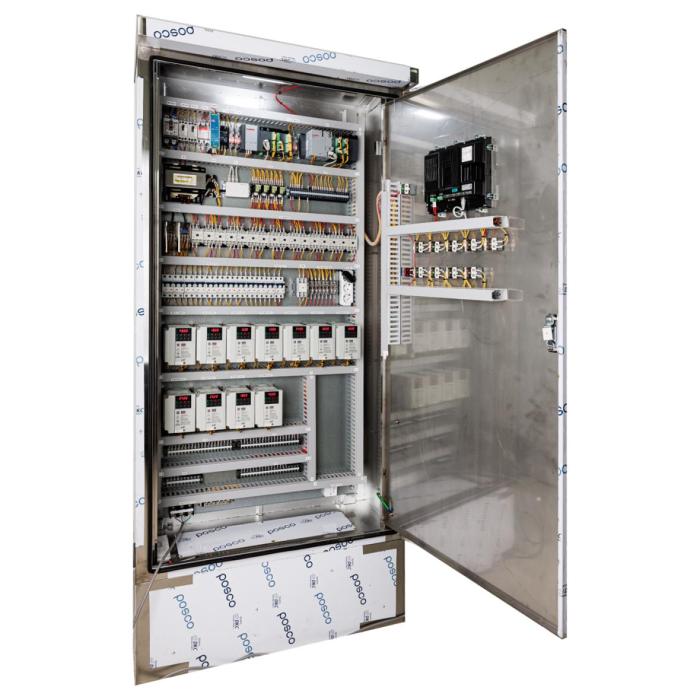

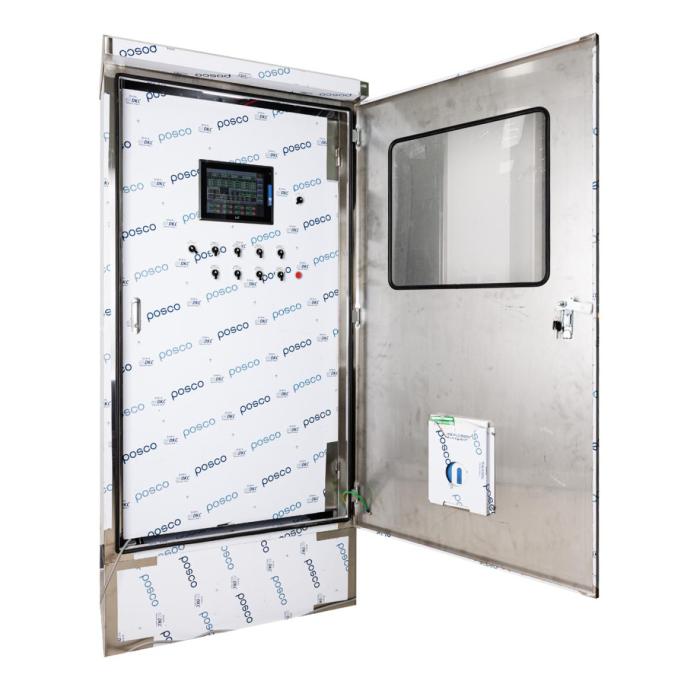

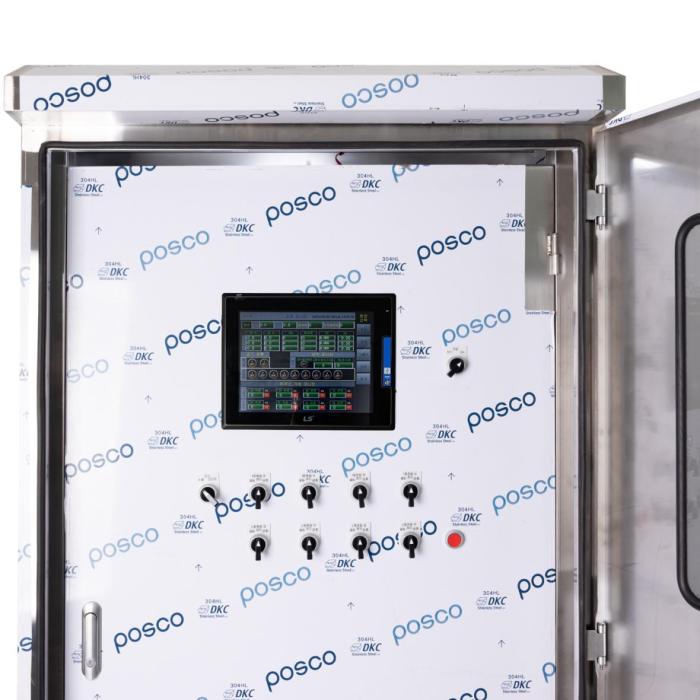

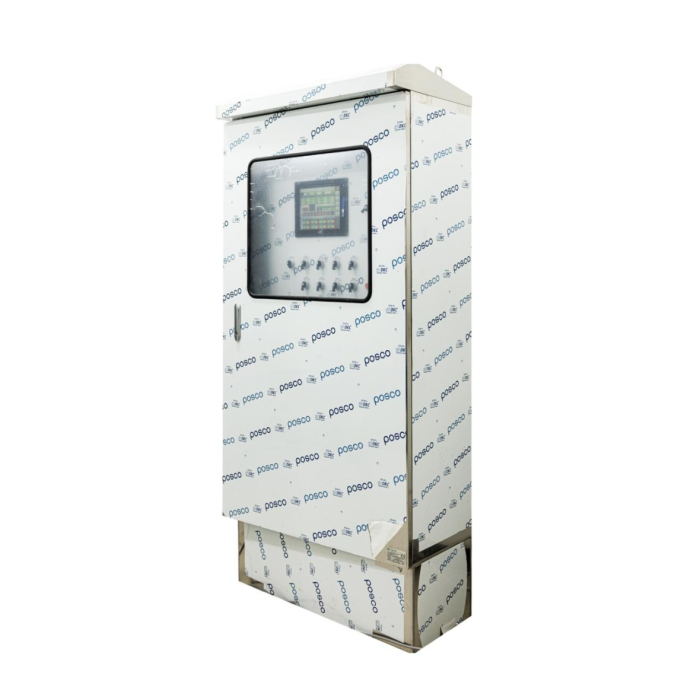

The control panel incorporates industrial-grade PLC modules together with an intuitive HMI touch panel.

The integrated system includes:

• Industrial PLC Controller
• Touch Panel HMI
• Internet Router
• Mini-PC
• Hub Switch
• Sensor Network
• Nutrient Solution Controller

All field devices communicate through a centralized PLC system for stable and reliable operation.

AI Cloud Connectivity

The MaaS UI 1.0-PLC communicates directly with the AIaaS-API Cloud Server, enabling continuous synchronization between greenhouse equipment and cloud-based AI services.

The cloud platform provides:

• Real-Time Monitoring
• Remote Equipment Control
• Environmental Data Management
• AI Yield Prediction
• Automatic Cultivation Recommendations
• Production Data Analysis

Precision Agriculture with AI

Using continuously accumulated environmental data, the platform generates AI-based cultivation models that predict tomato production according to current growing conditions.

The system analyzes environmental changes in real time and automatically recommends optimized cultivation strategies for higher productivity.

Key Features

• PLC-Based Industrial Smart Farm Controller
• Modbus RS485 Communication
• AI Cloud Integration
• Real-Time Environmental Monitoring
• Automatic Irrigation Management
• Smart Ventilation & Window Control
• HMI Touch Panel Operation
• Yield Prediction Based on AI Analytics
• Remote Monitoring via Cloud Platform
• Precision Hydroponic Greenhouse Control

System Benefits

• Fully Automated Greenhouse Operation
• AI-Driven Precision Farming
• Improved Crop Yield
• Reduced Labor Costs
• Stable Environmental Control
• Centralized Equipment Management
• Reliable Industrial PLC Architecture
• Scalable Cloud-Based Smart Farming Solution
