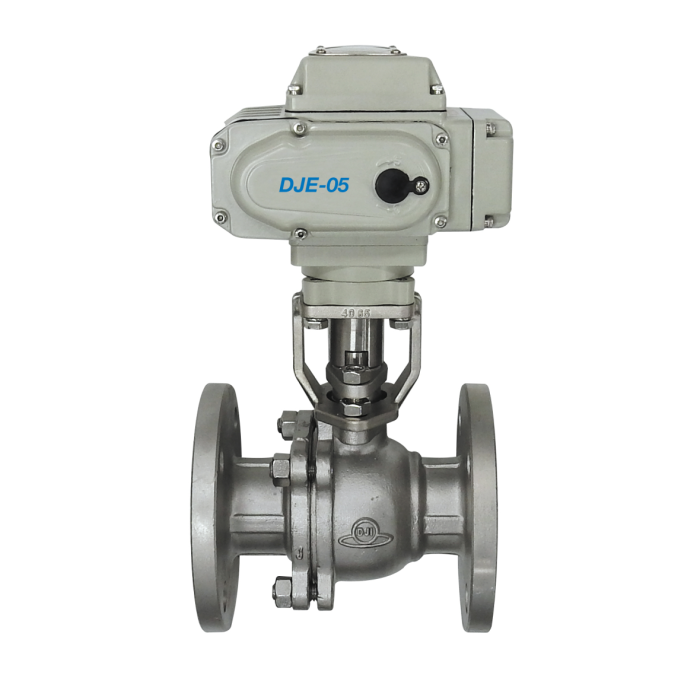

2-Way Electric Ball Valve - Flange Type
even when installed outdoors
• Single-phase (AC 110/220V), three-phase (AC 380/440V), DC 24V, etc.
can be selected by the customer
• OPEN & CLOSE and proportional control (Order specification) are also
possible.
• Indicators allow you to check the operation
• Can be manually operated

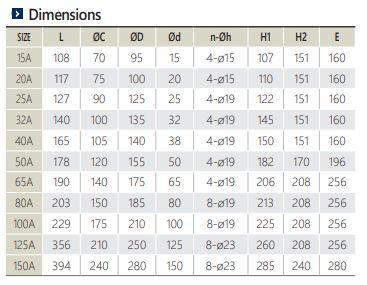

[Dimensions]
SIZE L ØC ØD Ød n-Øh H1 H2 E
15A 108 70 95 15 4-ø15 107 151 160
20A 117 75 100 20 4-ø15 110 151 160
25A 127 90 125 25 4-ø19 122 151 160
32A 140 100 135 32 4-ø19 145 151 160
40A 165 105 140 38 4-ø19 150 151 160
50A 178 120 155 50 4-ø19 182 170 196
65A 190 140 175 65 4-ø19 206 208 256
80A 203 150 185 80 8-ø19 213 208 256
100A 229 175 210 100 8-ø19 225 208 256
125A 356 210 250 125 8-ø23 260 208 256
150A 394 240 280 150 8-ø23 285 240 280
- Certification
-
- Award
-
- Shipping
-
- Products Shipped From PUSAN
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Detailed Description
• The connection is treated with an O-ring, so it is completely waterproof even when installed outdoors
• Single-phase (AC 110/220V), three-phase (AC 380/440V), DC 24V, etc. can be selected by the customer
• OPEN & CLOSE and proportional control (Order specification) are also possible.
• Indicators allow you to check the operation
• Can be manually operated
Caution
• Check the conditions of use (pressure, temperature, pressure difference when closed)
• Application fluid confirmation
• Voltage check
Body Stianless Steel
Trim Stianless Steel, Teflon
Applicable Fluid Water, Air
Working Pressure Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature 5℃ ~ 80℃
Connection Method KS 10K RF FLANGE
▪ The specifications can be changed or revised without giving any notice for the quality improvements
