Polymer Cut Out Switch
■Advantages of Polymer COS
1. Simple and sturdy structure, convenient to use.
2. Lightweight, simple and inexpensive construction and maintenance.
3. Excellent performance when used in areas with severe pollution such as islands, industrial complexes, and coastal areas where
damage resistance is required.
4. Prevents human casualties due to power outage accidents caused by currents and damage to equipment when using magnetic
devices, and ensures excellent safety.
- Certification
-
- Award
-
- Shipping
-
- Lead Time40 ~ 120days
- Type of Freight MT
- Modes of Transport FOB
- Products Shipped From Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 500 Pieces
Product Summary
• Brand name (Company/Brand name): Cob International Co., Ltd.
• Type (Type): General type and load-breaker type
• Feature (Feature): The structure is simple and sturdy, making it convenient to use.
Detailed Description
Product

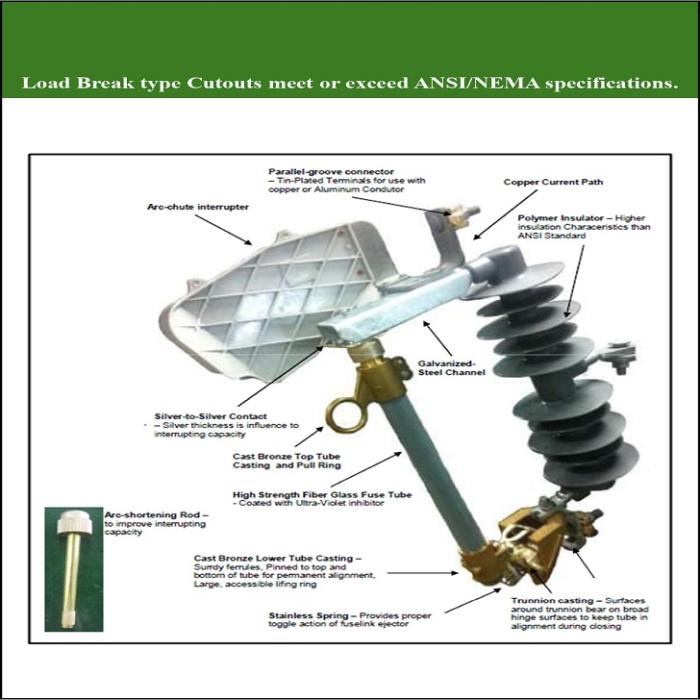

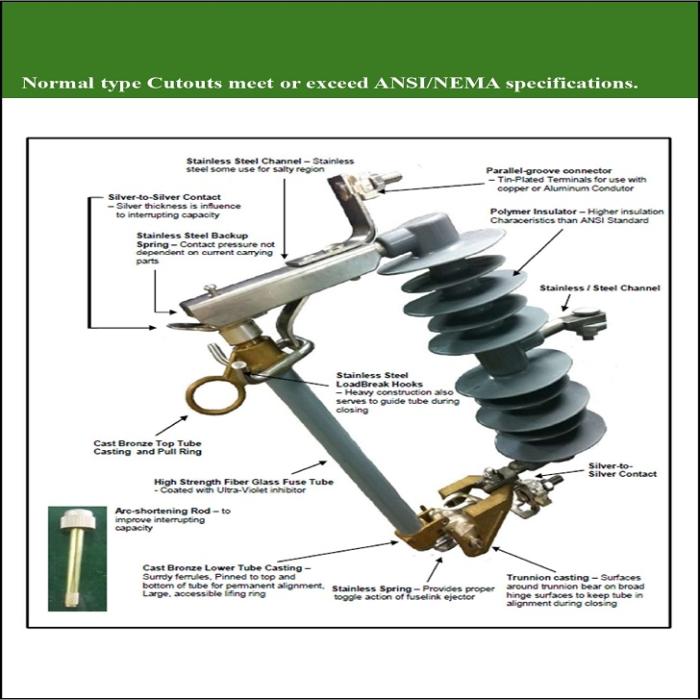

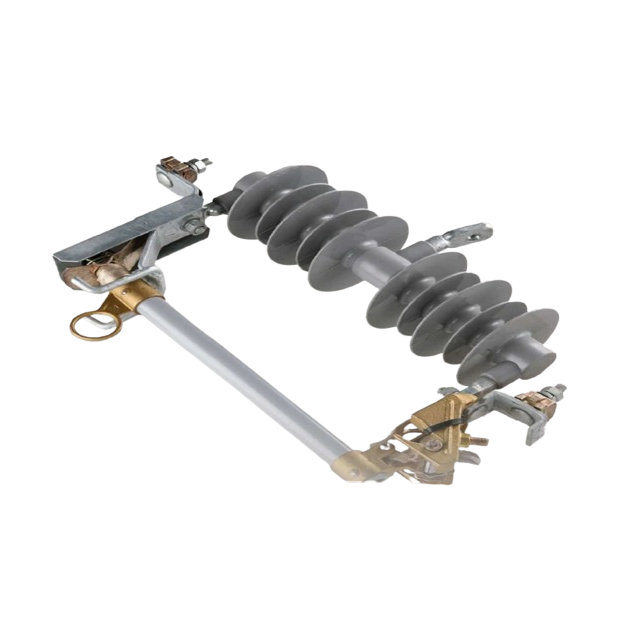

Polymer cutout switches for general and load-shedding types (15kV~36kV, 100A and 200A)
■Advantages of polymer COS
1. Simple and sturdy structure, easy to use.
2. Lightweight, simple and inexpensive to construct and maintain.
3. Excellent performance when used in areas with high pollution such as islands, industrial complexes, and coastal areas where pollution resistance is required.
4. Excellent safety is ensured, preventing casualties from power outages caused by currents and damage to equipment when using self-powered devices.
- COV Fuse holders are interchangable with most other manufactures within the same voltage class
- Inner core is made from Epoxy Impregnated fiber glass rod.
- All hardware is made from non-corrosive brass and stainless steel components.
- The silicone rubber for the housing with its excellent hydrophobisity helps ensure the switch does not
accumulate contamination.
- High resistance to Ozone and UV
- Lager leakage distances add longer life to the switches.
- Rating: 15kV(125BIL), 27kV(150BIL), 36kV(170BIL) / 100A and 200A / Normal type and Load Break type
