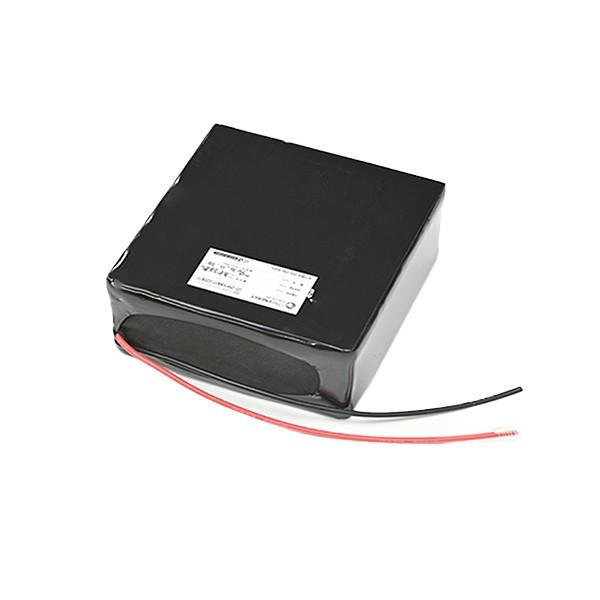

LFP32700 4S4P 12.8V 24AH Lithium Iron Phosphate Battery Pack
**Geumgang Energy Solution Co., Ltd.** is contributing to creating a sustainable world based on battery pack, BMS (Battery Management System), and safety monitoring system technologies.
The basic input/output connector of this battery is **XT60 (female)**.
Additional costs may apply when changing the connector or adding a conversion adapter.
(If the customer provides the connector, modifications are possible without additional cost.)
100% Domestically Developed
Cell Type: 32700 LiFePO4, 6,000mAh per cell
Total Capacity: 24,000mAh
Size:
B Type (Rectangular): 140 x 74 x 140 (mm)
Charging: 12.8V / MAX 14.6A
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Product Summary
Cell Type: 32700 LiFePO4, 6,000mAh per cell
Total Capacity: 24,000mAh
Size:
B Type (Rectangular): 140 x 74 x 140 (mm)
Charging: 12.8V / MAX 14.6A
• Warranty (Warranty period) 12 months
• Certification (Certification) KC certification
Detailed Description
100% Domestically Developed
Cell Type: 32700 LiFePO4, 6,000mAh per cell
Total Capacity: 24,000mAh
Size:
-
B Type (Rectangular): 140 x 74 x 140 (mm)
Charging: 12.8V / MAX 14.6A
Precautions Before Purchase:
The following actions are strictly prohibited as they may lead to the risk of burns, electric shock, fire, or explosion. The manufacturer and seller will not be held responsible for any issues arising from such actions.
Safety Precautions:
1. Actions that may cause moisture to penetrate the inside of the battery, such as cleaning with water.
2. Charging with wet hands Actions.
3. Exposing the battery to direct sunlight for a long period of time or overheating it.
4. Leaving the battery near children or pets.
5. Storing it in a rainy or snowy place or in a humid place.
6. Arbitrarily disassembling or modifying the battery.
7. Dropping or impacting the battery.
Charging instructions:
1. Charging temperature: 0ºC ~ 45ºC, -20ºC ~ -60ºC, 25ºC ± 3ºC
2. Be sure to use a dedicated charger that is suitable for the voltage range of the battery.
3. Be careful not to reverse the polarity when charging. Incorrect polarity connection may damage the protection circuit and the battery.
4. If overheating occurs during charging, immediately stop charging and discharging, disconnect the battery from the charger, and contact the manufacturer.
5. Use the specified charger and charge in compliance with the charging conditions.
6. The charging current and voltage must be lower than the maximum charging current and voltage specified for the product.
7. If stored for more than 2 months, it should be stored at 70-80% charge.
8. Disconnect the charger when the battery is fully charged.
9. Turn off the charger and stop charging when leaving the area.
10. The charger is a separately purchased product.
11. The charging time must be managed appropriately.
Disposal instructions:
1. Used batteries Do not dispose of carelessly.
2. Do not incinerate or burn the battery. This may cause an explosion or fire.
3. Do not throw away the battery with household waste, but be sure to recycle and dispose of it separately.
4. When disposing of secondary cells or batteries, dispose of batteries with different electrochemical systems separately.
5. Dispose of batteries in a discharged state to prevent heat generation due to short circuit.
