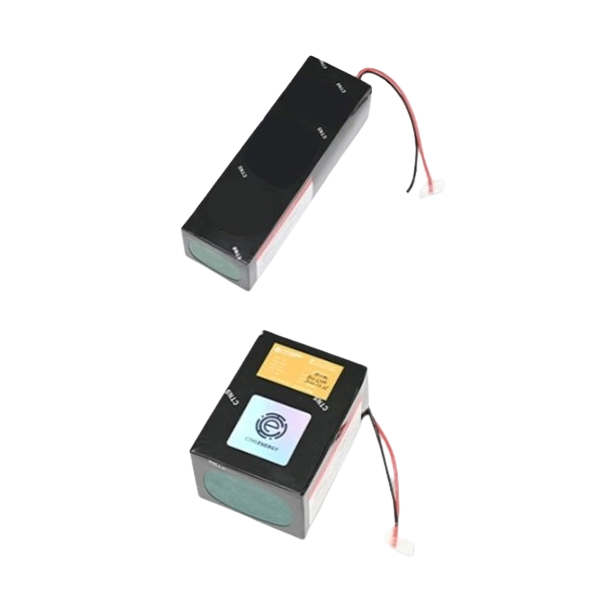

36V 15Ah 10S3P Battery

**KUMKANG Energy Solution Co., Ltd.** is contributing to creating a sustainable world based on battery pack, BMS (Battery Management System), and safety monitoring system technologies.

The default input/output connector of this battery is **XT60 (female)**.

Additional costs may apply when changing the connector or adding a conversion adapter.

(If the customer provides the connector, modification is possible without additional cost.)

Product Specifications:
Configuration: 36V 15Ah 10S3P (10 cells in series, 3 cells in parallel)

Rated voltage: 36.3V

Voltage range: 25V ~ 42V

Capacity: 14.7Ah

Output: 534W

Size: 85*235*75mm or 145*125*75mm

Weight: 2.2kg

Charging mode: CC-CV Mode (Constant Current - Constant Voltage)

Maximum Charge Current: 10A

Discharge Mode: CC Mode (Constant Current)

Maximum Discharge Current: 30A

Operating Temperature (Charge): 0ºC ~ 45ºC

Operating Temperature (Discharge): -20ºC ~ 60ºC

Storage Temperature (Months): -20ºC ~ +45ºC

Long-term Storage Temperature (6 months): 23ºC ± 2ºC

Long-term Storage Temperature: 23ºC ± 2ºC

Precautions before purchasing:
The following actions are absolutely prohibited as they may result in the risk of burns, electric shock, fire or explosion, and the manufacturer and seller are not responsible for any problems resulting from them.

Safety Precautions:
1. Actions that may cause moisture to penetrate the inside of the battery, such as cleaning with water.

2. Charging with wet hands.

3. Actions that expose the battery to direct sunlight for a long time or cause it to overheat.

4. Do not leave the battery near children or pets. Actions.

5. Storing in rainy or snowy places, or in humid places.

6. Arbitrarily disassembling or modifying the battery.

7. Dropping or impacting the battery.

Charging instructions:

1. Charging temperature: 0ºC ~ 45ºC, -20ºC ~ -60ºC, 25ºC ± 3ºC

2. Be sure to use a dedicated charger suitable for the voltage range of the battery.

3. Be careful not to reverse the polarity when charging. Incorrect polarity connection may damage the protection circuit and the battery.

4. If overheating occurs during charging, stop charging and discharging immediately, disconnect the battery from the charger, and contact the manufacturer.

5. Use the specified charger and charge in compliance with the charging conditions.

6. The charging current and voltage should be lower than the maximum charging current and voltage specified for the product.

7. If stored for more than 2 months, it should be stored with a charge of 70-80%.

8. Disconnect the charger when the battery is fully charged.

9. Turn off the charger and stop charging when leaving it unattended.

10. The charger is a separately purchased product.

11. The charging time should be managed appropriately.

Disposal Instructions:

1. Do not dispose of used batteries arbitrarily.

2. Do not incinerate or burn the battery. Explosion or fire may occur.

3. Do not throw away batteries with household waste, but be sure to recycle and dispose of them separately.

4. When disposing of secondary cells or batteries, dispose of batteries with different electrochemical systems separately.

5. Dispose of batteries in a discharged state to prevent heat generation due to short circuit.
