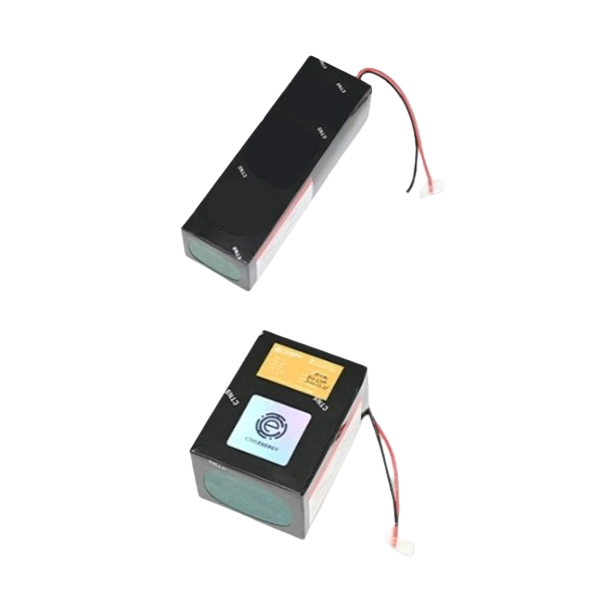

Product Name: 36V 30Ah 10S6P Battery
Brand Name: Kumkang Energy Solution Co., Ltd.
Model Number: 36V 30Ah 10S6P Battery
Material: Lithium-ion battery (Li-ion battery)
Usage: Electric bicycle, electric scooter battery
Usage: Installation location
Features: Lithium-ion
Size: 145*245*75mm or 210*70*75mm
Color: Black
Warranty Period: 12 months
Certification: KC Certification

36V 30Ah 10S6P Battery

**kumkang Energy Solution Co., Ltd.** is contributing to creating a sustainable world based on battery pack, BMS (Battery Management System), and safety monitoring system technology.

The default input/output connector of this battery is **XT60 (female)**.

Additional costs may be incurred when changing the connector or adding a conversion adapter.

(If the customer provides the connector, Modification is possible without additional cost.)

Product Specifications:
Configuration: 36V 30Ah 10S6P (10 cells in series, 6 cells in parallel)

Rated voltage: 36.3V

Voltage range: 25V ~ 42V

Capacity: 29.4Ah

Output: 1080W

Size: 145*245*75mm or 210*70*75mm

Weight: 4.4kg

Charging mode: CC-CV mode (constant current - constant voltage)

Maximum charging current: 10A

Discharging mode: CC mode (constant current)

Maximum discharge current: 30A

Operating temperature (charge): 0ºC ~ 45ºC

Operating temperature (discharge): -20ºC ~ 60ºC

Storage temperature (months): -20ºC ~ +45ºC

Long-term storage temperature (6 months): 23ºC ± 2ºC

Long-term storage temperature: 23ºC ± 2ºC

Precautions before purchasing:
The following actions may cause burns, electric shock, fire or explosion, so they are absolutely prohibited, and the manufacturer and seller are not responsible for any problems resulting from them.

Safety precautions:
1. Actions that may cause moisture to penetrate the inside of the battery, such as washing with water.

2. Charging with wet hands.

3. Exposing the battery to direct sunlight for a long time or overheating it.

4. Leaving the battery near children or pets.

5. Storing it in a rainy or snowy place or in a humid place.

6. Arbitrarily disassembling or modifying the battery.

7. Dropping or impacting the battery.

Charging instructions:

1. Charging temperature: 0ºC ~ 45ºC, -20ºC ~ -60ºC, 25ºC ± 3ºC

2. Use a dedicated charger suitable for the voltage range of the battery. Be sure to use a charger.

3. Be careful not to reverse the polarity when charging. Incorrect polarity connection may damage the protection circuit and the battery.

4. If overheating occurs during charging, immediately stop charging and discharging, disconnect the battery from the charger, and contact the manufacturer.

5. Use the specified charger and charge in compliance with the charging conditions.

6. The charging current and voltage must be lower than the maximum charging current and voltage specified for the product.

7. If stored for more than 2 months, it should be stored at 70-80% charge.

8. Disconnect the charger when the battery is fully charged.

9. Turn off the charger and stop charging when leaving it unattended.

10. The charger is a separately purchased product.

11. The charging time must be managed appropriately.

Disposal Instructions:

1. Do not dispose of used batteries arbitrarily.

2. Do not incinerate or burn batteries. Explosion or fire may occur.

3. Do not throw away batteries with household waste, but be sure to recycle and dispose of them separately.

4. When disposing of secondary cells or batteries, dispose of batteries with different electrochemical systems separately.

5. Dispose of batteries in a discharged state to prevent heat generation due to short circuit.
