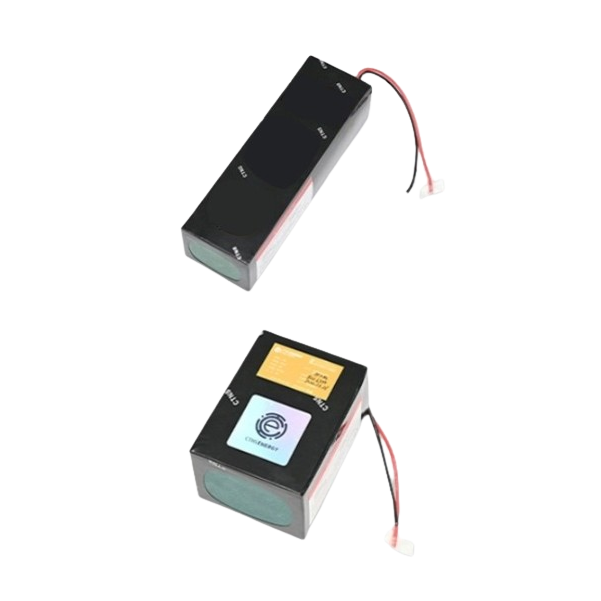

48V 20Ah 13S4P Battery Lithium-Ion
**Geumgang Energy Solution Co., Ltd.** is creating a sustainable world based on battery pack, BMS (Battery Management System), and safety monitoring system technologies.
The basic input/output connector of this battery is **XT60 (female)**.
There may be additional costs when changing the connector or adding a conversion adapter.
(If the customer provides the connector, it can be modified without additional cost.)
Product Specifications:
Configuration: 48V 20Ah 13S4P (13 cells in series, 4 cells in parallel)
Nominal voltage: 47.2V
Voltage range: 32.4V ~ 54.6V
Capacity: 19.6Ah
Output: 925W
Size: 95 * 310 * 75mm, 190 * 175 * 75mm
Weight: 3.8kg
Charging mode: CC-CV mode (Constant current - Constant voltage)
Maximum charge current: 10A
Discharge mode: CC mode (Constant current)
Maximum discharge current: 30A
Operating temperature (charge): 0ºC ~ 45ºC
Operating temperature (discharge): -20ºC ~ 60ºC
Storage temperature (months): -20ºC ~ +45ºC
Long-term storage temperature (6 months): 23ºC ± 2ºC
Long-term storage temperature: 23ºC ± 2ºC
Precautions before purchasing:
The following actions are absolutely prohibited as they may result in burns, electric shock, fire or explosion, and the manufacturer and seller are not responsible for any problems resulting from them.
Safety precautions:
Actions that may cause moisture to penetrate the inside of the battery, such as cleaning with water.
Charging with wet hands.
Prolonged exposure to direct sunlight or situations where it may be overheated.
Places near children or pets.
Places where it rains or snows, Or storing in a humid place.
Disassembling or modifying arbitrarily.
Dropping or impacting the battery.
Charging instructions:
Charging temperature: 0ºC ~ 45ºC, -20ºC ~ -60ºC, 25ºC ± 3ºC
Be sure to use a dedicated charger suitable for the voltage range of the battery.
Be careful not to reverse the polarity when charging. Incorrect polarity connection may damage the protection circuit and battery.
If overheating occurs during charging, immediately stop charging and discharging, disconnect the battery from the charger, and contact the manufacturer.
Use the specified charger and charge in compliance with the charging conditions.
The charging current and voltage must be less than the maximum charging current and voltage specified for the product.
If storing for more than 2 months, store it with a 70-80% charge.
Disconnect the charger when the battery is fully charged.
Stop charging when leaving the area.
The charger is a separate product.
Manage the charging time appropriately.
Disposal instructions:
Do not dispose of used batteries carelessly.
Incineration or disposal of batteries may cause an explosion or fire.
Do not dispose of batteries with household waste, but be sure to recycle and dispose of them separately.
When disposing of secondary batteries or batteries, separate batteries with different electrochemical systems.
To prevent heat generation due to short circuit, dispose of batteries in a discharged state.
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Product Summary
• Brand name (Company/Brand name) Geumgang Energy Solution Co., Ltd.
• Model Number (Model number) 48V 20Ah 13S4PBattery
• Material (Material) Lithium-ion battery
• Usage (Usage) Electric bicycle, electric scooter battery
• Application (Installation location)
• Feature (Feature) Lithium-ion
• Size/Dimension (Size) 195 * 310 * 75mm, 190 * 175 * 75mm
• Color (Color) Black
• Warranty (Warranty period) 12 months
• Certification (Certification) KC certification
Detailed Description
48V 20Ah 13S4P Battery Pack – Domestic Manufacture, KC Certified, Multi-Purpose Lithium-Ion Battery Pack
KUMKANG Energy Solutions Co., Ltd. creates a sustainable world based on its technology in battery packs, BMS (Battery Management Systems), and safety monitoring systems.
This battery pack's common input/output connector is XT60(f). Additional costs will apply for connector changes or conversion adapters. (However, if the customer provides the connector, no additional charge will be applied.)
Specifications:
-
Configuration: 13S4P (13 cells in series, 4 cells in parallel)
-
Nominal Voltage:47.2V
-
Voltage Range: 32.4V ~ 54.6V
-
Capacity: 19.6Ah
-
Output Power: 925W
-
Size Options: 95 * 310 * 75mm, 190 * 175 * 75mm
-
Weight: 3.8kg
-
Charging Mode: CC-CV (Constant Current - Constant Voltage)
-
Maximum Charging Current: 10A
-
Discharge Mode: CC (Constant Current) Mode
-
Maximum Discharge Current: 30A
-
Operating Temperature:
-
Charging: 0ºC ~ 45ºC
-
Discharge: -20ºC ~ 60ºC
-
-
Storage Temperature:
-
Long-term: 23ºC ± 2ºC
-
Months: -20ºC ~ +45ºC
-
-
Other Features: The standard connector is XT60(f), and additional charges apply for connector modifications.
Important Usage Guidelines: The following actions are prohibited due to the risk of overheating, burns, electric shock, fire, or explosion. The manufacturer and seller will not be responsible for any issues resulting from these behaviors:
-
Exposing the battery to moisture (e.g., cleaning with water).
-
Charging with wet hands.
-
Prolonged exposure to direct sunlight or overheating.
-
Leaving the battery near children or pets.
-
Storing in areas exposed to rain, snow, or humidity.
-
Unauthorized disassembly or modification.
-
Dropping or subjecting the battery to impact.
Charging Guidelines:
-
Charging Temperature: 0ºC ~ 45ºC (optimal), -20ºC ~ -60ºC (minimum), 25ºC ± 3ºC (recommended storage).
-
Always use a dedicated charger that matches the required voltage range.
-
Reverse Charging: Never reverse the polarity during charging (positive and negative terminals). Doing so may damage the battery protection circuit or the cells.
-
If the battery heats up during charging, immediately stop charging and discharging, disconnect the battery from the charger, and contact the manufacturer for further assistance.
-
Always use a specified charger and adhere to the recommended charging conditions.
-
The charging current and voltage should not exceed the maximum specified limits for the battery.
-
For long-term storage (more than two months), store the battery at 70-80% of its full charge.
-
Lithium batteries should never be charged for extended periods; disconnect the charger once the battery is fully charged.
-
Always stop charging when leaving the battery unattended.
-
The charger is sold separately.
-
Ensure charging time is properly regulated.
Disposal Guidelines:
-
Do not dispose of used batteries recklessly.
-
Do not incinerate or burn the battery, as this may cause an explosion or fire due to heat.
-
Do not dispose of batteries with household waste; recycle them properly.
-
When disposing of secondary cells or batteries, separate them if they have different electrochemical systems.
-
To prevent heating due to short circuits, discharge the battery before disposal.
