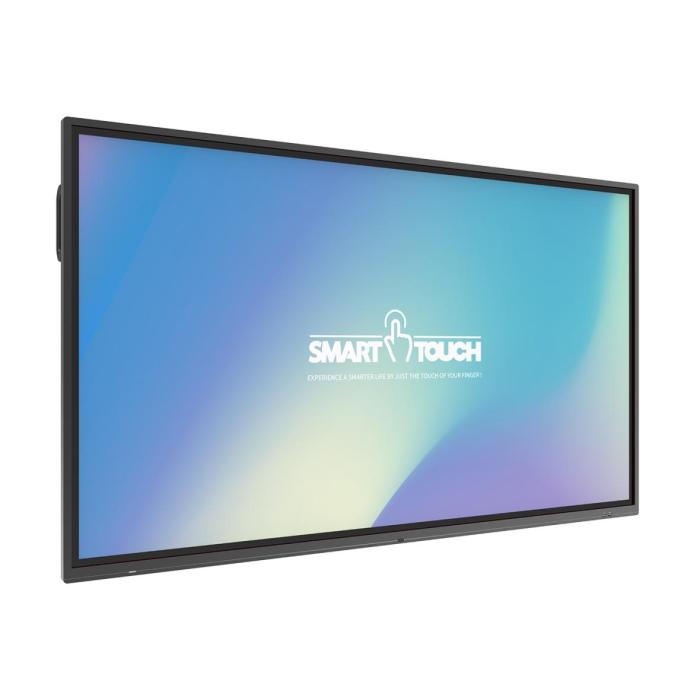

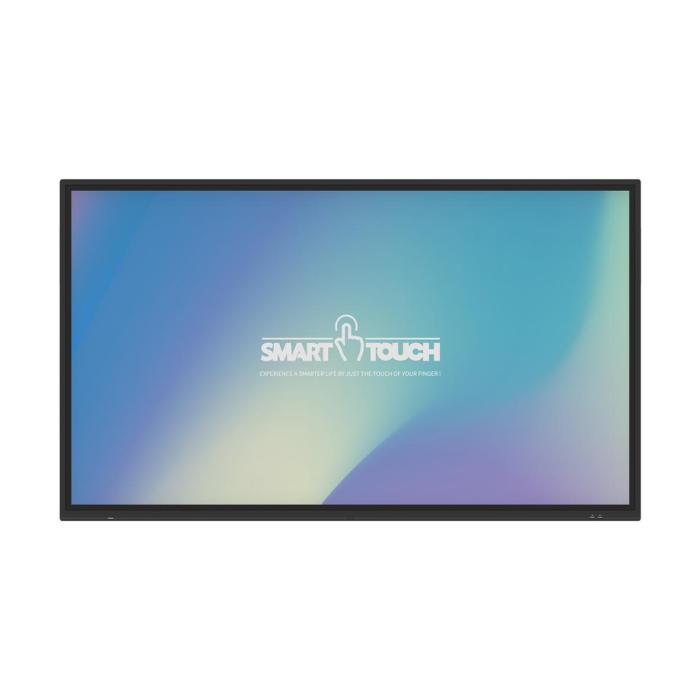

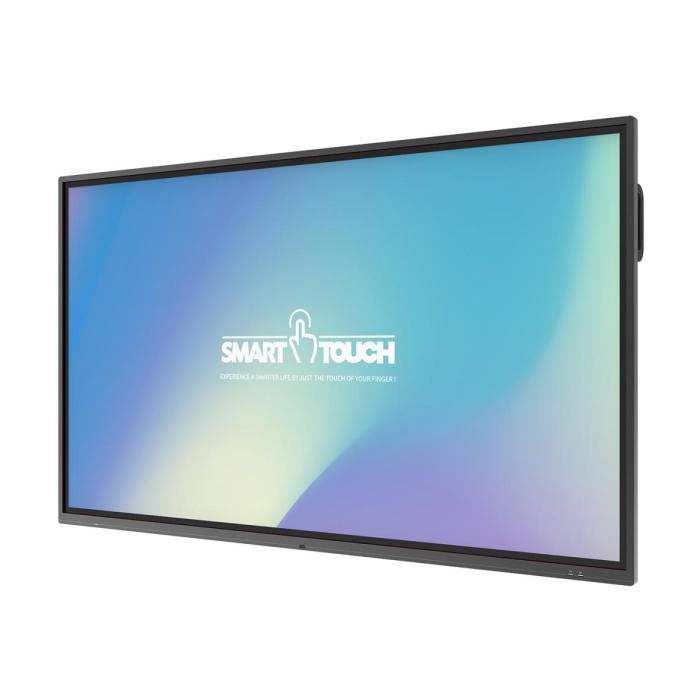

1. NEW Product Highlights – RK3576 Mainboard IFPD

V Powered by Android 14 – Optimized for speed, security, and performance
V 8GB RAM + 128GB Storage – For smooth multitasking and stable operation (up to 16G + 256G)
V Top-Tier Components – Built with the fastest sensors and high-quality materials
V Smart Touch Education Software – Same software trusted in Korea’s premium education market
V Google EDLA Support (Optional)

2. Why Partner with Smart Touch?

V Top Market Share in Korea: A proven and trusted brand leading local education technology trends
V High-Quality Solutions: Same quality and performance as our Korean domestic products
V Ongoing Firmware Updates: Regular updates with local customization available
V Sales Strategy & Training Support: Consulting and training to help grow your business
V Marketing Materials Provided: Full access to official promotional assets

SPECIFICATION

PANEL

• Panel Technology: TFT LCD

• Display Resolution: 3840 x 2160

• Brightness (Type): 400 cd/㎡

• Contrast (Type):

  • 75": 1200:1 / 65", 86": 4000:1

• Dynamic Contrast Ratio (Type): 5000:1

• Response Time (Gray to Gray): 8 ms

• Frame Rate: 60 Hz

• Viewing Angle (H/V): 178° / 178°

• Backlight Type: Direct LED

• Service Life: >30,000 Hours

• NTSC: 72%

• Installation: Landscape

Front Glass

• Type: Anti-Glare

• Thickness: 3 mm

TOUCH

• Detection Method: Infrared

• Available Touch Point: 50 points (10 points with Φ3mm)

• Response Time (Type): ≤16.7 ms

• Minimum Response Size: ≥1.5 mm (80% zone)

• Ink In Tools: Yes

• Scan Rate: ≥500 Hz

• Touch Resolution: 32768 x 32768

• Communication Interface: USB

CONNECTIVITY

• HDMI In: 2 (1 Side / ARC, 1 Front HDMI 1)

• HDMI Out: 1 (Side)

• VGA Input(s): 1 (Bottom, DE-15F)

• VGA Audio Input(s): 1 (Bottom, 3.5 mm Mini Jack)

• LINE OUT: 1 (Bottom, Mini Jack)

• USB 2.0: 2 (Side, Type-A)

• USB 3.0: 3 (Side, Type-A)

• Digital Audio Out: 1 (Bottom, Optical)

• DisplayPort In: 1 (Side, DP 1.2)

• USB Type C (DP1.2+TOUCH USB): 1 (Side, Type-C)

• USB C Out: 1 (Side, Type-C)

• RS-232C: 1 (Bottom, DB-9F)

• MIC IN: 1

• LAN In: 1 (Bottom, RJ45, 10/100/1000 BaseT)

• LAN Out: 1 (Bottom, RJ45, 10/100/1000 BaseT)

• Wi-Fi Module (Built-in): 1 x 802.11ax (Wi-Fi 6)

• Touch Out: 1 (Side, USB Type-B 3.0)

• Bluetooth: v5.3

CONNECTIVITY (Front)

• USB 3.0: 2 (Type-A)

• USB Type C: 1 (DP1.2 + TOUCH USB + 65W Power Delivery)

• HDMI In: 1 (Type 2.0)

• Touch Out: 1 (Type-B 3.0)

OPS Board

• OPS Slot: 1 (Intel Spec 80 Pin)

SOUND

• Audio Power Output: 20W x 2

• Subwoofer: 20W

• Speaker Position: Front Firing

Embedded System

• CPU: ARM Cortex A72 x 4 + ARM Cortex A53 x 4

• GPU: ARM Mali G52 MC3

• Operating System: Android 14.0

• RAM: 8 GB

• Internal Storage: 128 GB

Mic-array

• Mic-array: Optional

Camera

• Camera: Optional

Additional Features

• NFC Reader/Writer: Yes

• Light Sensor: Yes

• Human Body Induction: Yes

• Fingerprint: Optional

POWER

• Power Supply: AC 100-240 V, 50/60 Hz

• Power Consumption (in Operation): TBD

• Power Consumption (in Standby): ≤0.5 W

ENVIRONMENTAL

• Front Glass: Tempered Glass (Anti-glare Type)

• Operation Temperature: 5 - 35℃

• Storage Temperature: -15 - 45℃

• Operation Humidity: 20 - 80% RH (No Condensation)

• Storage Humidity: ≤80% RH
