- PID
- 3736868

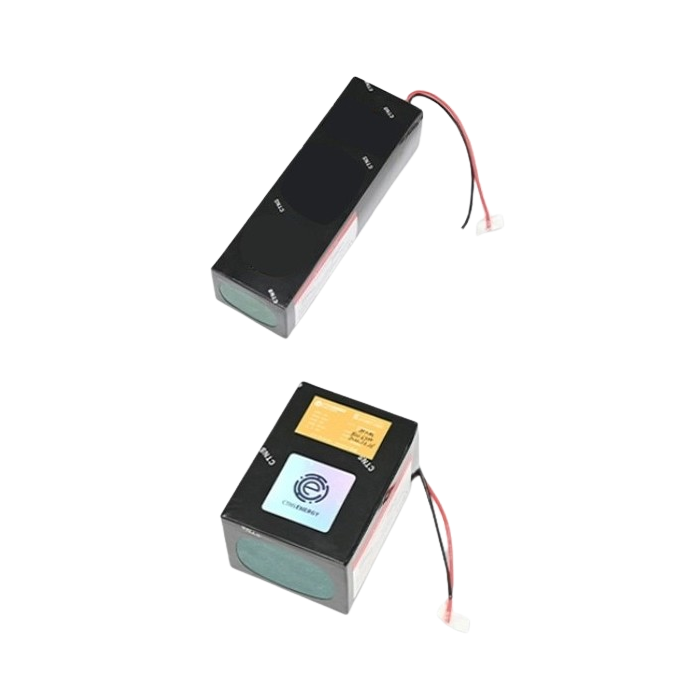

52V 30Ah 14S6P Battery Lithium-Ion
*KUMKANG Energy Solution Co., Ltd.** is creating a sustainable world based on battery pack, BMS (Battery Management System), and safety monitoring system technologies.

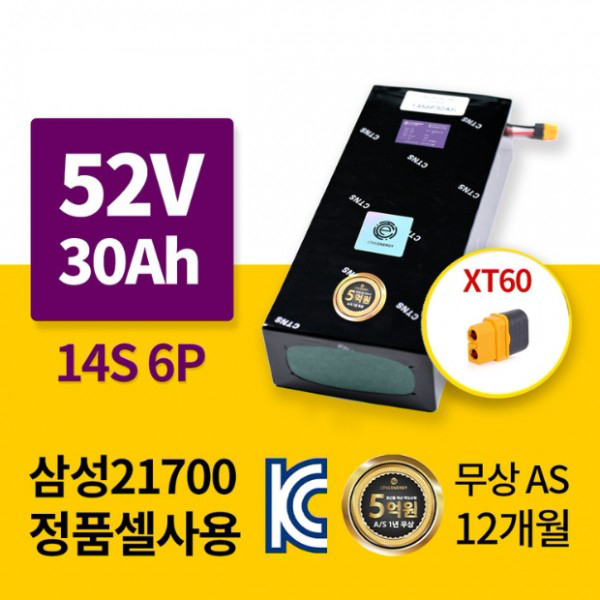

The basic input/output connector of this battery is **XT60 (female)**.
There may be additional costs when changing the connector or adding a conversion adapter.
(If the customer provides the connector, it can be modified without additional cost.)
Product Specifications:
Composition: 14S6P (14 cells in series, 6 cells in parallel)
Nominal voltage: 50.82V
Voltage range: 35V ~ 58.8V
Capacity: 29.4Ah
Output: 1494W
Size: 145 * 335 * 75mm, 240 * 210 * 75mm
Weight: 6kg
Charging mode: CC-CV mode (Constant Current - Constant voltage)
Maximum charging current: 10A
Discharge mode: CC mode (Constant current)
Maximum discharge current: 30A
Operating temperature (charge): 0ºC ~ 45ºC
Operating temperature (discharge): -20ºC ~ 60ºC
Storage temperature (months): -20ºC ~ +45ºC
Long-term storage temperature (6 months): 23ºC ± 2ºC
Long-term storage temperature: 23ºC ± 2ºC
Precautions before purchasing:
The following actions are absolutely prohibited as they may result in burns, electric shock, fire or explosion, and the manufacturer and seller are not responsible for any problems caused by them.
Safety precautions:
Actions that may cause moisture to penetrate the inside of the battery, such as cleaning with water.
Charging with wet hands.
Prolonged exposure to direct sunlight or overheating.
Place near children or pets.
Do not store in rainy or snowy places or in humid places. Actions.
Disassembling or modifying arbitrarily.
Dropping or impacting the battery.
Charging instructions:
Charging temperature: 0ºC ~ 45ºC / Discharge temperature -20ºC ~ -60ºC / Storage temperature 25ºC ± 3ºC
You must use a dedicated charger suitable for the voltage range of the battery.
Be careful not to reverse the polarity when charging. Incorrect polarity connection may damage the protection circuit and battery.
If overheating occurs during charging, immediately stop charging and discharging, disconnect the battery from the charger, and contact the manufacturer.
Use the specified charger and charge in compliance with the charging conditions.
The charging current and voltage must be less than the maximum charging current and voltage specified for the product.
If storing for more than 2 months, store it with a 70-80% charge.
Disconnect the charger when the battery is fully charged.
Stop charging when leaving the area.
The charger is a separate product.
Manage the charging time appropriately.
Disposal instructions:
Do not dispose of used batteries carelessly.
Incineration or disposal of batteries may cause an explosion or fire.
Do not dispose of batteries with household waste, but be sure to recycle and dispose of them separately.
When disposing of secondary batteries or batteries, separate batteries with different electrochemical systems.
To prevent heat generation due to short circuit, dispose of batteries in a discharged state.
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Product Summary
• Brand name (Company/Brand name) Geumgang Energy Solution Co., Ltd.
• Model Number (Model number) 52V 30Ah 14S6P Battery
• Material (Material) Lithium-ion battery
• Usage (Usage) Electric bicycle, electric scooter battery
• Application (Installation location)
• Feature (Feature) Lithium-ion
• Size/Dimension (Size) 145*335*75mm
240*210*75mm
• Color (Color) Black
• Warranty (Warranty period) 12 months
• Certification (Certification) KC certification
Detailed Description
52V 30Ah 14S6P battery, domestically manufactured, KC certified, domestically produced, multi-purpose lithium-ion battery pack
KUMKANG Energy Solution Co., Ltd. creates a sustainable world based on battery pack, BMS, and safety control system technologies.
The basic input/output common connector of the battery is XT60(f).
A separate cost will be incurred when changing the connector / adding a converter.
(However, if the customer provides the connector, the work can be done without additional cost)
Composition 14s 6p
Nominal voltage 50.82v
Voltage range 35~58.8v
Capacity 29.4ah
Output 1494w
Size 145*335*75mm
240*210*75mm
Weight 6kg
Charging mode cc-cv mode
Maximum charging current 10a
Discharging mode cc mode
Maximum discharge current 30a
Using temperature chargge 0ºc ~45ºc
Discharge -20ºc ~ 60ºc
Storage temperature months -20ºc ~+45ºc
6 months 23ºc +-2ºc
Long time storage 23ºc ~+-2ºc
Check before purchasing
The following actions may cause burns, electric shock, fire, and explosion due to overheating, so they are absolutely prohibited
And the manufacturer and seller are not responsible for any problems arising therefrom.
Safety Precautions
01. Do not allow moisture to penetrate inside, such as by cleaning with water
02. Charge with wet hands
03. Do not expose to direct sunlight for long periods of time or overheat
04. Do not leave the product near children or pets
05. Do not store the product in a snowy or rainy place or in a humid place
06. Do not disassemble or modify it arbitrarily
07. Drop it or subject it to impact
Charging Instructions
01. Charging temperature: 0ºc~45ºc / -20ºc ~ -60ºc / 25ºc +-3ºc
02. When charging, use a dedicated charger that matches the voltage range.
03. When reversing, the polarity of the battery is reversed (+), (-), which may damage the protection circuit and the battery.
Please do not do so.
04. If high temperature occurs during charging, immediately stop charging and discharging, separate the battery from the charger, and contact us.
05. Charge the battery using a dedicated charger and charge it under the specified charging conditions.
06. The charging current and voltage must be lower than the maximum charging current and voltage specified for the product.
07. When storing for long periods of time, such as 2 months or more, store it with a charge of about 70-80%.
08. Lithium batteries are dangerous when charged for a long time, so remove the battery after charging is complete.
09. Please stop charging when you are away.
10. The charger is an additional purchase product.
11. The charging time must be appropriately controlled.
Disposal Guidelines
01. Do not throw away used batteries carelessly.
02. When disposing, do not incinerate or throw them into fire.
The heat may cause an explosion or fire.
03. Do not throw away batteries with household waste.
Separate and recycle them.
04. When disposing of secondary cells or batteries, separate cells or batteries with different electrochemical systems.
05. Dispose of them in a discharged state to prevent the battery from overheating due to short circuits.
