Looperget H20

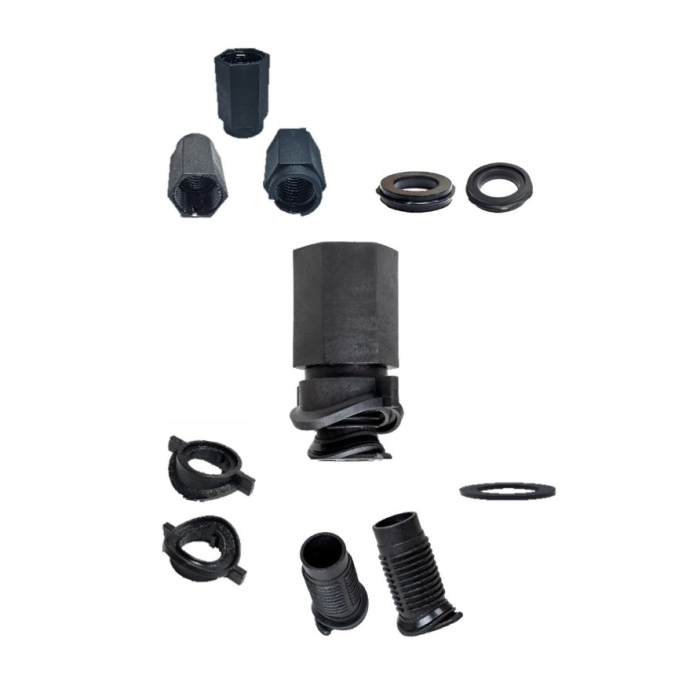

Looperget H20 and H25 are hose-branching devices using 20A and 25A threaded connections, respectively. After punching a hole, simply insert the product into the hole and tighten the nut by hand to complete the installation. The built-in rubber component ensures a leak-proof and secure connection, providing stable performance even in high-pressure environments. This product is designed for optimal performance in agricultural hose systems and is compatible with various hose sizes.
Key Features:
20A and 25A threaded connection for hose-branching
Easy installation with a secure rubber component
Reliable performance even under high pressure
Compatible with various hose sizes
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 5,120 Pieces
Product Summary
• Brand name (Company/Brand name) Shinjin Chemtech Co., Ltd. / Looper Jet
• Type (Type) H20
• Material (Material) Plastic (Nylon), Rubber (EPDM)
• Size/Dimension (Size) Width 52mm × Length 40mm × Height 67mm
• Weight (Weight) 45.7g, Tolerance Rage ±1.0g
• Usage (Usage) For soft pipes
• Application (Usage location) Hose punching surface
• Color (Color) Black
• Feature (Feature) 15mm punching hole
• Warranty (Warranty period) 6 months after purchase
• Certification (Certification)
Detailed Description

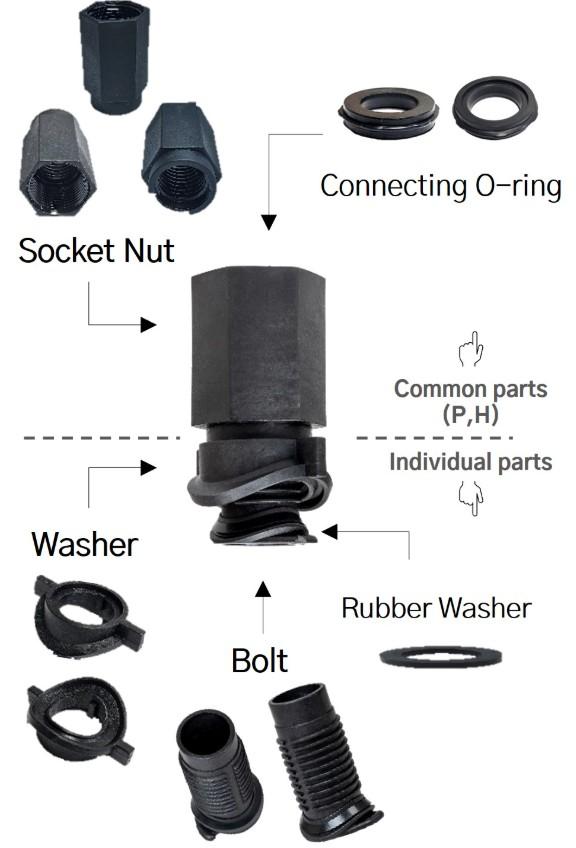

Summary of Connection Methods and Design Principles
Bolt and Adhesive Method: A fixing method using threaded bolts and rubber washers.
Pipe Curvature Consideration Design: The bolt head and washer design are tailored to match the curvature.
Minimization of Flow Interference: Reducing flow resistance by minimizing the product occupancy ratio within the pipe.
Summary of Advanced Engineering Principles
Curvature Effects and Load Distribution: Differences in fixing force between planar and non-planar loads.
Stress Distribution at Hole Center and Edges: Mitigation of stress concentration and reduction of shear stress.
Double Sealing Structure (H20, H25): A dual sealing structure achieved by piercing small holes, bending the contact surface, and combining the bent surface with a washer.
Bolt and Nut Fixing Principle: Rotational motion is converted into linear motion, with fixing force generated by the contact between the bolt head and nut surface.
