AR10 -V Series Capacitive Level Meter

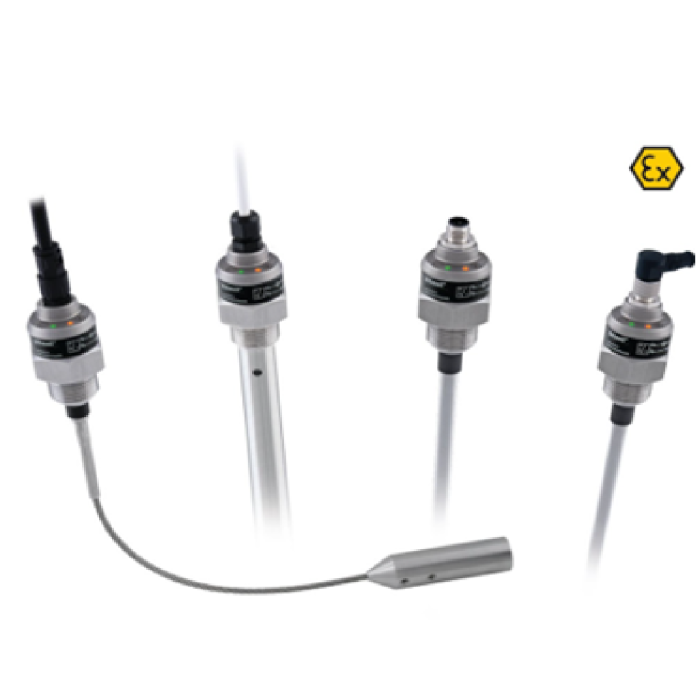

The electronic module converts the level measurement into either a current signal (4-20 mA) or a voltage signal (0-10 V). The AR10-V level meters are available in several variations of measuring electrodes, including rod and rope types. These electrodes can be coated with an insulating layer for measuring levels of adhesive, aggressive, or electrically conductive media.

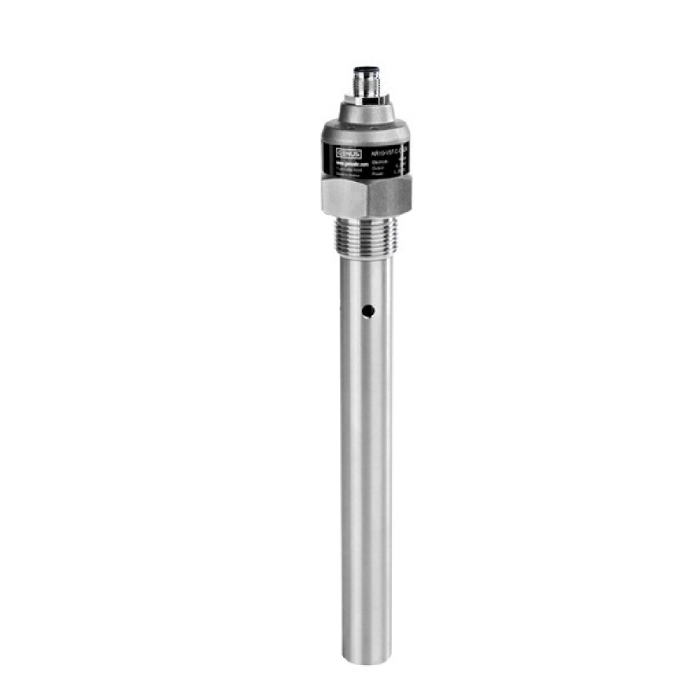

Rod electrodes are also available in a version with a reference (coaxial) tube, designed for level measurement of liquids in tanks made from non-conductive materials.
The level meters are offered in the following performance versions:
N: For non-explosive areas
NT: High-temperature version for non-explosive areas
Xi: Explosion-proof, intrinsically safe for hazardous (explosive) areas
XiM: Explosion-proof, intrinsically safe for use in mines with methane or flammable dust hazards (see technical specifications)
High-temperature versions such as NT, XiT, and XiMT are also available.
The AR10-V is available with various types of process connections, including metric and pipe threads, as well as NPT pressure threads
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Units
Product Summary
• Brand name: GENUS
• Model Number: AR10-V
• Material: Housing: Stainless Steel /
Electrodes: Stainless Steel (with optional insulating coating for aggressive or conductive media)
• Usage: Continuous level measurement of liquids and bulk solids in various industries.
• Application: Suitable for tanks, vessels, sumps, silos, hoppers, and other similar applications in non-explosive and hazardous environments.
Detailed Description
Main Features
-
Continuous Level Measurement: The AR10-V accurately measures the continuous level of liquids and bulk solids in tanks, vessels, sumps, chambers, hoppers, etc.
-
Accurate Conversion: The sensor converts the measured volume into a current signal (4 ... 20 mA) or a voltage signal (0 ... 10 V) and transmits it to the process control system.
-
Various Electrode Options: A wide range of measuring electrodes are available, including rod and rope electrodes, which feature an insulating coating. Level measurement in adhesive, aggressive or electrically conductive media is possible.
-
Use in high temperatures and explosion hazard areas: A high-temperature version (NT) and an explosion-proof and seismic version (XiM) for use in explosion hazard areas are available.
-
High durability: A wide range of performance versions for high temperatures, explosion protection and seismic protection ensure reliable performance even in demanding industrial environments.
Product details
-
Housing material: Stainless steel
-
Electrode material: Stainless steel (optional insulating coating available, suitable for aggressive or conductive media)
-
Areas of application: Liquid and bulk fluids in various industries Suitable for continuous level measurement of solids
-
Areas of application: Tanks, vessels, channels, chambers, hoppers and other applications in non-explosive and hazardous environments
Basic technical specifications
-
Supply Voltage
-
AR10 N(T)– __ _ I: 9... 34 V DC
-
AR10 N(T)– __ _ U: 12... 34 V DC
-
-
Output Signals
-
Current output (Current Output): 4... 20mA (2-wire)
-
Voltage Output: 0... 10V (3-wire)
-
-
Power Consumption: 3.75... 20.5mA
-
Non-Linearity: Max. 1%
-
Temperature Error: Max. 0.05%/K
-
Voltage Error for Current and Voltage Output: Max. 0.3 μA/Va, 0.1mV/V
-
Leakage Resistance: 1 MΩ / 200 V DC
-
Coupling Capacity
-
Housing-Power: 50 nF / 350 V AC
-
Electrode-Power: 47 nF / 350 V AC
-
-
Ambient Temperature Range: -40... +85°C
-
Protection: IP67 / IP68
-
Maximum Load Resistance for Current Output: 700Ω (at U = 24V)
Physical Properties
-
Weight
-
Excluding electrodes: approx. 0.3kg
-
Cable version (including cable guard): approx. 0.6kg
-
-
Cable
-
Version N: PVC 3x0.5mm
-
Version Xi: 2x0.75mm
-
Options and Versions
-
N: For non-explosion areas
-
NT: High-temperature version for non-explosion areas
-
Xi: Explosion- and seismic-proof devices for explosive areas
-
XiM: Explosion- and seismic-proof devices for mines containing methane or combustible dust
Process Connection Options
The AR10-V offers a variety of process connection options, including metric thread, pipe thread, and NPT pressure thread. .
AR10-V is a high-performance device for reliable continuous level measurement and is used in various industrial fields. The product guarantees accuracy, durability, and stable performance in various environments, and provides customized options to meet customer needs.
