• Product name : Electric Patient Lift
• Brand name : Man&Tel co., ltd
• Type : Electric Patient Lift
• Model Number : ML-10
• Usage : Electric patient lift giving care partner convenience and stability to the patient when patient move to wheel chair, bed and bathroom from the floor.
• Material : Metals and Alloys
• Size/Dimension : 650(W) X 1,200(L) X 1,900(H)mm
• Shelf Life : -
• Feature
- Able to move patient to bed and wheel chair from floor
- Full charge able to use 75 times
- When using charging system, not needed
- AC power
- Very strong steeliness(Safe weight loading 120kg)
- Height adjustable using remote control unit
- Adjustable range of height to move patient(0~770mm)
- Dual purpose lifting sling to use for cervical vertebral
- Folded type for easy storage and move
- Measurement of weight(option)
• Warranty : 1 year charge free warranty, 5 years with payment
• Certification
- KFDA Manufacture Registered No. 3399
- KGMP Certificated
- ISO13485 Certificate

1. Usage

- Electric patient lift giving care partner convenience and stability to the patient when patient move to wheel chair, bed and bathroom from the floor.
- Convenient device for the physically challenged, hemiplegic patient with cervical spine disorders, with thoracic spine disorders, and with mobility difficulties and for the care partners.



2. Features

- Able to move patient to bed and wheel chair from floor
- Full charge able to use 75 times
- When using charging system, not needed
- AC power
- Very strong steeliness(Safe weight loading 120kg)
- Height adjustable using remote control unit
- Adjustable range of height to move patient(0~770mm)
- Dual purpose lifting sling to use for cervical vertebral
- Folded type for easy storage and move
- Measurement of weight(option)



3. Specification

- Size : 650(W) X 1,200(L) X 1,900(H)mm
- Installation place : 1,000(W) X 1,400(L) X 1,950(H)mm
- Product weight : 70Kg
- Max. bearable weight : 120Kg
- Control box Adaptor INPUT : AC 100~240V, 50/60Hz, 58.8W
- Control box Adaptor OUTPUT : DC 29.4V, 2A
- Control box Battery : lithium polymer DC 24V, 4.4[AH]
- Weight machine(option) Battery : 1.5V(AAA) X 2

*Product specifications are subject to change without notice for product improvements

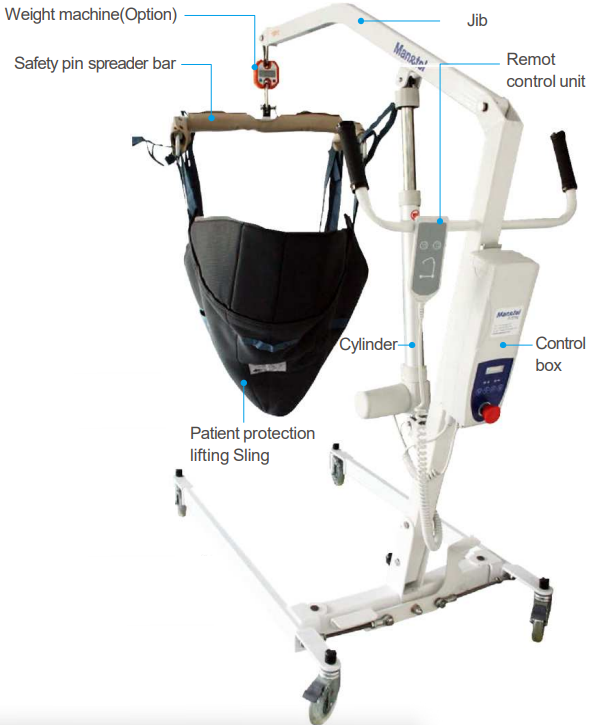

4. Composition

- Control box

- Cylinder

- Battery

- Remote control unit

- Adaptor

- Patient protection lifting sling

- Weight machine(option)



5. Others

- KFDA Manufacture Registered No. 3399
- KGMP Certificated
- ISO13485 Certificated
