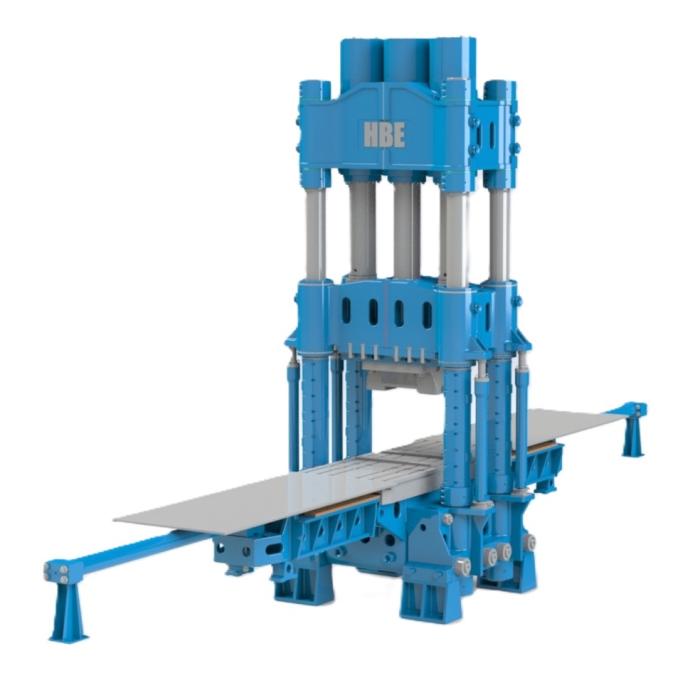

Push Down Open-Die Forging Press

share

Request For Quotation
The Push-Down Open-Die Forging Press is a Heavy Component design and offers single or triple main cylinders. Although general specifications apply to certain tonnage capacity presses, we first ask for the full range of possibilities the costumer expects the press to perform, including, maximum and minimum ingot or billet sizes and lengths, the full range of materials the press is expected to forge, penetration depths required, cogging speeds, and much more. Our offer is based upon the costumer’s expectations and future considerations for work to be placed on the press.
Certification
Award
Shipping
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More
Quantity
MOQ : 1 PLANT

Product Summary

• Product name - PUSH DOWN OPEN-DIE FORGING PRESS
• Brand name - HBE PRESS
• Type - PUSH DOWN OPEN-DIE FORGING PRESS
• Weight - ~ 13000Tons
• Warranty - 1 year

Detailed Description

FLEXIBLE PARAMETERS: •Moving table dimension •Servo valve type •Main pumps manufacturer •Electrical (PLC) manufacture •Electronic controls builder •Ram stroke •Daylight opening •Cogging speed ranges •Forging tonnage force •Upsetting tonnage force •Distance between columns •Hydraulic pressure •Number of die magazine positions •Number of die shift positions •Casting or fabrication



FEATURES: •2 or 4-Column design •1 or 3 Cylinder design •Main Cylinder surface type •Main Cylinder seal type •Ram(slide) material composition •Pre-Stressed columns •Pre-Stressed components •Compressed cylinders •One or three cylinders •Round or square columns



AVAILABLE OPTIONS: •Top or bottom rotating die •Tool area shuttle system •Quick-change die locking system •Ingot push-up turntables •Ingot transfer cars •Two year spare parts packages •Supervised installation & assembly •HBE installation & assembly •Operation & maintenance training
