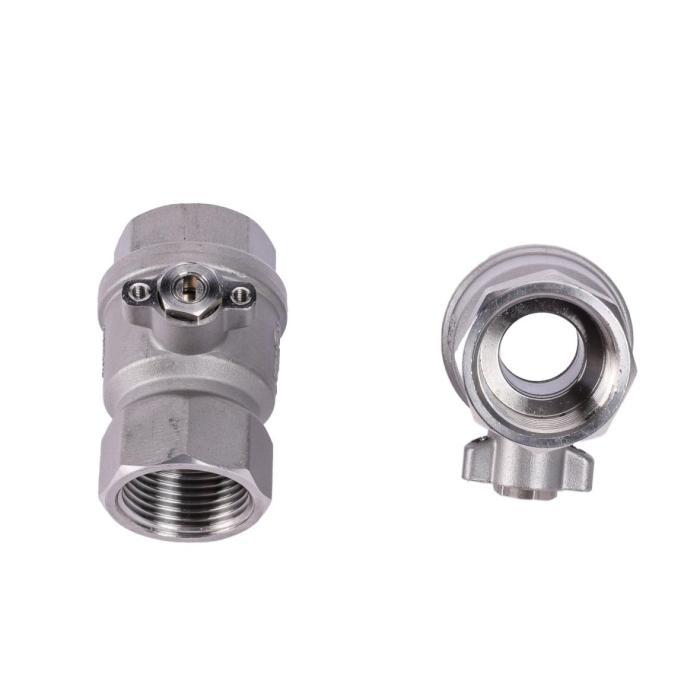

VA25A-2S
Compact and robust ball valve for actuator integration.
Long lifespan with replaceable stem.
- Certification
-
- Award
-
- Shipping
-
- Lead Time10 ~ 14days
- Type of Freight AT,MT
- Modes of Transport CIF,FOB
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
Product Summary
• Brand name (VALCON)
• Type (MOTORIZED ACTUATOR)
• Material ()
• Size/Dimension ()
• Weight ()
• Usage (BALL VALVE)
• Application ()
• Color ()
• Feature (MOTORIZED ACTUATOR)
• Warranty ( )
• Certification ()
Detailed Description
Features:
Compact and robust ball valve for actuator integration.
Long lifespan with replaceable stem.
Suitable for temperature and time control systems.
Technical Specifications:
Model: VA25A-2S
Pipe Diameter: 25 mm (1 inch)
Ball Bore: 20 mm
End Connections: 1" Female PT
Weight: 440g
Max. Operating Temperature: 0°C to 120°C (32°F to 248°F)
Max. Operating Pressure: 10 kgf/cm²
Application Fluid: Non-corrosive liquids and gases.
Compatible Actuators:
AC Power: AC220-50S, AR220-50S, AC220-40ST, AC220-20SC
DC Power: AT Series, A2 Series, AD-S Series
Materials:
Body and Cap: SCS13A, SCS14A
Stem: SUS304, SUS316
Ball: SUS304, SUS316
Ball Seat: PTFE
O-rings: FKM
Stem Replacement:
Easily replaceable with basic tools.
Recommended to replace the stem with the valve closed or fluid flow stopped.
