• Product name AT-2TC()
• Brand name (VALCON)
• Type (MOTORIZED VALVE)
• Material (VALVE)
• Size/Dimension (Size)
• Weight (Weight)
• Usage (Usage)
• Application (Usage location)
• Color (Color)
• Feature (FLUID FLOW CONTROLLER)
• Warranty (Warranty period)
• Certification (Certification)

Features:
Compatible with various ball valve types.
Compact, durable design with a long life cycle.
Equipped with a watchdog for monitoring open/close status.
Manual operation option available.
Automatic closing feature in case of power loss.
Additional temperature and timer settings available.
Technical Specifications:
Control Type: DC forward/reverse and Power ON/OFF.

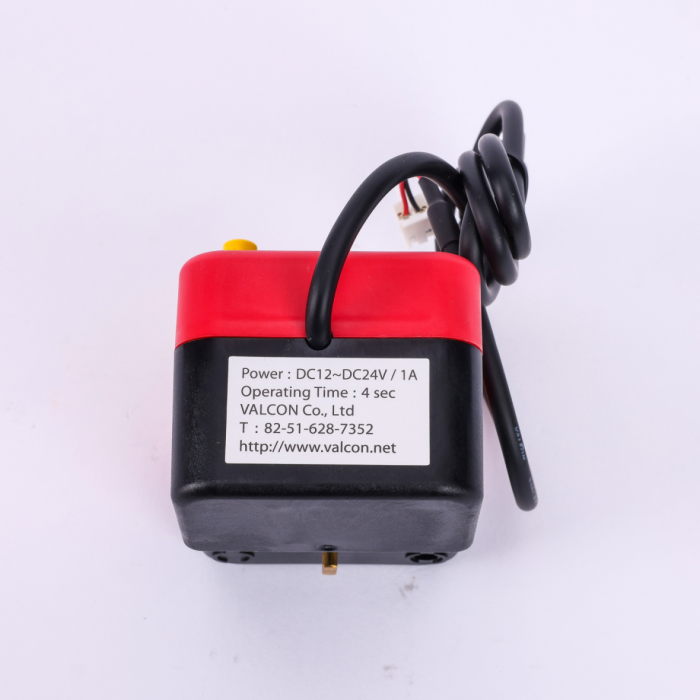

Power Supply: DC 12V - 24V, 1A (Free voltage).
Power Consumption: Approximately 1.3W during operation and 0.2W on standby.
Torque: Maximum output of 40 kgf·cm.
Weight: Around 300g.
Operation Time: 4 seconds for a 90° rotation.
Rotation: Closes clockwise, opens counterclockwise.
Lifespan: Estimated 100,000 cycles.
Operating Environment: Indoor use, -15°C to 50°C, 35-85% RH.
Compatible Ball Valves (Optional):
Sizes available: 15A to 25A, with options in brass or stainless steel.
Operating Temperature: Brass (0°C to 90°C), SUS (0°C to 120°C).
Maximum Operating Pressure: 10 kgf/cm² (142 PSI).
Suitable for non-corrosive liquids and gases.
Connection and Installation:
Two-wire connection (red for positive, black for negative).
Requires an initial 3-minute internal charge upon first use.

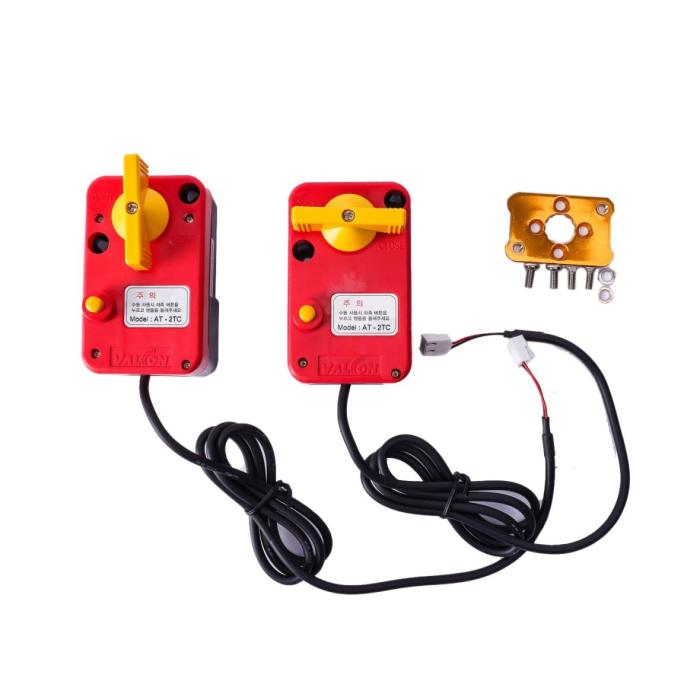

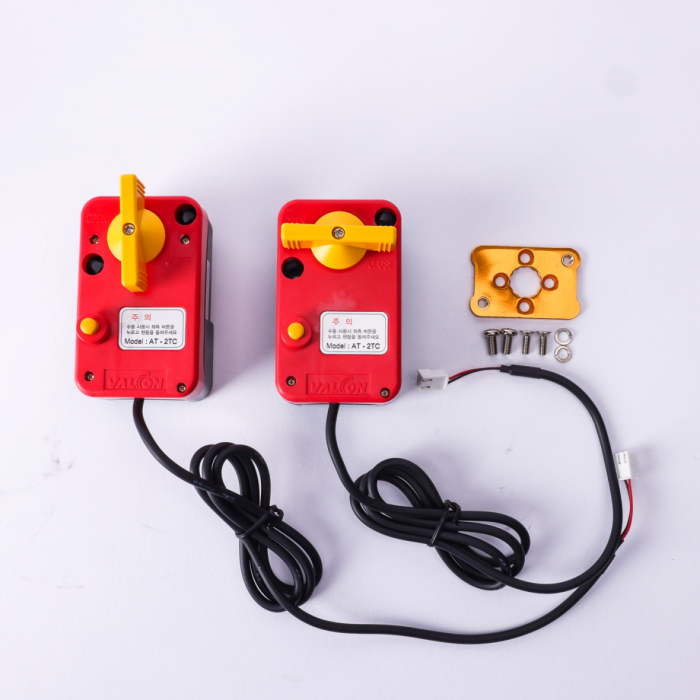

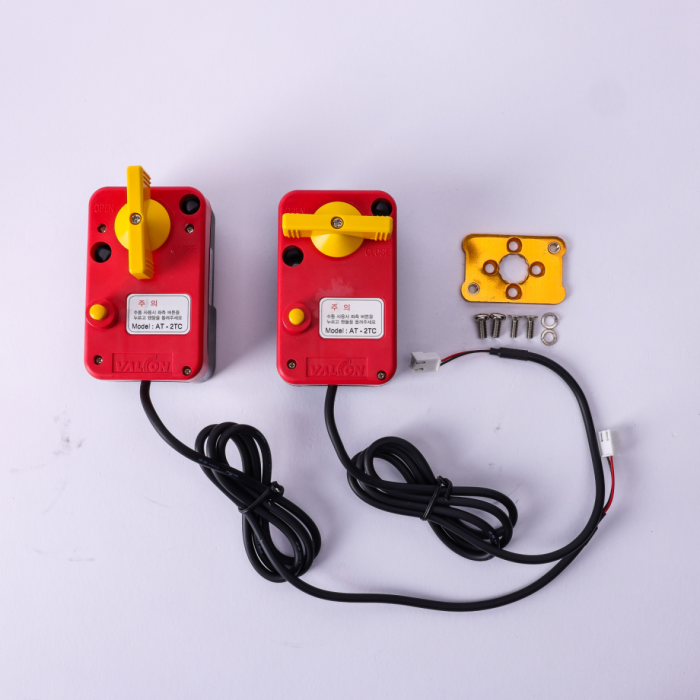

Comes with a manual handle for direct operation and includes mounting bolts and washers for installation.
